61 71 004 Adjusting Windscreen Washer Spray Nozzles

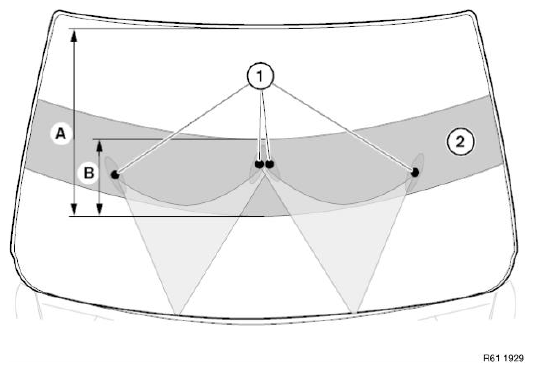

Fig 1: Identifying Windscreen Washer Spray Nozzles Adjusting Dimension

Courtesy of BMW OF NORTH AMERICA, INC.

Mark tolerance range (2) with crepe tape (A=500 mm / B=200 mm).

Actuate washer system.

Contact points (1) must be in tolerance range (2).

If necessary, adjust left or right spray nozzle (1) by way of screw (2).

Fig 2: Identifying Spray Nozzle

Courtesy of BMW OF NORTH AMERICA, INC.
