24 50 010 Replacing emergency actuator

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Remove rear compartment blower. See 64 11 263 REMOVING AND INSTALLING COMPLETE REAR CABIN FAN
Remove air duct under center console.

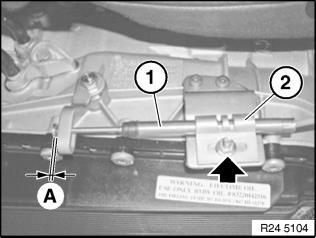

Unfasten nut. Remove cable (1). Installation: Adjust gearshift lever .

Fig 1: Unfasten Nut And Remove Cable

Courtesy of BMW OF NORTH AMERICA, INC.

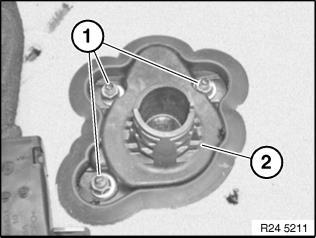

Release screws (1) and remove emergency actuator (2) in upward direction.

Fig 2: Release Screws (1) And Remove Emergency Actuator (2) In Upward Direction

Courtesy of BMW OF NORTH AMERICA, INC.
