17 11 000 Removing and installing radiator (N62TU)
WARNING: This page is about a different variant/trim than selected.
WARNING:
Danger of scalding!
Only perform this work after engine has cooled down.
Only perform this work after engine has cooled down.
IMPORTANT:
Wear protective goggles and gloves.
Necessary preliminary tasks:
- Follow instructions for working on cooling system Instructions For Working On Cooling System .
- Remove fan cowl .
- Drain coolant .
- Unlock coolant hoses and detach.

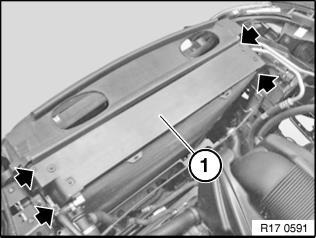

Unfasten screws. Remove cover (1).

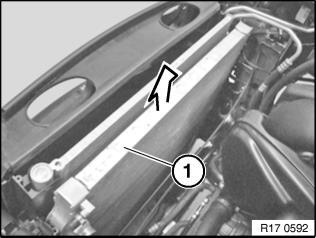

Remove radiator (1) towards top.
