11 28 050 Replacing A/C compressor drive belt (N62TU)

WARNING: This page is about a different variant/trim than selected.

Necessary preliminary tasks:

Remove ALTERNATOR DRIVE BELT .
Remove engine splash guard.

Installation: If reusing the drive belt, mark the direction of rotation and reinstall in the same direction. Check drive belt for coolant and oil residues, replace if necessary.

IMPORTANT: If contaminated with hydraulic fluid: Replace drive belt.

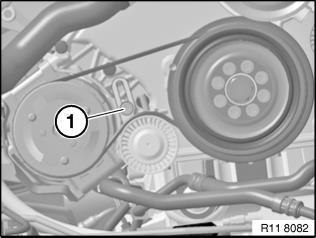

Release screw (1) by 180°.

Fig 1: Release Screw (1) By 180°

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) on tensioning pulley (2).

Fig 2: Release Screw (1) On Tensioning Pulley (2)

Courtesy of BMW OF NORTH AMERICA, INC.

Release tensioning pulley (1) until drive belt can be removed. Remove drive belt (2) towards front.

Fig 3: Remove Drive Belt (2) Towards Front

Courtesy of BMW OF NORTH AMERICA, INC.

Check installation position of drive belt.
