Removal & Installation

WARNING: This page is about a different car, the 2002 BMW Z8, 2001 BMW Z8, and 2000 BMW Z8. However, it is still accessible from the selected car via links, so may be relevant.

Remove lower section of steering column trim. See STEERING COLUMN TRIM (LOWER SECTION) .
Detach instrument panel trim. See Fig 1 .
Remove cap (1). Release screws and remove upper section of steering column trim. See Fig 2 .
To install, reverse removal procedure.

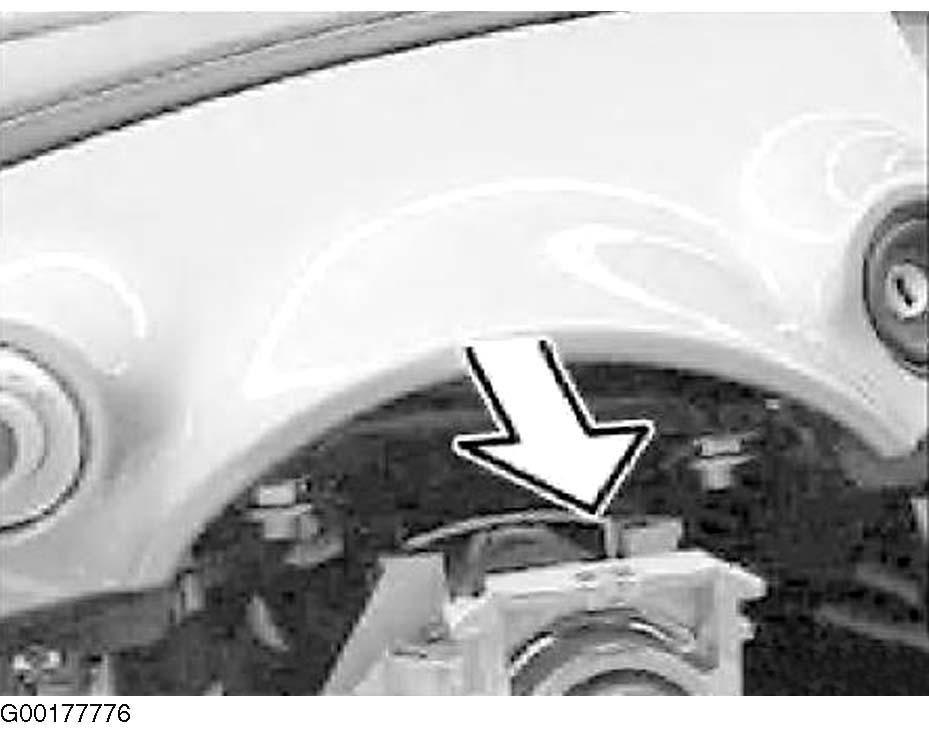

Fig 1: Detaching Instrument Panel Trim

Courtesy of BMW OF NORTH AMERICA, INC.

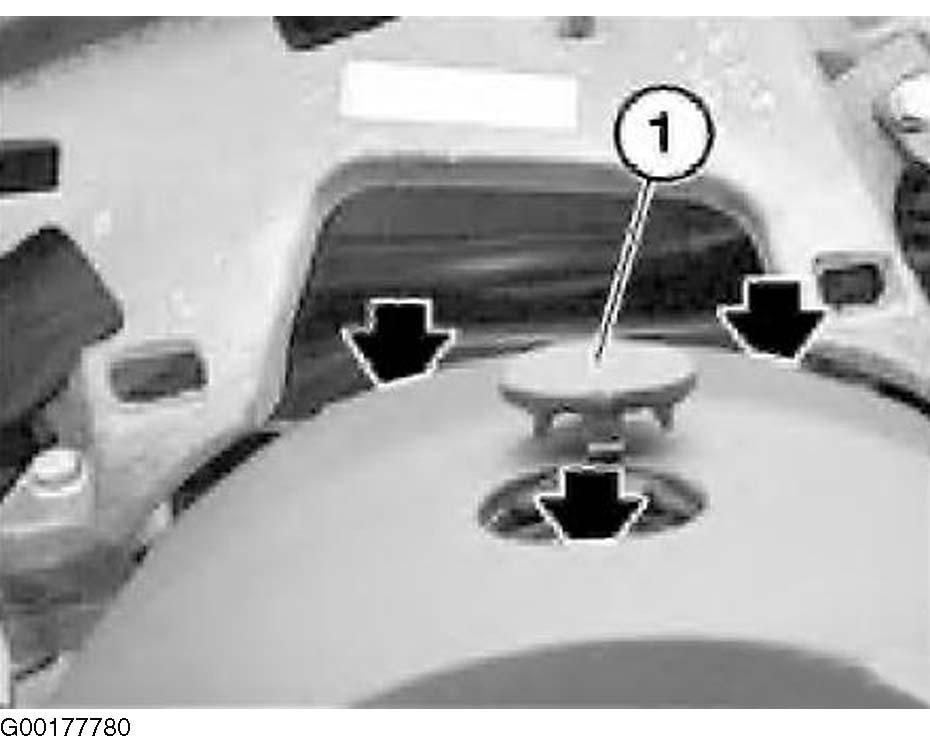

Fig 2: Removing Upper Section Of Steering Column Trim

Courtesy of BMW OF NORTH AMERICA, INC.
