Removal & Installation

WARNING: This page is about a different car, the 2001 BMW M5, 2001 BMW 540i, 2001 BMW 530i, and 2001 BMW 525i. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Insert Plastic Wedge (00 9 323) on both sides of passenger-side air bag cover, release catches, lift cover up and place on instrument panel. Remove air bag module retaining nuts and remove air bag module from instrument panel. See Fig 1. Disconnect Orange air bag module harness connector. Remove air bag cover and cover bracket.
  3. To install, reverse removal procedure. Be careful not to pinch wiring harness. Tighten passenger-side air bag module retaining nuts to specification. See TORQUE SPECIFICATIONS . Activate air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .

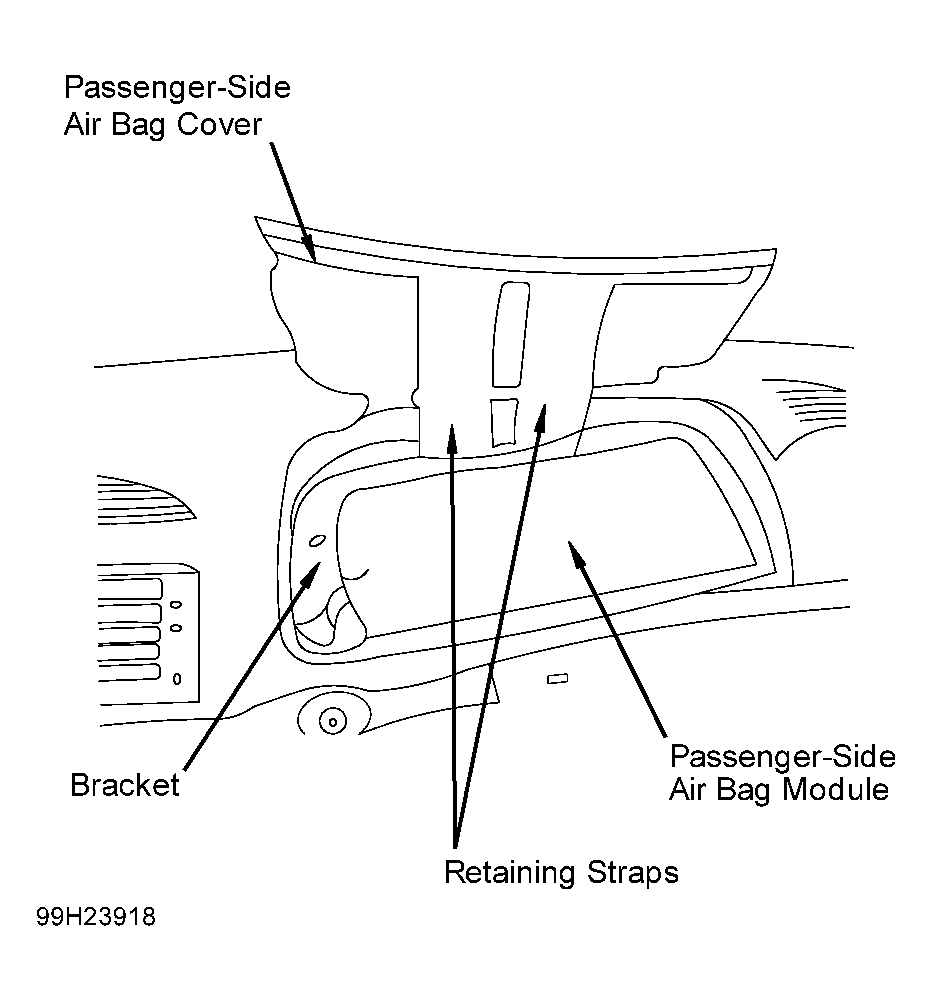

Fig 1: Identifying Passenger Air Bag Module
G99H23918Courtesy of BMW OF NORTH AMERICA, INC.
