61 61 100 Removing and installing/replacing both windscreen wiper arms

Special tools required:

• 61 6 060

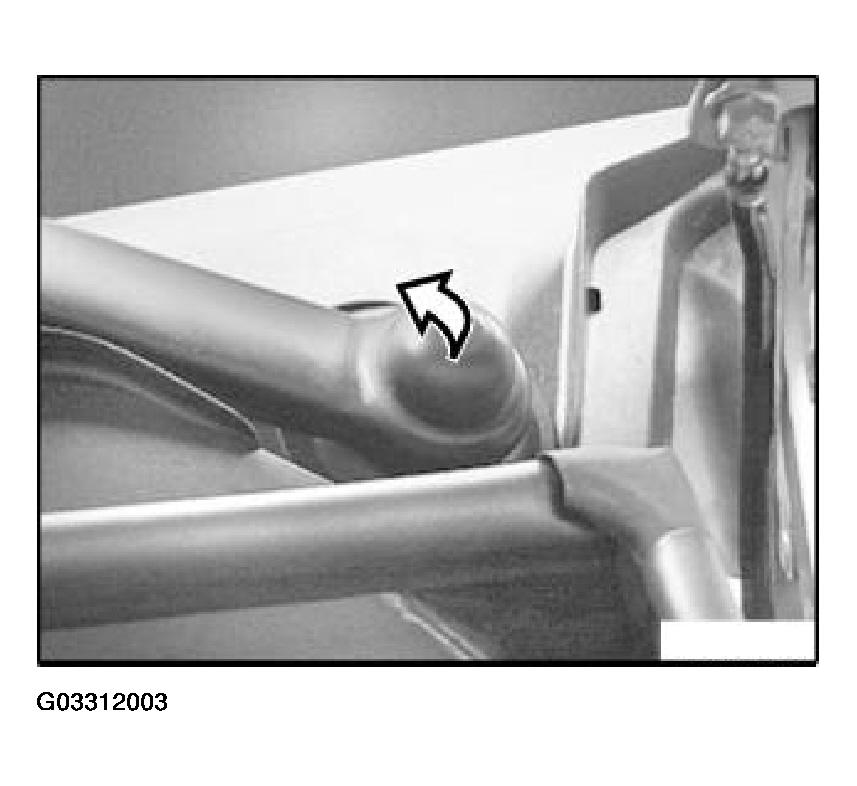

Take off cap.

Fig 1: Taking Off Cap

Courtesy of BMW OF NORTH AMERICA, INC.

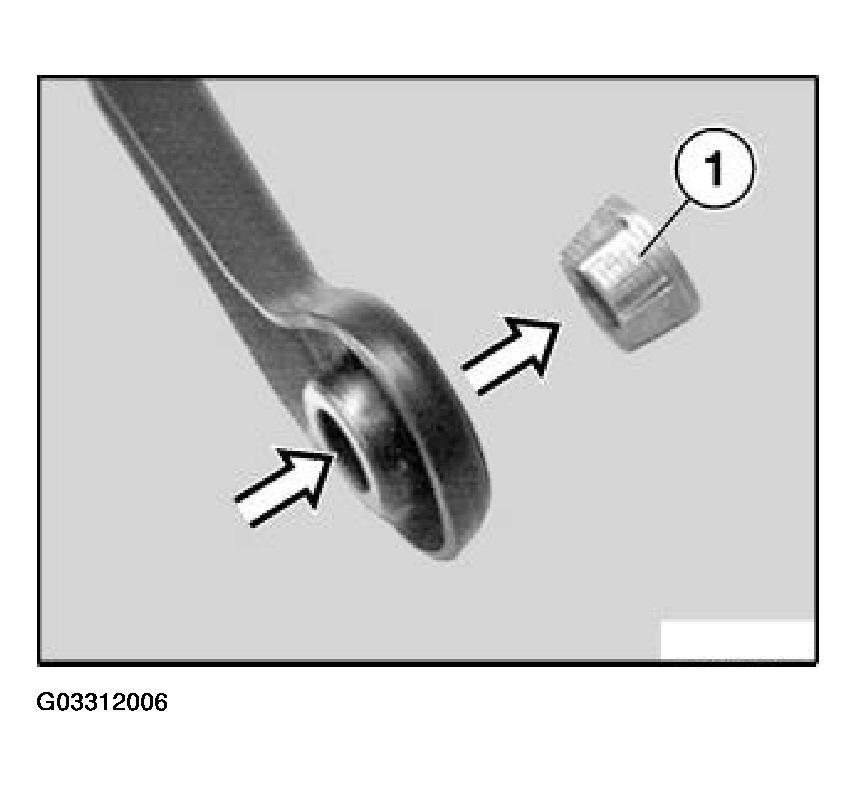

Unfasten nut.

Installation:

Observe tightening torque, 61 61 10AZ. Refer to GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUES .

Fig 2: Unfastening Nut

Courtesy of BMW OF NORTH AMERICA, INC.

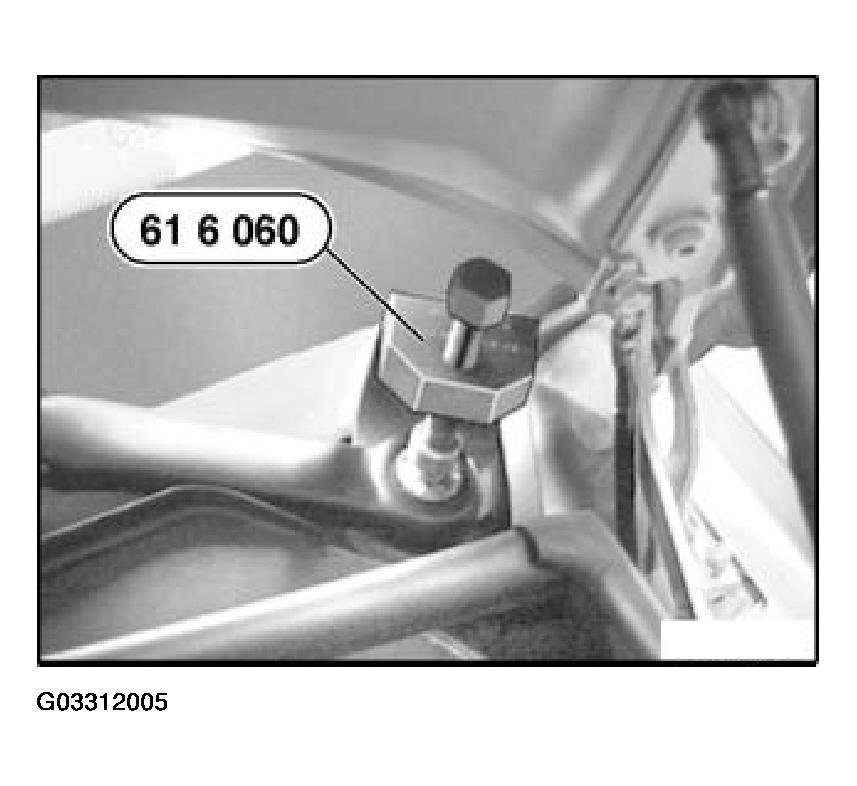

Detach windscreen wiper arm with special tool 61 6 060.

Fig 3: Detaching Windscreen Wiper Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

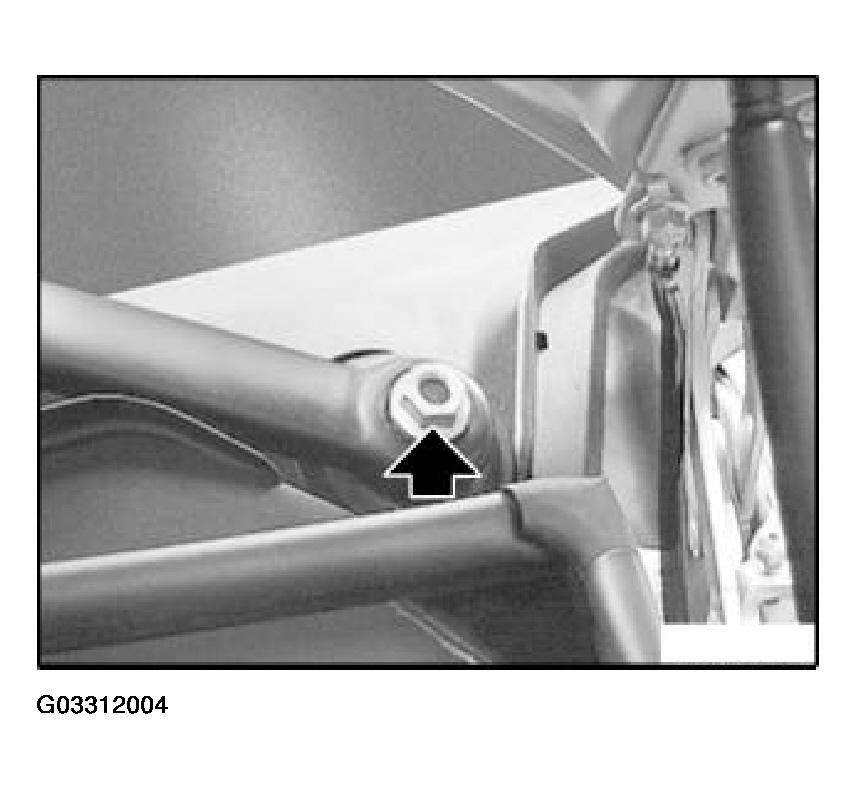

Check that sleeve (1) is firmly seated.

Fig 4: Checking Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

If sleeve (1) is loose, it must be replaced.

A sleeve (1) firmly seated in the windscreen wiper arm can be reused.

Windscreen wiper arm with firmly seated sleeve (1):

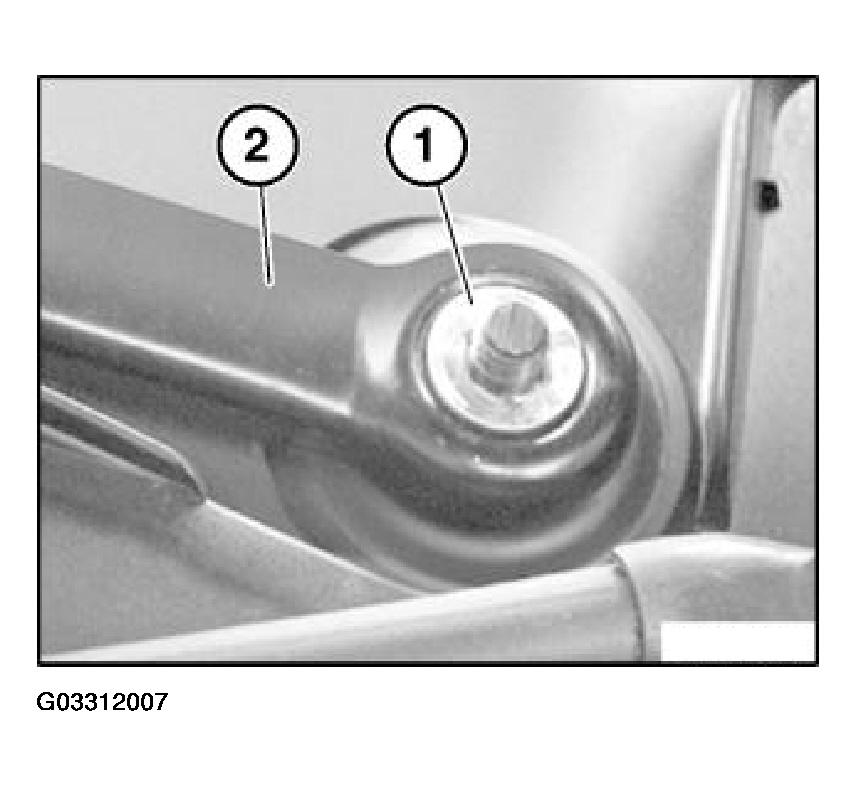

Return wiper system to rest position. Push wiper arm (2) with firmly seated sleeve (1) onto shaft and tighten down.

Observe tightening torque, 61 61 10AZ. Refer to GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUES .

Check setting of wiper arm (2).

To correct setting, replace sleeve (1).

Fig 5: Installing Wiper Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Windscreen wiper arm with new sleeve (2):

Return wiper system to rest position.

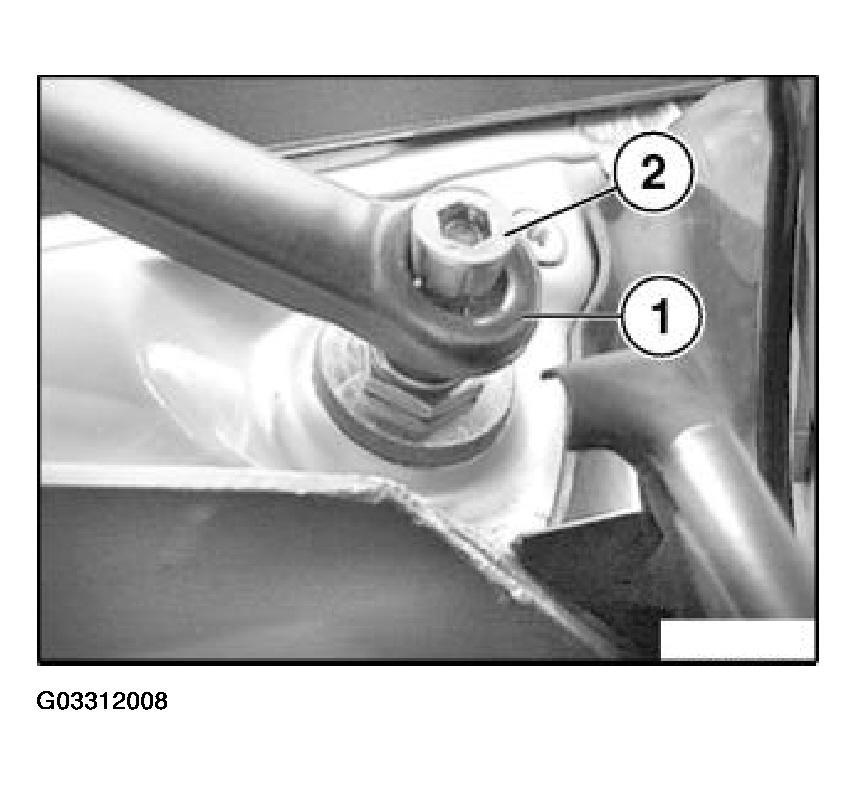

Push wiper arm (1) with sleeve (2) onto shaft and tighten until hand-tight.

Fig 6: Installing Wiper Arm

Courtesy of BMW OF NORTH AMERICA, INC.

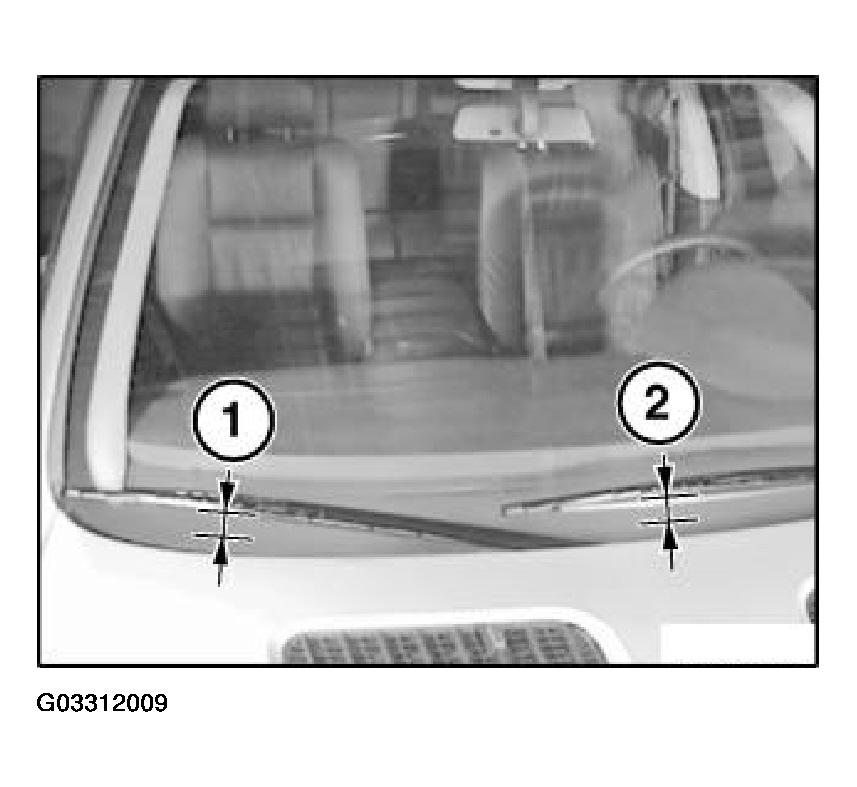

Adjust position of wiper arm in question in rest position (measured between wiper lip and top edge of cowl panel cover).

Then tighten down wiper arm and check position of relevant wiper arm again.

Fig 7: Identifying Position Of Wiper Arm

Courtesy of BMW OF NORTH AMERICA, INC.

1. 66 +/- 1.5 mm
2. 61 +/- 1.5 mm

Observe tightening torque, 61 61 10AZ. Refer to GENERAL ELECTRICAL SYSTEM - TIGHTENING TORQUES .
