61 61 041 Replacing both windscreen wiper blades

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Move wipers into fold -back position:

Switch on terminal "R".
Actuate wiper control lever and bring wiper arms to a stop in vertical position (fold -back position) by switching off terminal "R".
Remove ignition key from ignition switch.

Fold back wiper arm (3).

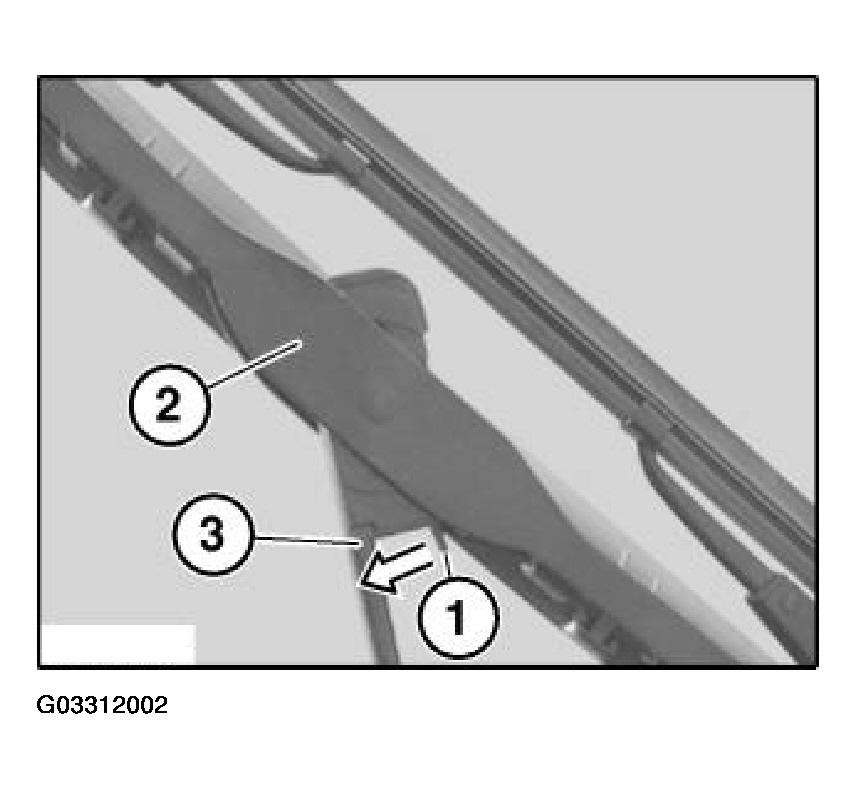

Fig 1: Removing Wiper Blade

Courtesy of BMW OF NORTH AMERICA, INC.

Press locking spring (1) in direction of arrow. Pull wiper blade (2) to wiper arm (3) and feed out.

Installation:

Install new wiper blade and snap into place.

Fold wiper arms to windscreen.

IMPORTANT: Before switching on terminal "R" or the ignition or starting the engine, you must fold the wiper arms onto the windscreen otherwise damage will be caused.

Switch on terminal "R".

Set wiper system to rest position by flick-wiping.
