61 71 015 Removing and installing/replacing a jet nozzle in windshield washer system

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The jet nozzles of the windshield washer system are preset at the factory and cannot be readjusted.

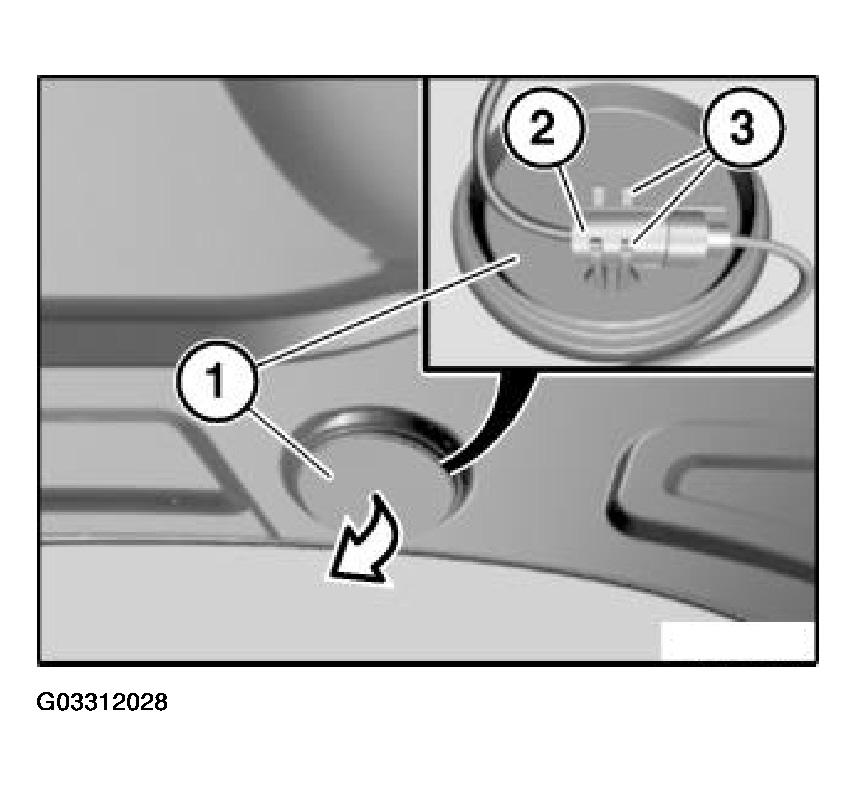

Lever out sealing plug (1) in direction of arrow.

Fig 1: Removing Sealing Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip, unlock and disconnect plug connection (2) behind.

Installation:

Make sure plug connection (2) is correctly seated in mounting (3).

Ensure correct installation position (mounting (3) at top) and correct seating of sealing plug (1).

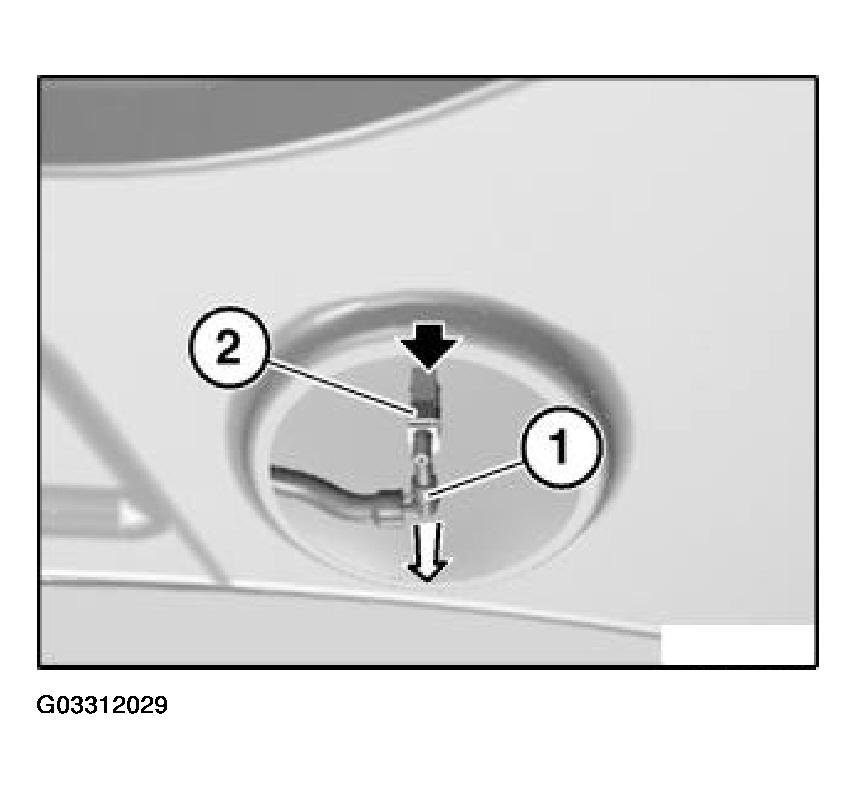

Detach connector (1) in direction of arrow from nozzle of windshield washer system (2).

Fig 2: Unlocking Spray Nozzle

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock spray nozzle (2), press out through opening and remove.

Installation:

Make sure nozzle of windshield washer system (2) is correctly seated.

Ensure hose is laid without kinks.
