61 31 310 Replacing brake light switch

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TRIM PANEL FOR PEDAL ASSEMBLY .

Unfasten plug connection (1) and disconnect.

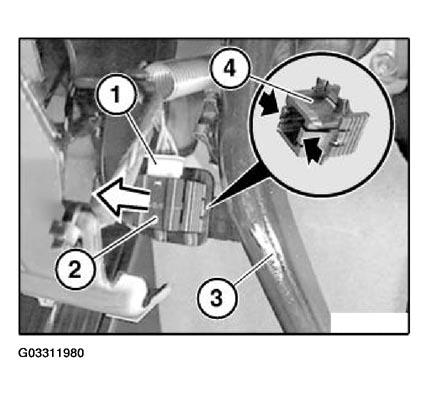

Fig 1: Removing Brake Light Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Pull brake light switch (2) in direction of arrow out of brake light switch holder (4).

Installation:

Press brake pedal (3) to floor.
Slide brake light switch (2) as far as it will go into brake light switch holder (4).
Grip brake light switch holder (4), slowly return brake pedal (3) to starting position and pull back to stop.

NOTE: Removing brake light switch holder (4):
Press brake pedal (3).
Press catches together and unclip brake light switch holder (4) from brake pedal (3).
