61 31 299 Removing and installing/replacing clutch switch module

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TRIM PANEL FOR PEDAL ASSEMBLY .

NOTE: Clutch master cylinder (2) is removed for purposes of clarity.

Lever out clutch switch module (1) from clutch master cylinder (2) with screwdriver.

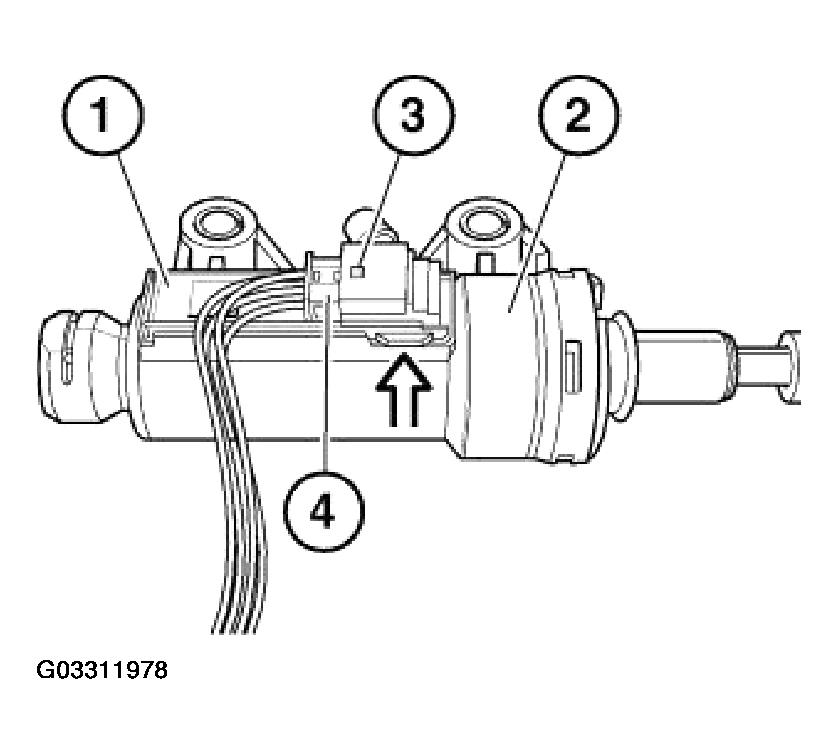

Fig 1: Removing Clutch Switch Module

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug (4) and disconnect from housing (3).

Installation:

Clutch switch module is protected against incorrect installation.

Clutch switch module must snap audibly into place.

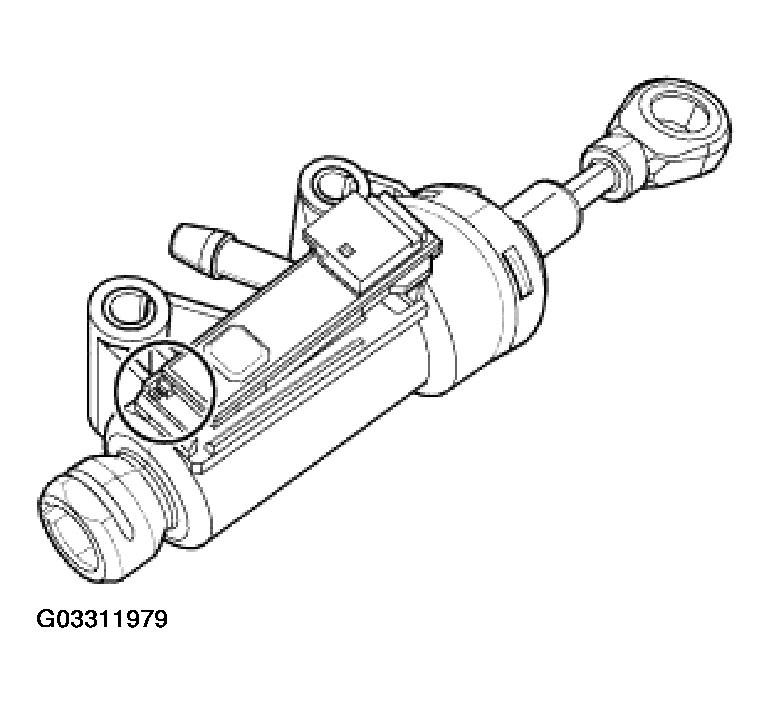

Fig 2: Installing Clutch Switch Module

Courtesy of BMW OF NORTH AMERICA, INC.
