61 31 228 Replacing switch on sports steering wheel

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove STEERING WHEEL

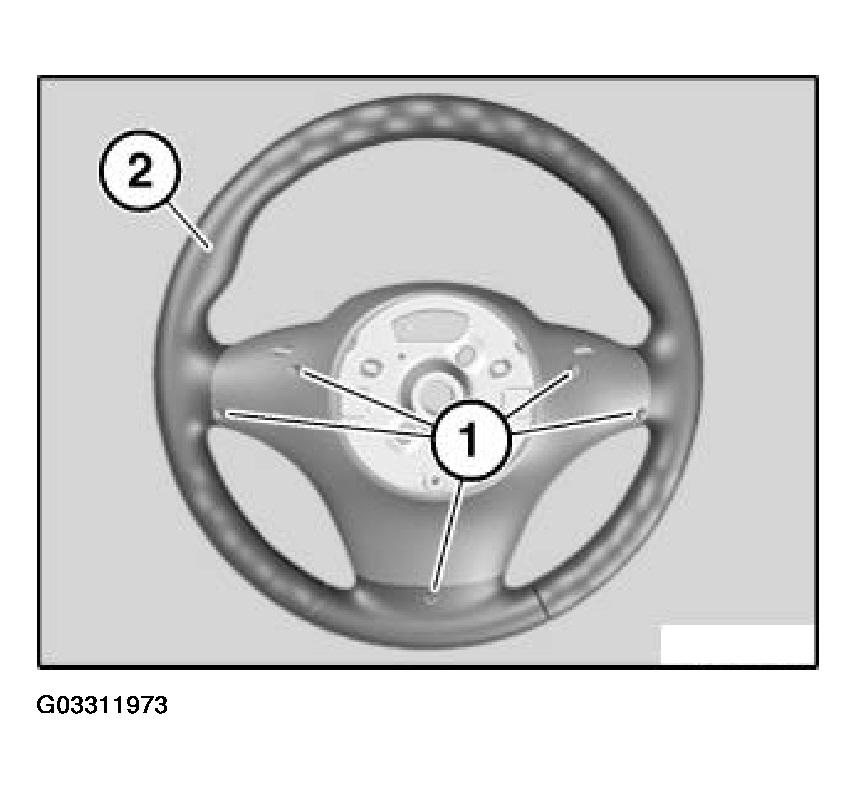

Release screws (1) on sports steering wheel (2).

Fig 1: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

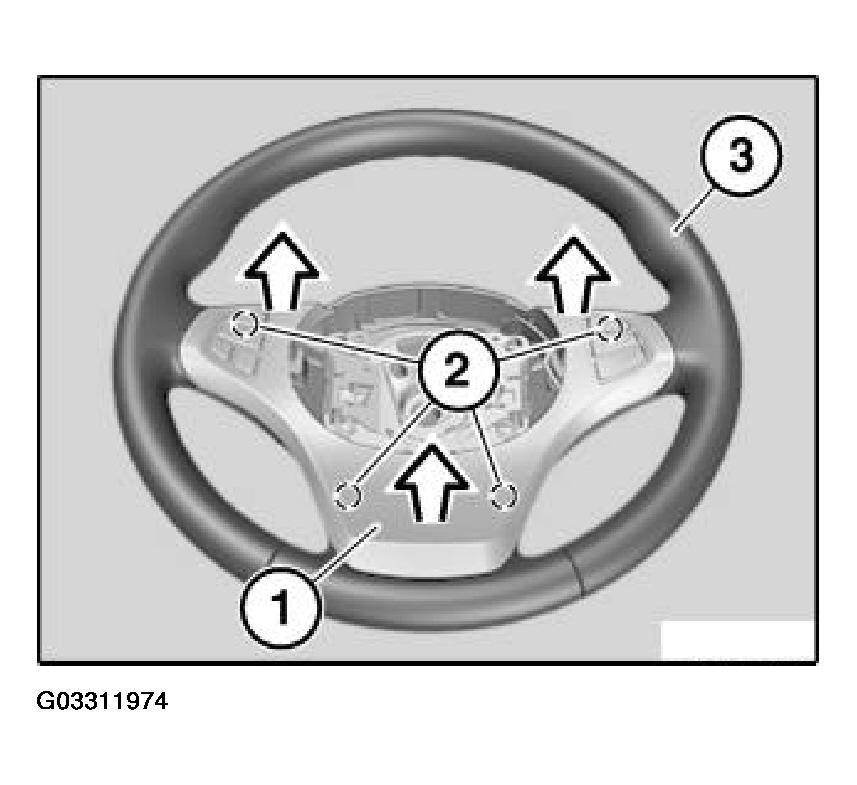

Unclip complete trim (1) in direction of arrow from mountings (2) and remove from sports steering wheel (3).

Fig 2: Removing Complete Trim

Courtesy of BMW OF NORTH AMERICA, INC.

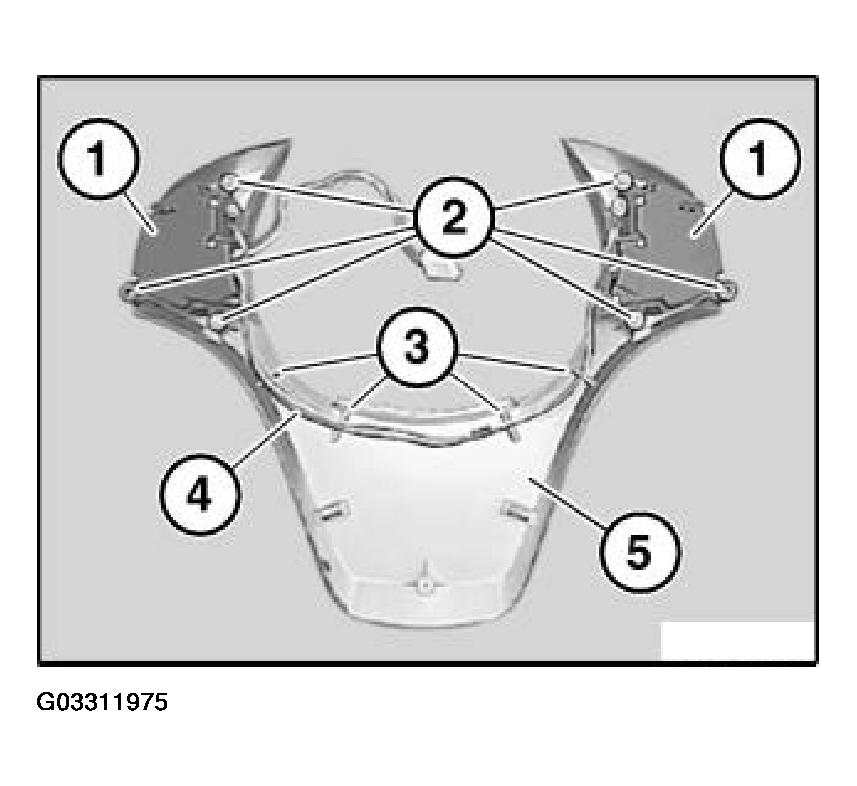

Loosen screws (2).

Remove both switches on sports steering wheel (1) together from trim (5).

Fig 3: Removing Both Switches On Sports Steering Wheel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure wiring harness (4) is correctly laid in associated mountings (3).
