61 31 225 Replacing switch on impact cushion for left and right herbages

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove AIRBAG unit, refer to STEERING WHEEL

Disconnect plug connections (1).

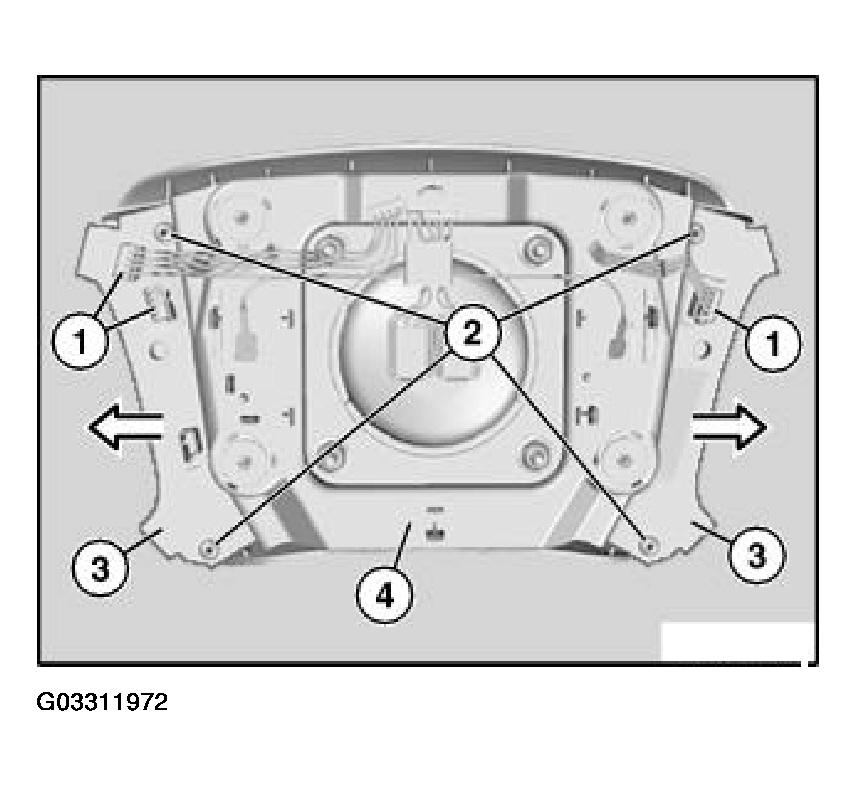

Fig 1: Removing Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (2).

Feed out switch on impact cushion for AIRBAG (3) in each case in direction of arrow from AIRBAG unit (4) and remove.
