61 31 176 Removing and installing/replacing emergency call button

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Press catches (1) and unclip emergency call button (2) in direction of arrow from front roofliner trim (3).

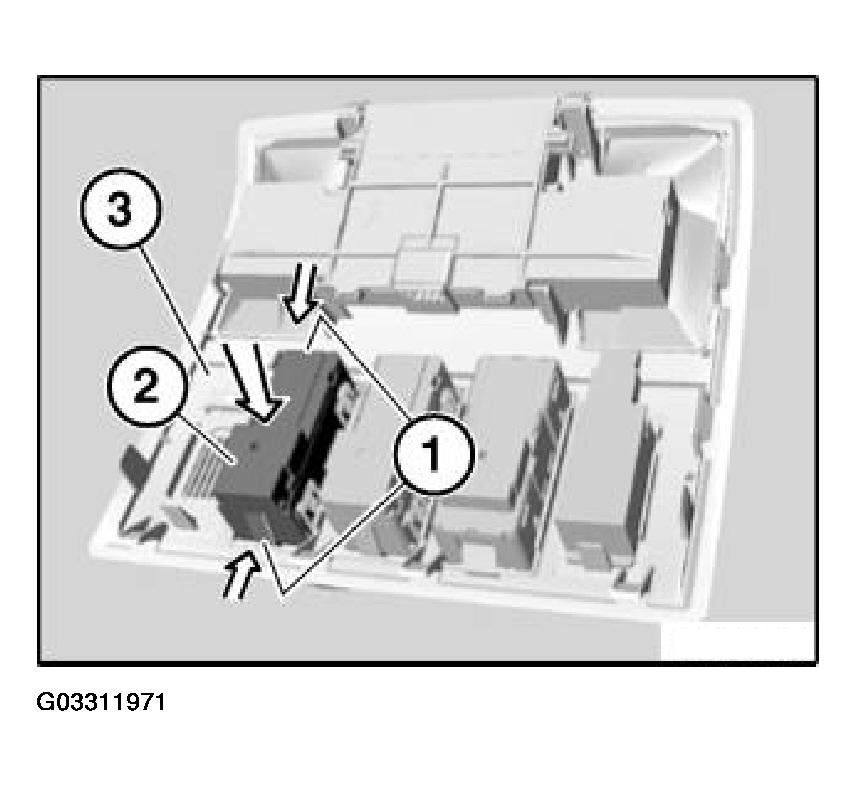

Fig 1: Removing Emergency Call Button
G03311971Courtesy of BMW OF NORTH AMERICA, INC.
