61 31 116 Replacing rocker switch for side window operation (rear)

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

IMPORTANT: Comply with the following work steps in order to avoid damaging the door trim panel and rocker switch.

To avoid damaging leather armrests, wrap front end of special tool 00 9 317 in fabric adhesive tape.

Procedure:

Slide special tool 00 9 317 under rocker switch for side window operation (1) (do not lift the switch in the process).
Slide rocker switch (1) with special tool 00 9 317 towards rear and lever out.

Feed rocker switch (1) out of rear door trim panel (2) and disconnect plug connection.

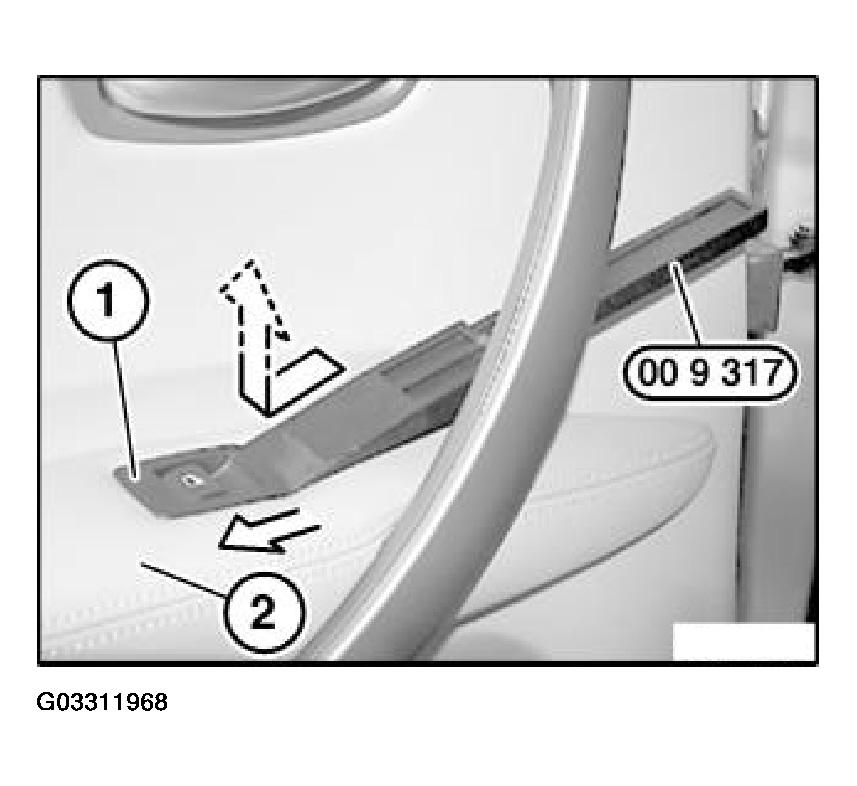

Fig 1: Removing Rocker Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Retaining hooks (1) of rocker switch for side window operation (2) must not be damaged.

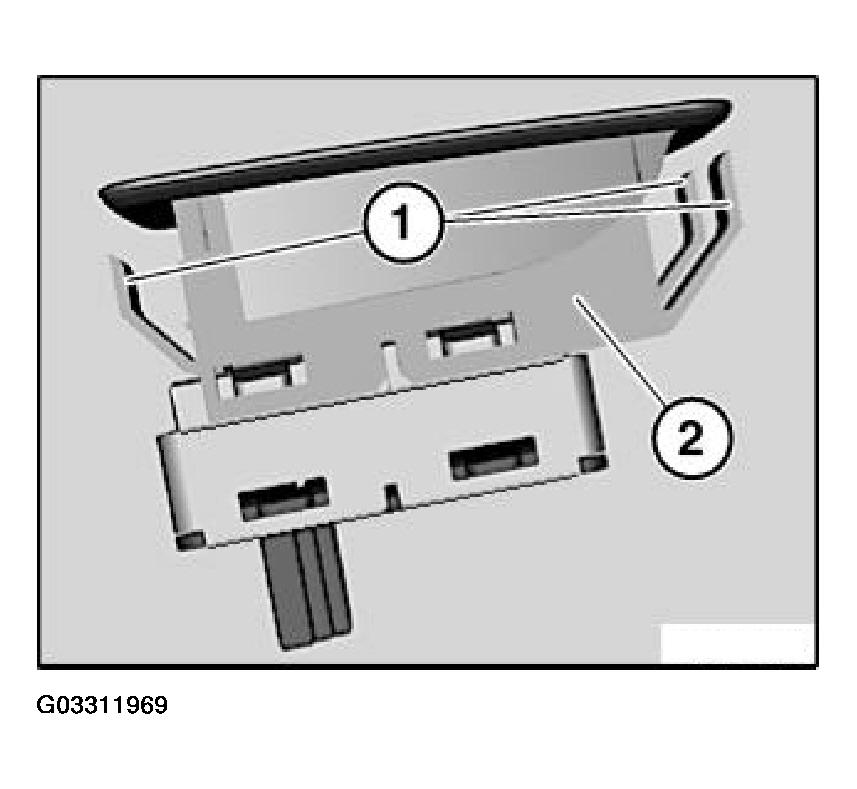

Fig 2: Locating Retaining Hooks Of Rocker Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Make sure rocker switch for side window operation (2) is correctly seated.
