61 31 079 Removing and installing/replacing switch for hazard warning flashers/central locking

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Lever out switch for hazard warning system/central locking (1) with special tool 64 1 020 and pull back.

Disconnect associated plug connection and remove switch for hazard warning system/central locking (1).

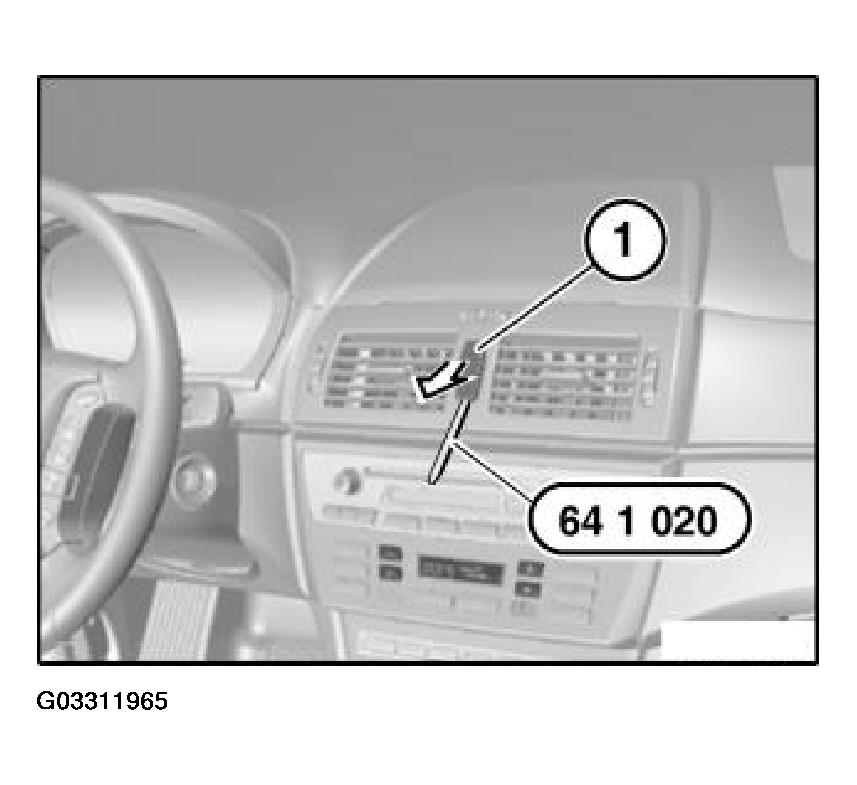

Fig 1: Removing Switch
G03311965Courtesy of BMW OF NORTH AMERICA, INC.
