61 31 069 Removing and installing/replacing indicator for front passenger AIRBAG deactivation

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Press locks (1) and unclip indicator for front passenger AIRBAG deactivation (2) in direction of arrow from front roofliner trim (3).

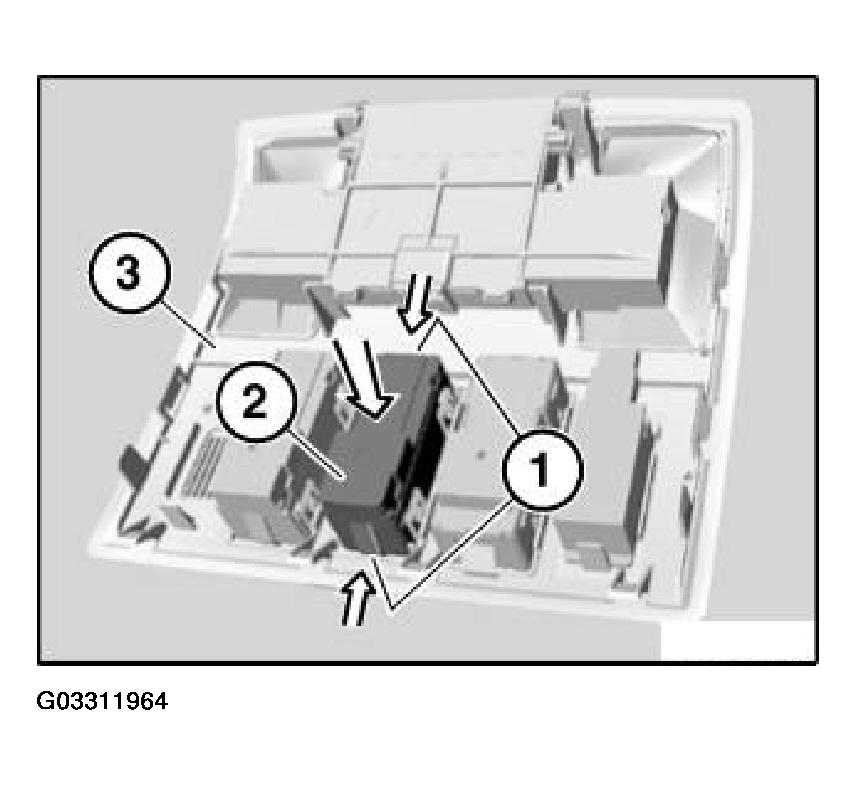

Fig 1: Unclipping Indicator For Front Passenger AIRBAG Deactivation
G03311964Courtesy of BMW OF NORTH AMERICA, INC.
