61 31 057 Removing and installing/replacing switch unit in center console

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove OPERATOR UNIT FOR HEATER/AIR CONDITIONER

Press out switch unit in storage tray (1) in direction of arrow.

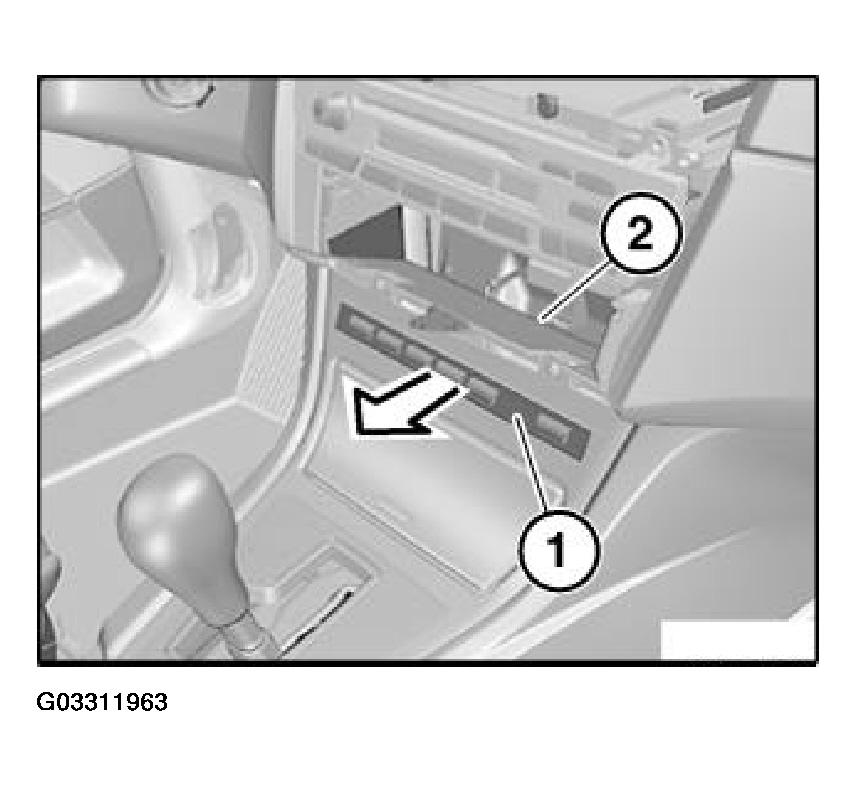

Fig 1: Pressing Out Switch Unit In Storage Tray

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect associated plug connection (2), remove switch unit in storage tray (1).
