61 31 037 Removing and installing/replacing light control unit

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 341

Necessary preliminary tasks:

Remove LEFT FRESH-AIR GRILL

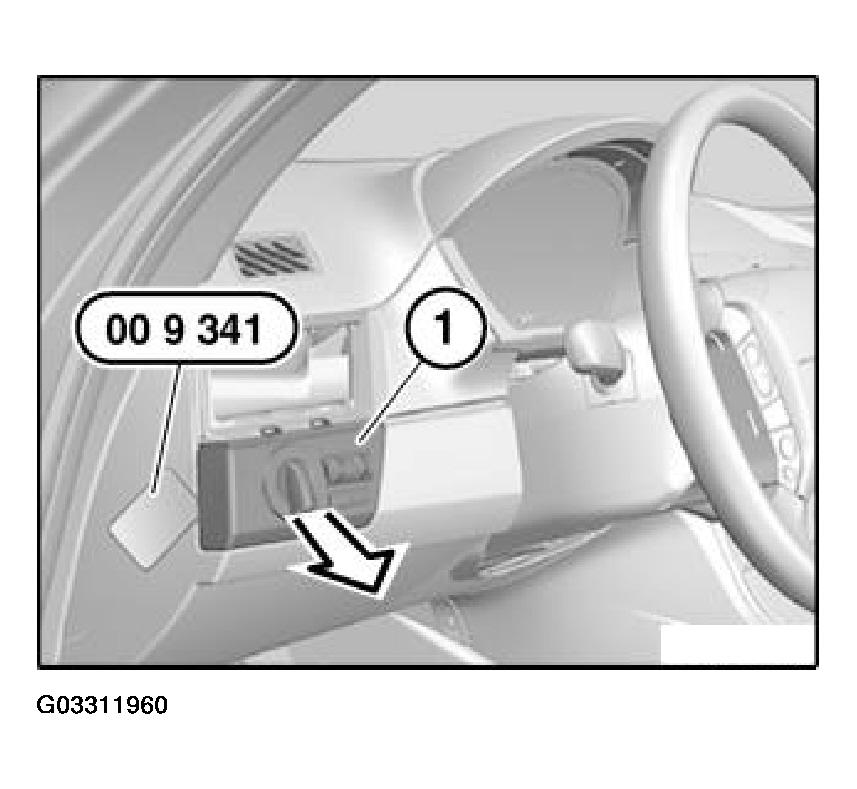

Fit special tool 00 9 341 at side as illustrated.

Fig 1: Removing Lighting Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out lighting control unit (1) all round.

Unlock and disconnect associated plug connection, remove lighting control unit (1) in direction of arrow.

Replacement:

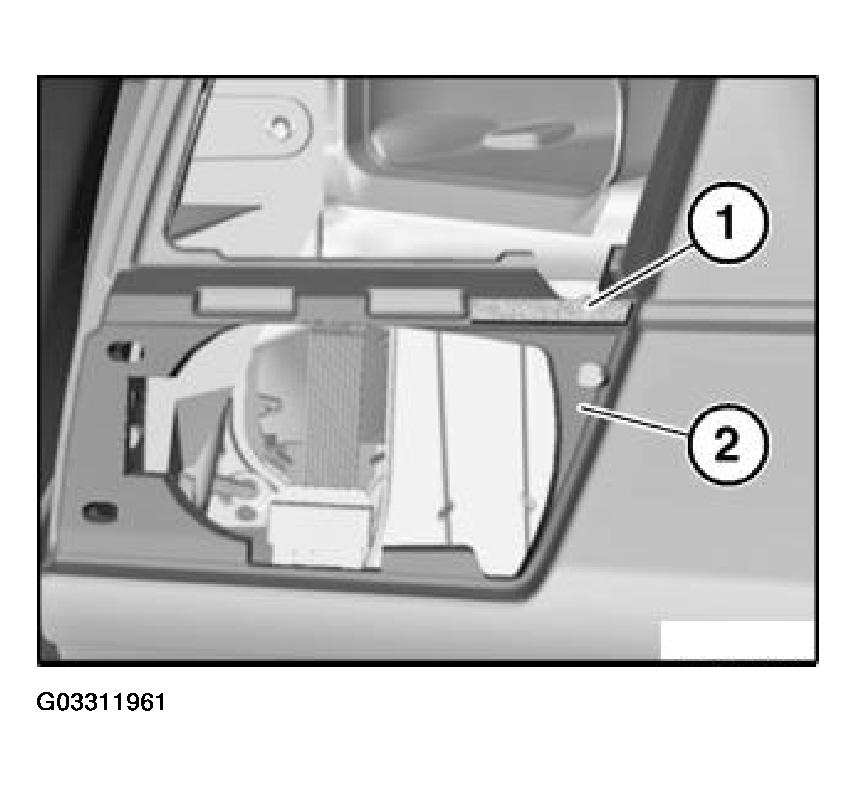

If necessary, remove felt strip (1) from instrument panel (2).

Fig 2: Removing Felt Strip From Instrument Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure lighting control unit is correctly seated in instrument panel (2).
