61 62 110 Removing and installing/replacing spray nozzle for rear window wiper

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Lever spray nozzle for rear window wiper (1) with special tool 00 9 317 out of spray nozzle holder (2).

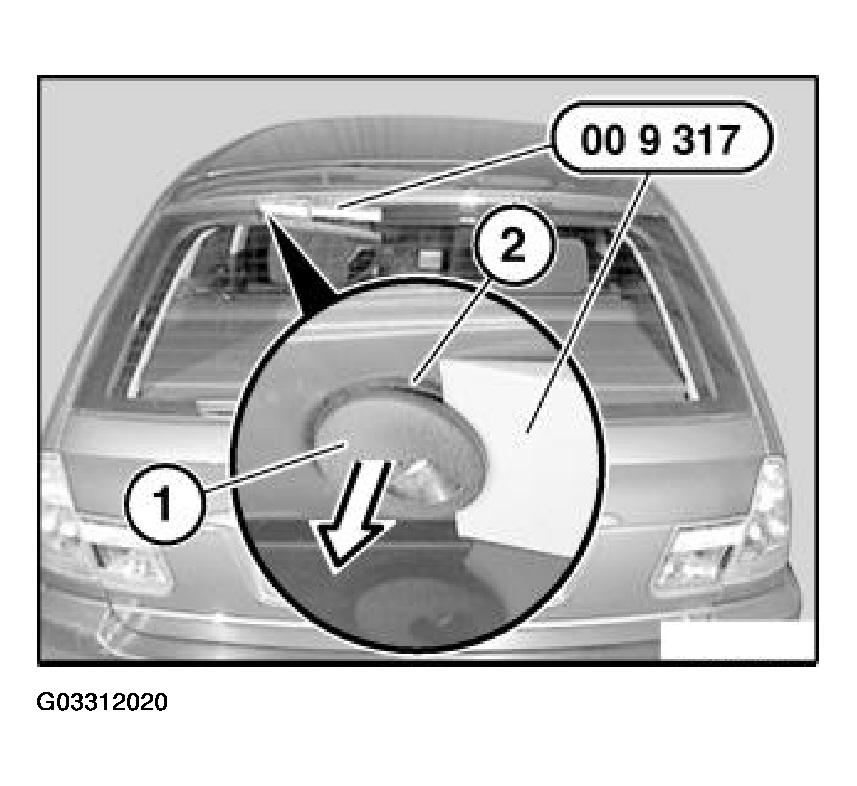

Fig 1: Removing Spray Nozzle For Rear Window Wiper

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure turning lock (2) of spray nozzle for rear window wiper (1) is correctly seated in spray nozzle holder.

Adjust spray nozzle.

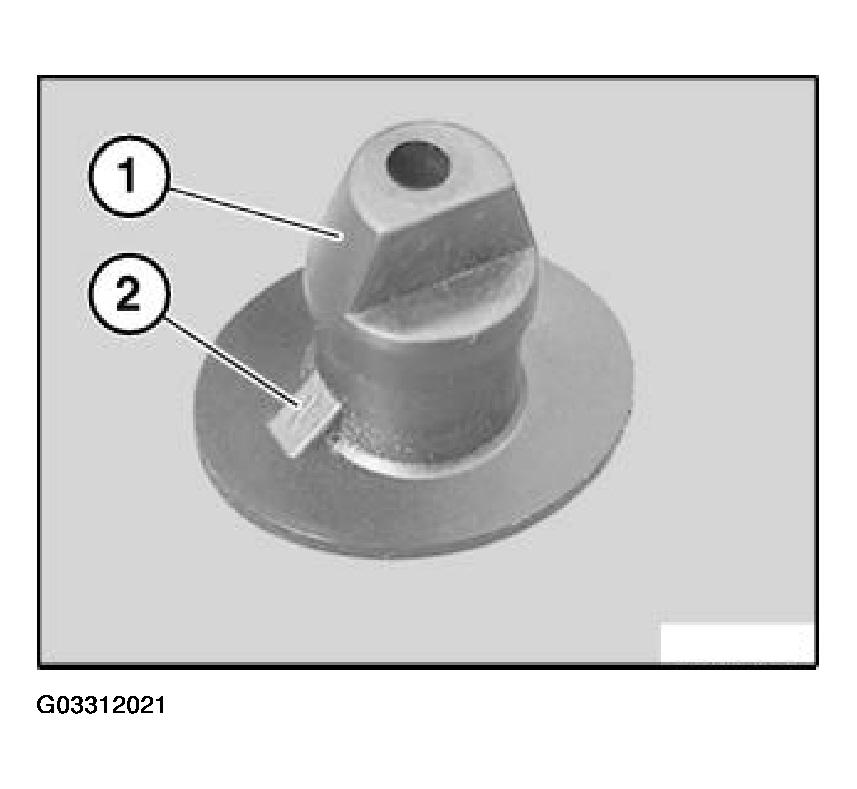

Fig 2: Inspecting Lock Of Spray Nozzle For Rear Window Wiper

Courtesy of BMW OF NORTH AMERICA, INC.
