61 33 040 Removing and installing/replacing a fanfare horn

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove Remove FRONT UNDERBODY PROTECTION

Unfasten plug connection (1) and disconnect.

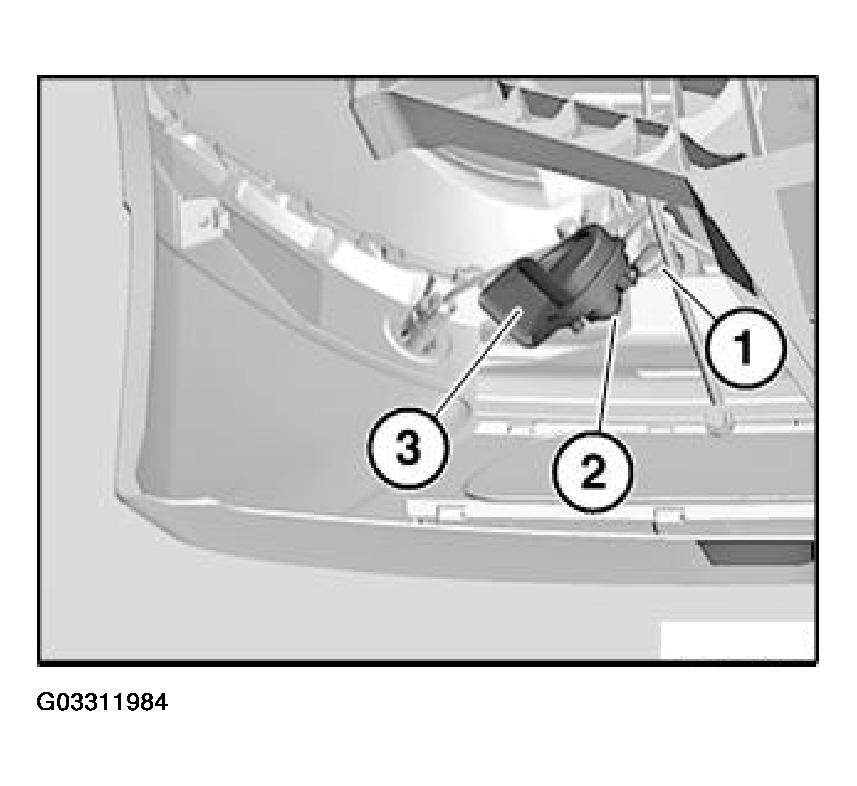

Fig 1: Removing Fanfare Horn

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (2) and remove fanfare horn (3).
