61 67 045 Removing and installing/replacing spray nozzles for left or right headlight cleaning system

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front bumper trim.

Press lock (1) and detach hose connection (2).

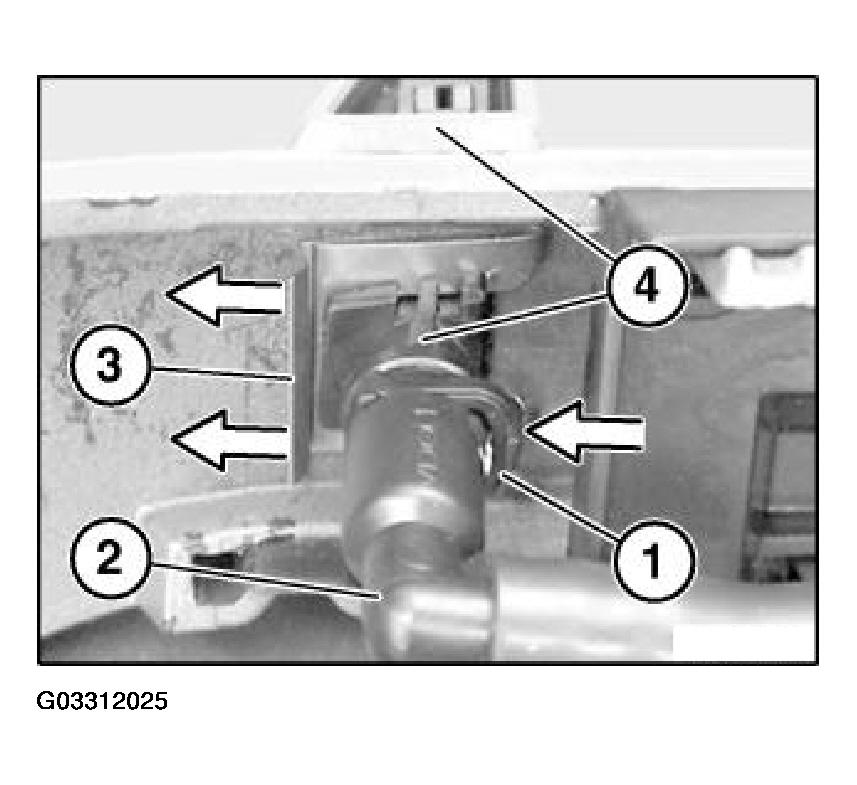

Fig 1: Detaching Hose Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out retainer (3) in direction of arrow.

Remove spray nozzle for headlight cleaning system (4) towards front.

Replacement:

Unclip spray nozzle (2) from trim (3).

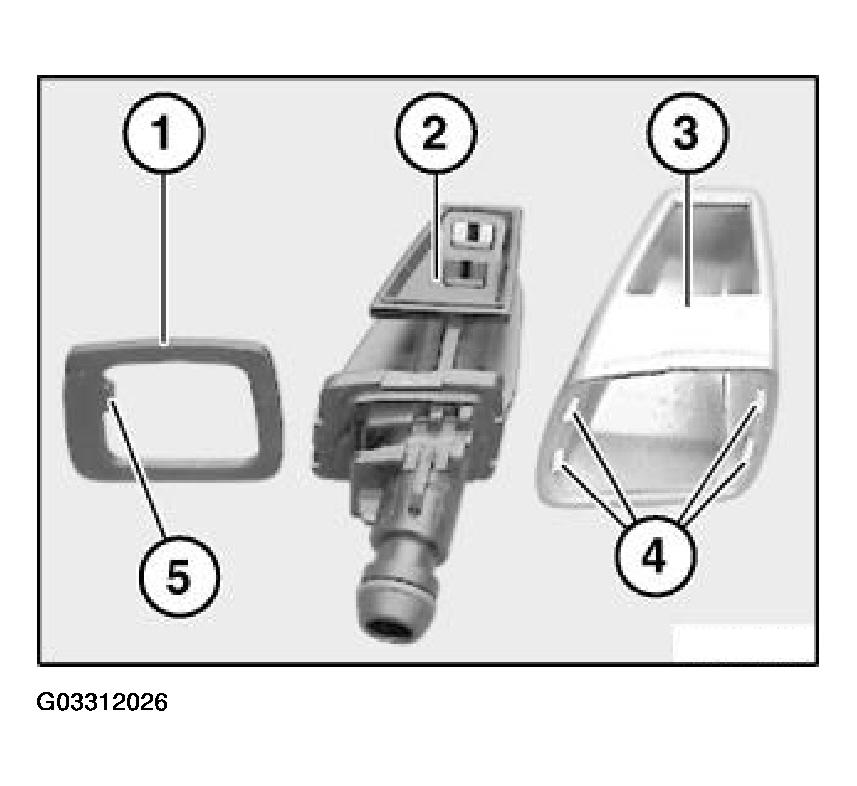

Fig 2: Unclipping Spray Nozzle From Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If necessary, replace backing (1).

Guides (5) of backing (1) must be located in openings of spray nozzle (2).

Catches (4) of trim (3) must not be damaged or missing.
