61 67 010 Removing And Installing/Replacing Washer Pump Of Headlight Cleaning System

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Drain washer fluid tank.

Unfasten plug connection (1) and disconnect.

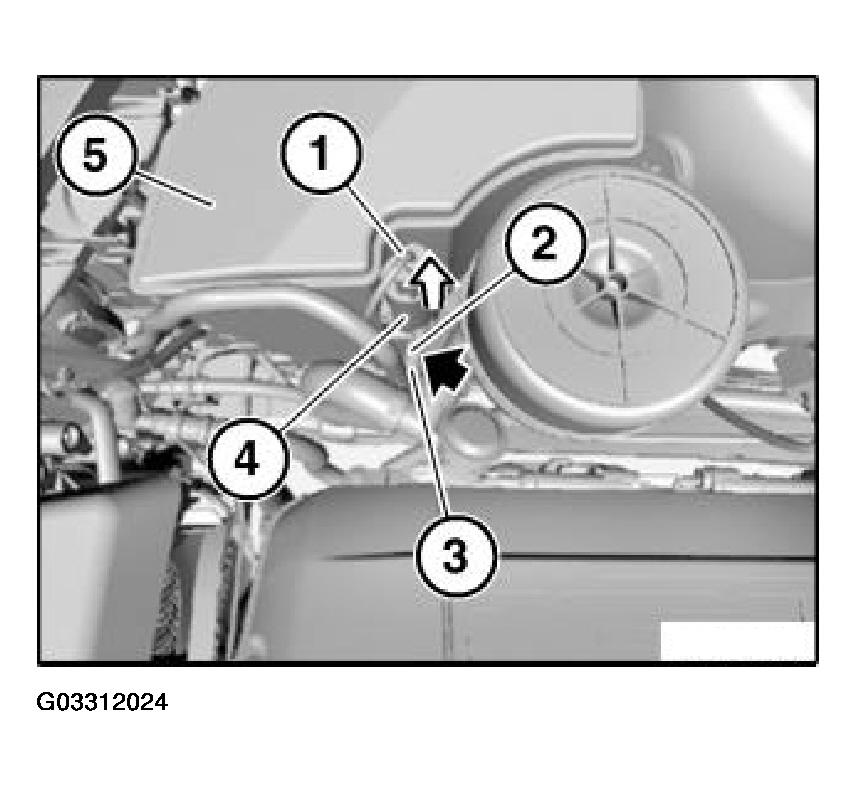

Fig 1: Removing Washer Pump

Courtesy of BMW OF NORTH AMERICA, INC.

Press lock (2) and detach hose (3) from washer pump of headlight cleaning system (4).

Pull washer pump of headlight cleaning system (4) in direction of arrow out of washer fluid reservoir (5).

Installation:

Replace sealing ring/strainer of washer pump.

Coat sealing ring of washer pump with antiseize agent.

Ensure hose is laid without kinks.

Fill washer fluid reservoir.
