61 35 900 Removing and installing/replacing ring antenna of electronic immobilizer

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

61 3 300

Necessary preliminary tasks:

Remove UPPER SECTION OF STEERING COLUMN TRIM

Disconnect plug connection (1).

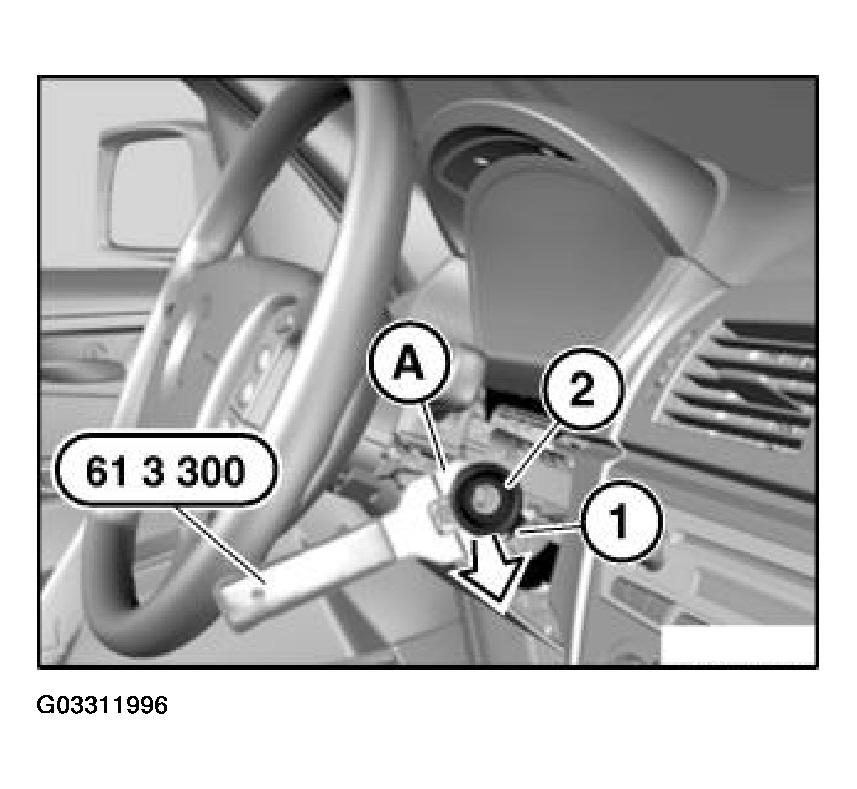

Fig 1: Removing Ring Antenna

Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 61 3 300 as illustrated with flattened side (A) to ring antenna of electronic immobilizer (2).

Lever out ring antenna of electronic immobilizer (2) in direction of arrow and remove.
