61 35 714 Removing and installing/replacing control unit for slide/tilt sunroof

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD protection). Refer to 61 35... NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

Necessary preliminary tasks:

Remove FRONT ROOFLINER TRIM
Remove COMPLETE CEILING LIGHT (FRONT)

NOTE: Secure drive for slide/tilt sunroof (3) against falling out.

Release screws (2).

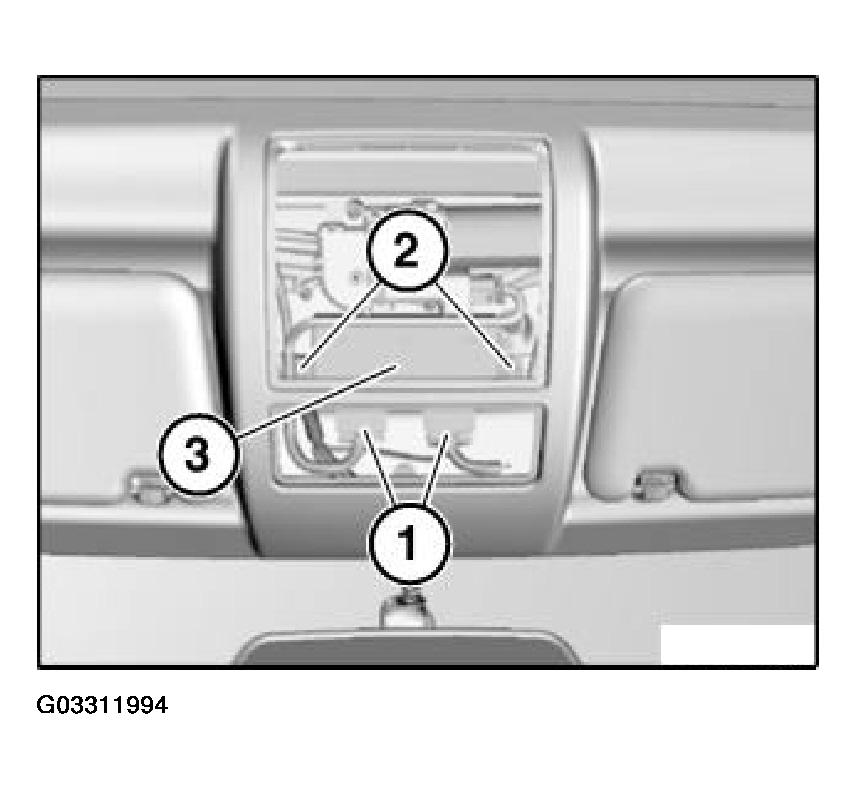

Fig 1: Removing Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Lower control unit for slide/tilt sunroof (3).

Unlock and disconnect plug connections (1) and remove control unit for slide/tilt sunroof (3).

Installation:

Initialize SLIDING SUNROOF .

Replacement:

Carry out programming/coding. Refer to DIAGNOSIS PROGRAMMING/CODING .

IMPORTANT: There is a risk of permanent battery discharge if programming/coding is not carried out!
