61 35 000 Removing and installing/replacing module (for trailer two hitch)

WARNING: This page is about a different car, the 2006 BMW X3, 2005 BMW X3, and 2004 BMW X3. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove LUGGAGE COMPARTMENT FLOOR TRIM PANEL .

Remove clips (1) and fold up front luggage compartment floor trim panel (2) slightly.

Fig 1: Removing Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure front luggage compartment floor trim panel (2) is correctly seated.

NOTE: Front luggage compartment floor trim panel shown removed for purposes of clarity.

Unfasten plug connection (1) and disconnect.

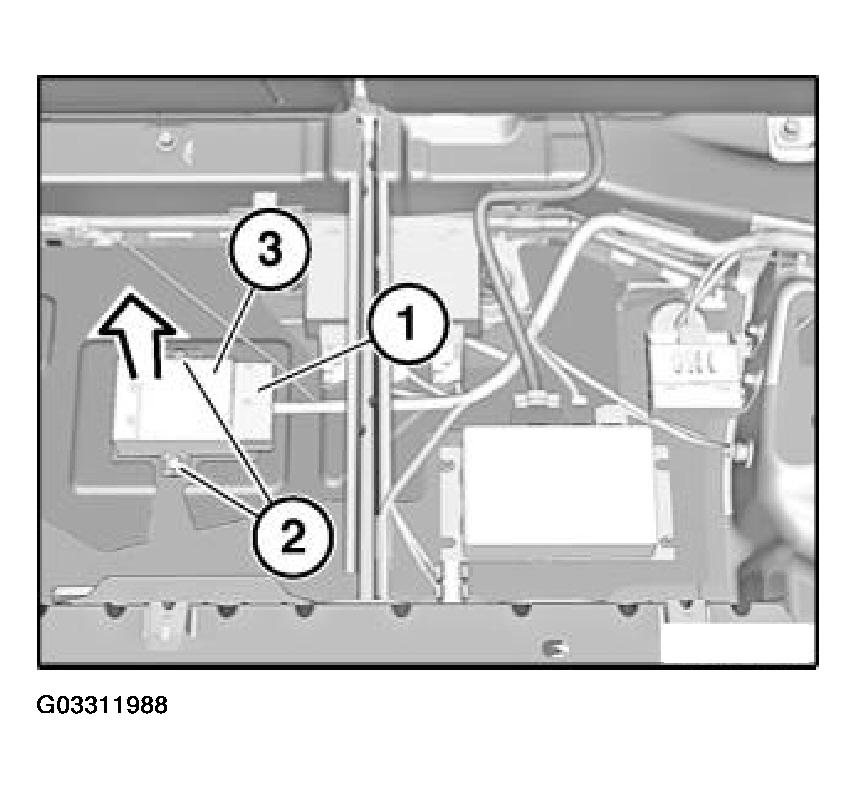

Fig 2: Removing Module

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (2).

Remove module (3) in direction of arrow.
