18 12 030 Replacing rear muffler

WARNING: This page does not describe the selected car, but rather 10 other vehicles, including the 2010 BMW X3, 2009 BMW X3, 2008 BMW X3, 2007 BMW X3, and 2006 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 2 210

WARNING: Scalding hazard!
Only perform these tasks after exhaust system has cooled down.

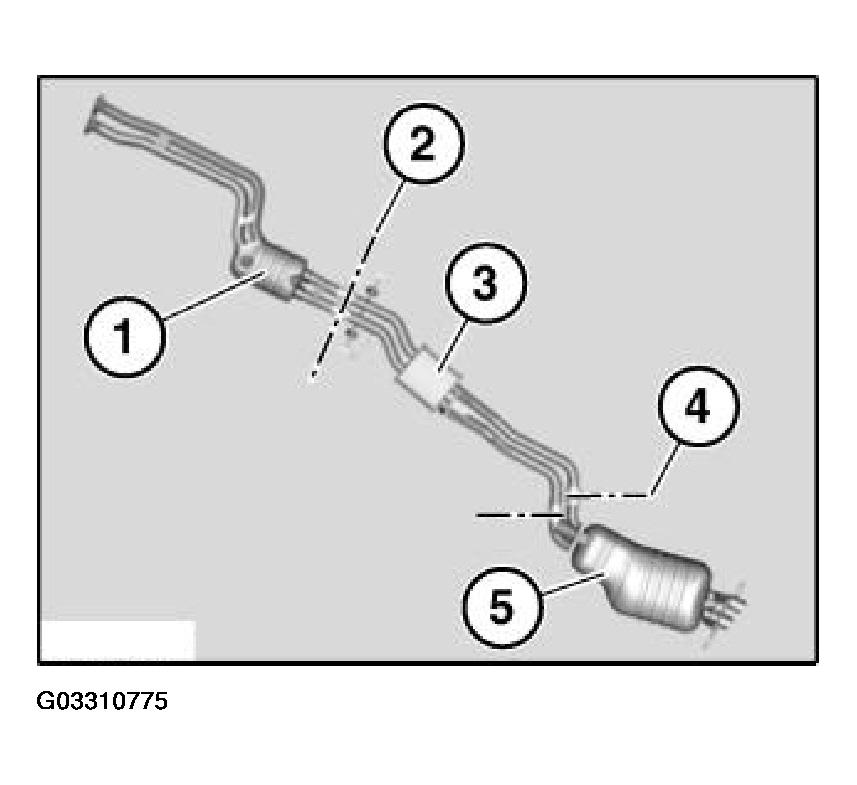

Cutting line (4) between center muffler (3) and rear muffler (5).

Fig 1: Locating Cutting Line Between Center Muffler And Rear Muffler

G03310775

Courtesy of BMW OF NORTH AMERICA, INC.

Determine pipe length on new rear muffler (5).

Carry over dimensions to faulty rear muffler (5) and mark cutting line.

Cut exhaust pipe with special tool 00 2 210 at marked points and deburr.

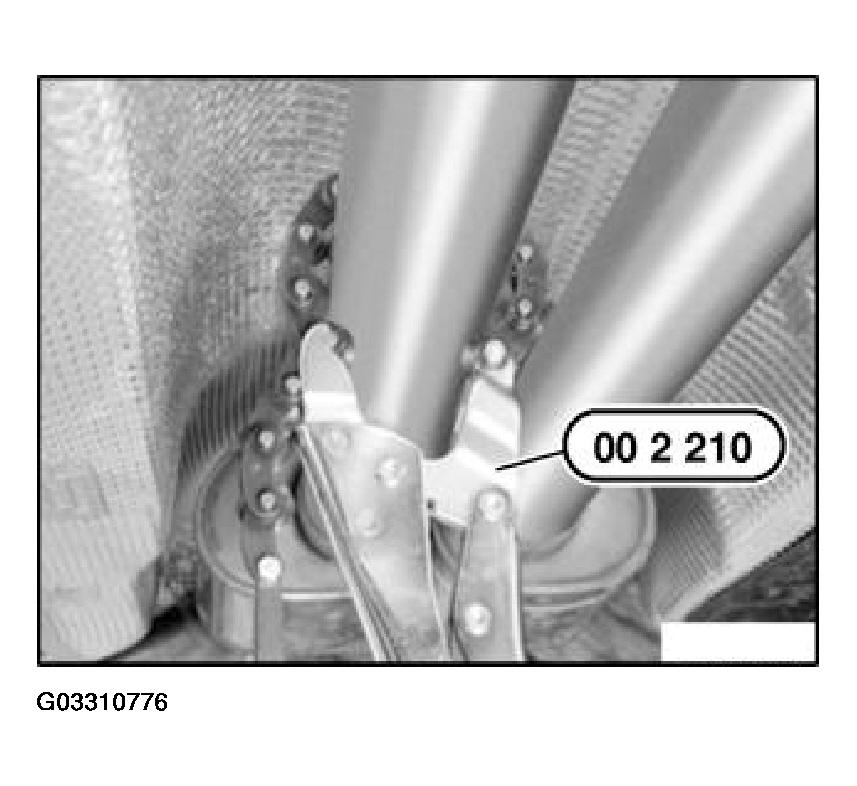

Fig 2: Cutting Exhaust Pipe

G03310776

Courtesy of BMW OF NORTH AMERICA, INC.

Pull off vacuum hose (1).

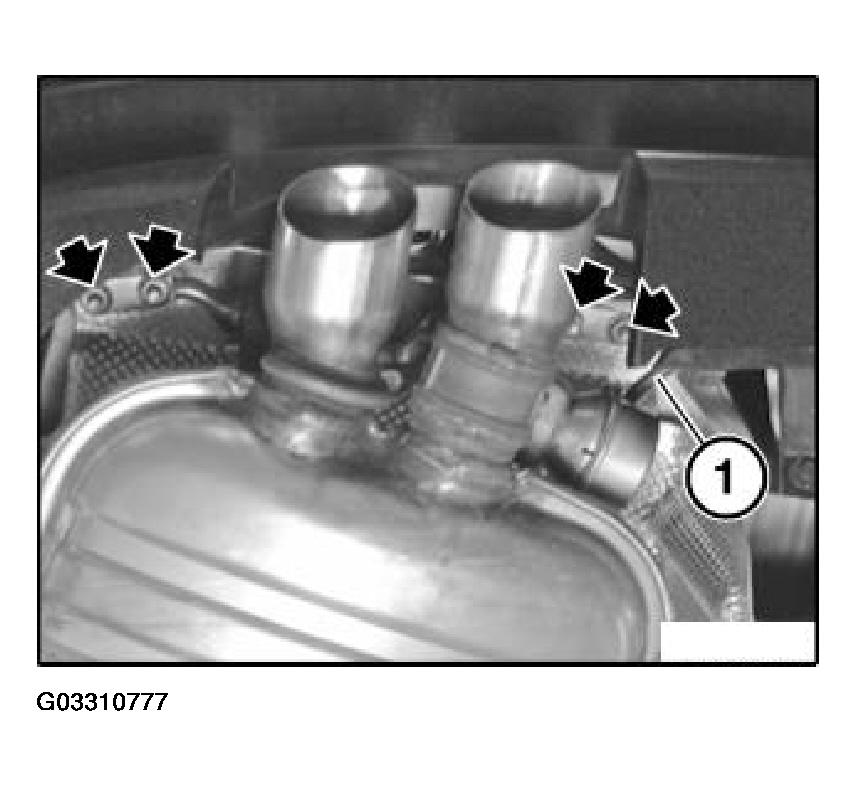

Fig 3: Locating Nuts

G03310777

Courtesy of BMW OF NORTH AMERICA, INC.

Release nuts and remove rear muffler.

Connect rear muffler (5) using clamping sleeve.

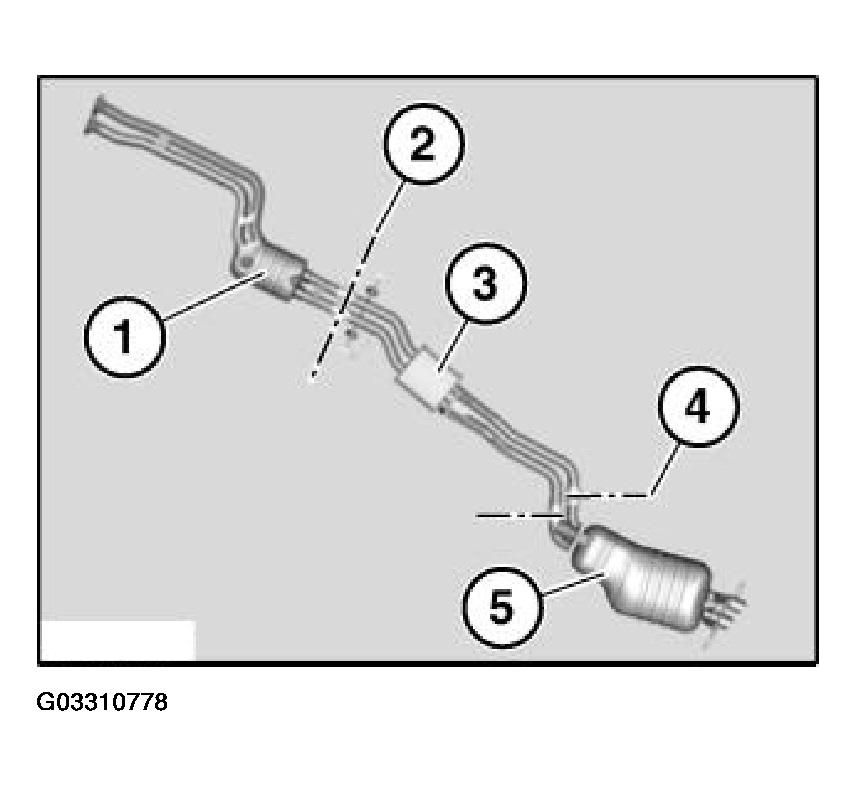

Fig 4: Connecting Rear Muffler

G03310778

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Align clamping sleeve so that:

Nuts point downwards.
Cutting line is in middle of clamping sleeve.
There is sufficient spacing to adjoining components.
