Assembly of fast-release coupling

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Press in lock (1) before installing fast-release coupling.

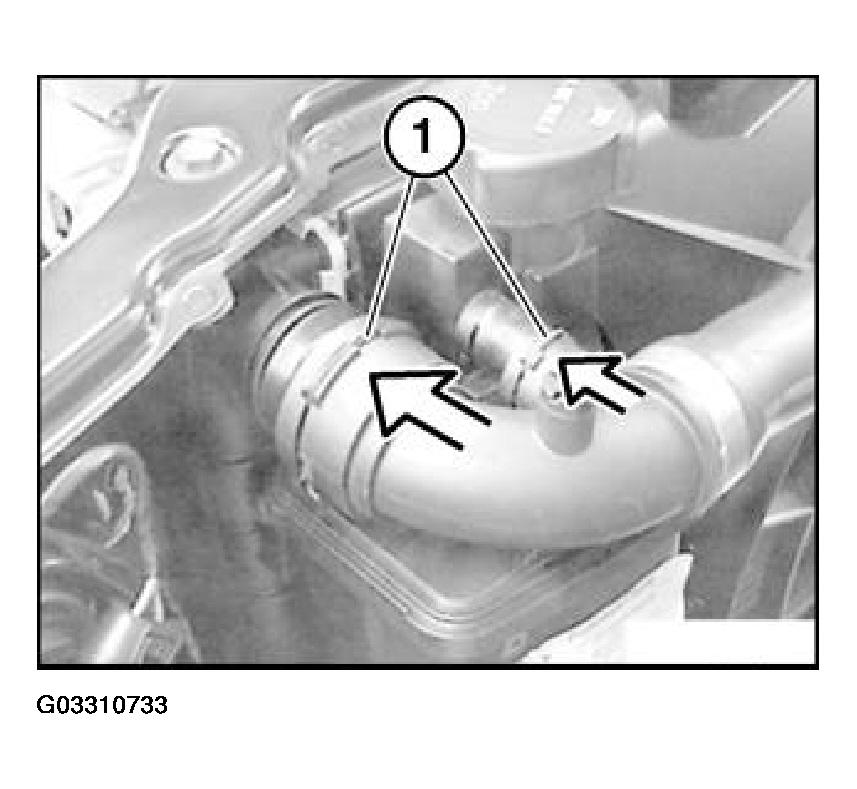

Fig 1: Installing Fast-Release Coupling

Courtesy of BMW OF NORTH AMERICA, INC.

Push on hose.

Fast-release coupling must audibly snap into place.
