Checking Coolant Level:

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Check coolant level at a maximum coolant temperature of 30 °C.

NOTE: If ambient temperature exceeds 30 °C, allow engine to cool down at least to ambient temperature.

Open cap carefully.

Fluid level is O.K. when top edge of coolant expansion tank is between both markings (1 and 2) on float needle.

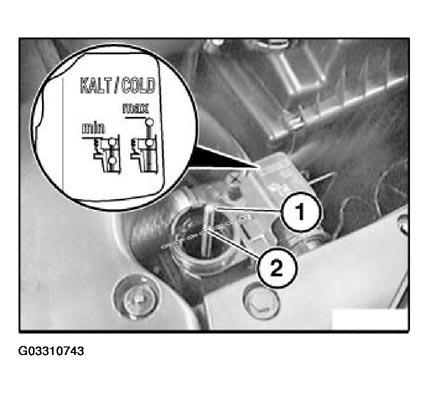

Fig 1: Checking Coolant Level

Courtesy of BMW OF NORTH AMERICA, INC.

Minimum cold fill level:

Upper edge of coolant expansion tank is level with marking (1).

Maximum cold fill level:

Upper edge of coolant expansion tank is level with marking (2).

If necessary, top up coolant.

NOTE: Tank mark indicates the fluid level at approx. 20 °C.

Check cooling system for leaks. Refer to 17 00 009 CHECKING COOLING SYSTEM FOR LEAKS (M54) .
