Checking pressure relief valve in cap:

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Screw cap (1) onto special tool 17 0 106.

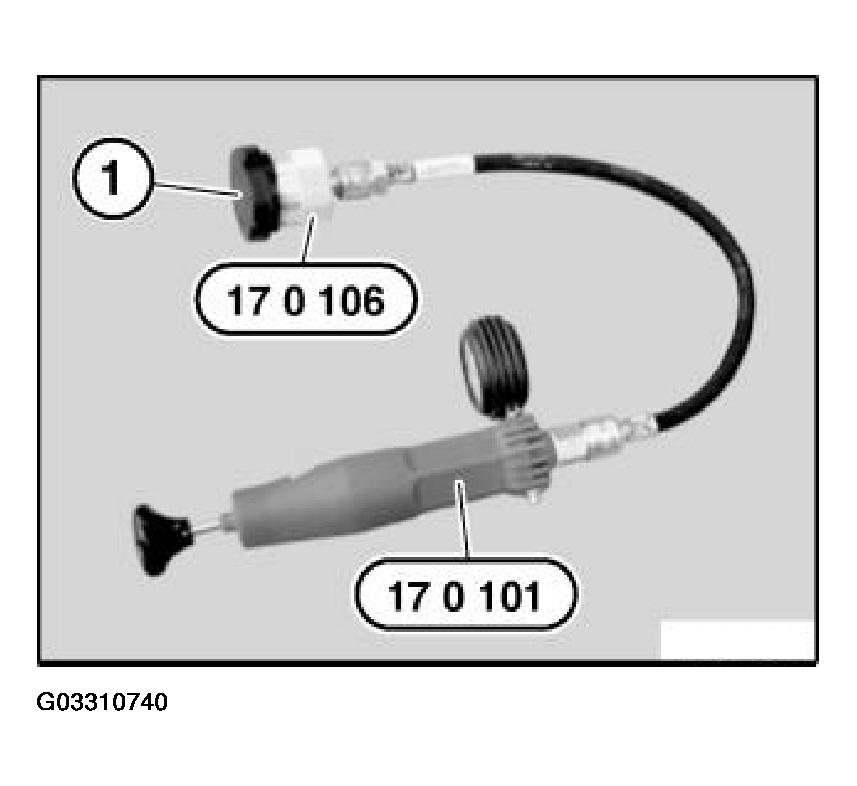

Fig 1: Checking Pressure Relief Valve In Cap
G03310740Courtesy of BMW OF NORTH AMERICA, INC.

Build up pressure with special tool (hand pump) 17 0 101; observe pressure gauge to ascertain when opening pressure is achieved.

Compare opening pressure of pressure relief valve. Refer to COOLING SYSTEM - TECHNICAL DATA .
