Checking pressure drop in cooling system:

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Open cap on coolant expansion tank. Fit special tools 17 0 101 / 17 0 105.

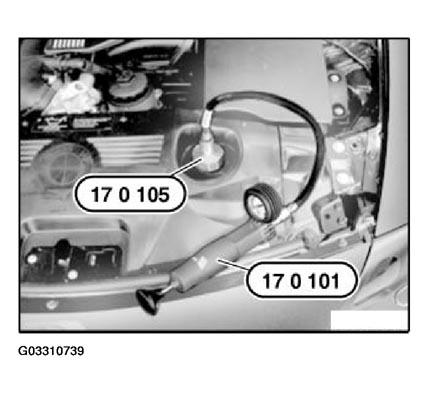

Fig 1: Checking Pressure Drop In Cooling System
G03310739Courtesy of BMW OF NORTH AMERICA, INC.

Build up gauge pressure of 1.5 bar, wait approx. 2 minutes.

Cooling system is impervious to leaks if pressure drop is max. 0.1 bar.
