13 63 590 Replacing fuel pump relay

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Read out fault memory of DME control unit
Switch off ignition
Remove glovebox, refer to 51 16 360 REMOVING AND INSTALLING RIGHT GLOVEBOX .

Pull off fuel pump relay (1).

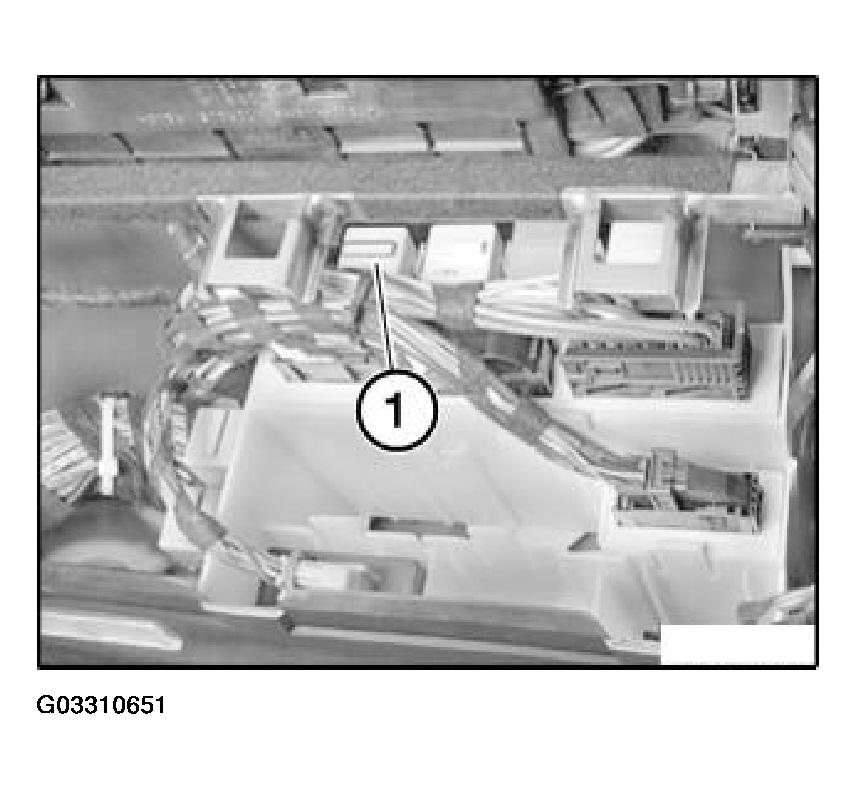

Fig 1: Removing Fuel Pump Relay

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: After removal of fuel pump relay and during engine starting sequence:

Fuel pump no longer starts up
Engine fails to start.

Installation:

Check stored fault messages.

Now clear the fault memory.
