13 64 541 Replacing all fuel injectors
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Switch off ignition
- Remove complete injection pipe, refer to REPLACING COMPLETE INJECTION PIPE (M54)

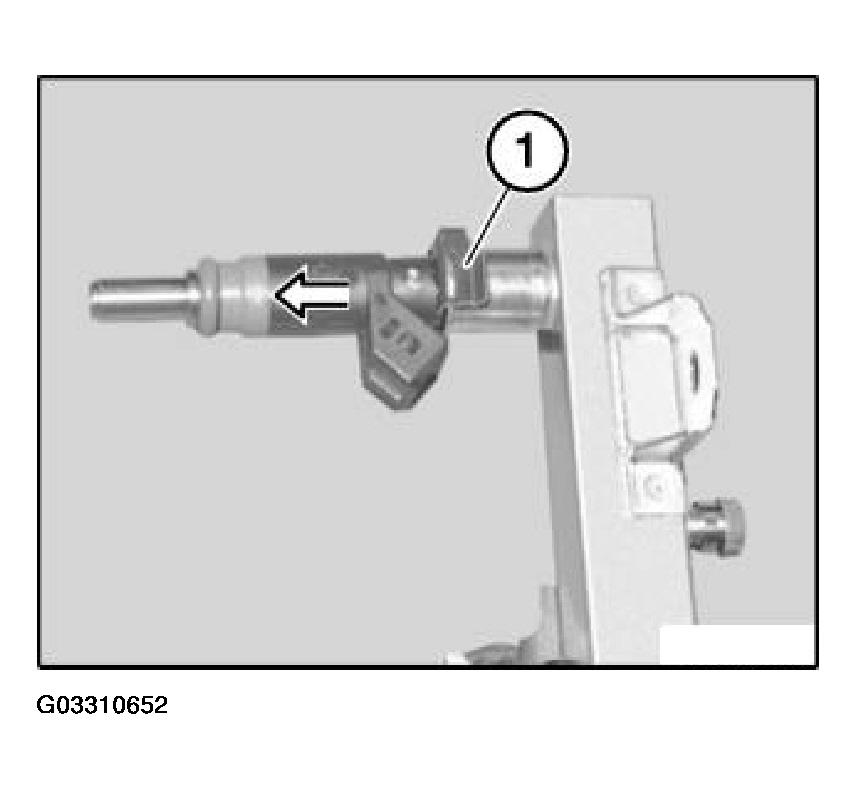

Detach retainer (1).
Detach fuel injector from injection pipe.
Installation:
Check sealing rings, replace if necessary.
Insert fuel injector fully into injection pipe then pull out until groove is flush with edge of injection pipe.
Push on retainer.
Installation:
Coat sealing rings of fuel injectors with anti-seize agent to facilitate fitting of injection pipe.
