M52TU only:

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Remove intake filter housing.

Pull Bowden cable upwards out of holder (1) and suspend from throttle.

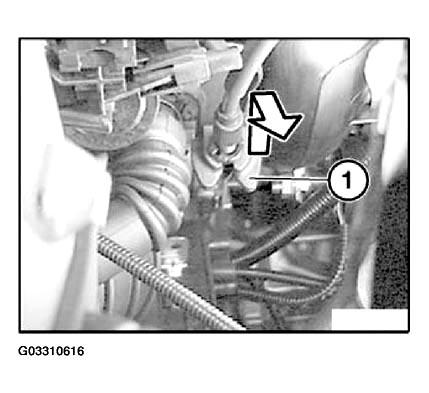

Fig 1: Pulling Bowden Cable Out Of Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen hose clamps (1).

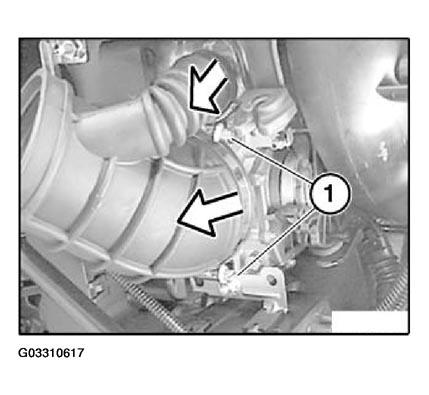

Fig 2: Loosening Hose Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Detach air intake hose section from throttle assembly and idle actuator.

Installation:

To facilitate installation, fit air-mass flow sensor with intake hose (1). Coat intake hose (1) with antiseize agent.

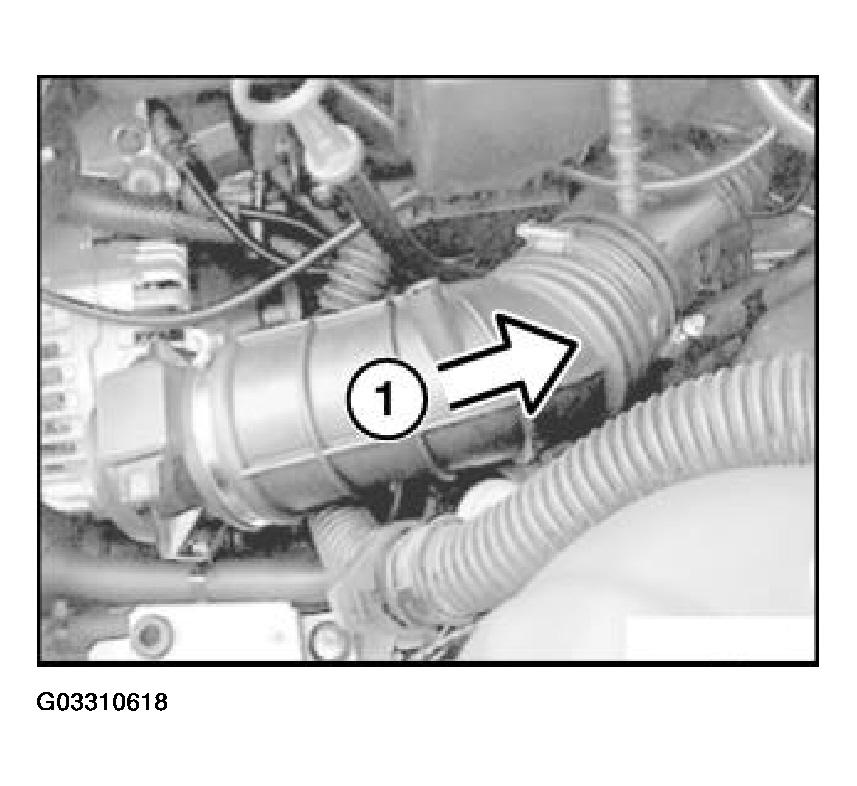

Fig 3: Fitting Air-Mass Flow Sensor With Intake Hose

Courtesy of BMW OF NORTH AMERICA, INC.
