13 62 560 Removing and installing/replacing air-mass flow sensor (M54)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Illustrations show E85.

Necessary preliminary tasks:

Read out fault memory of DME control unit
Switch off ignition

Unlock plug (1) and remove.

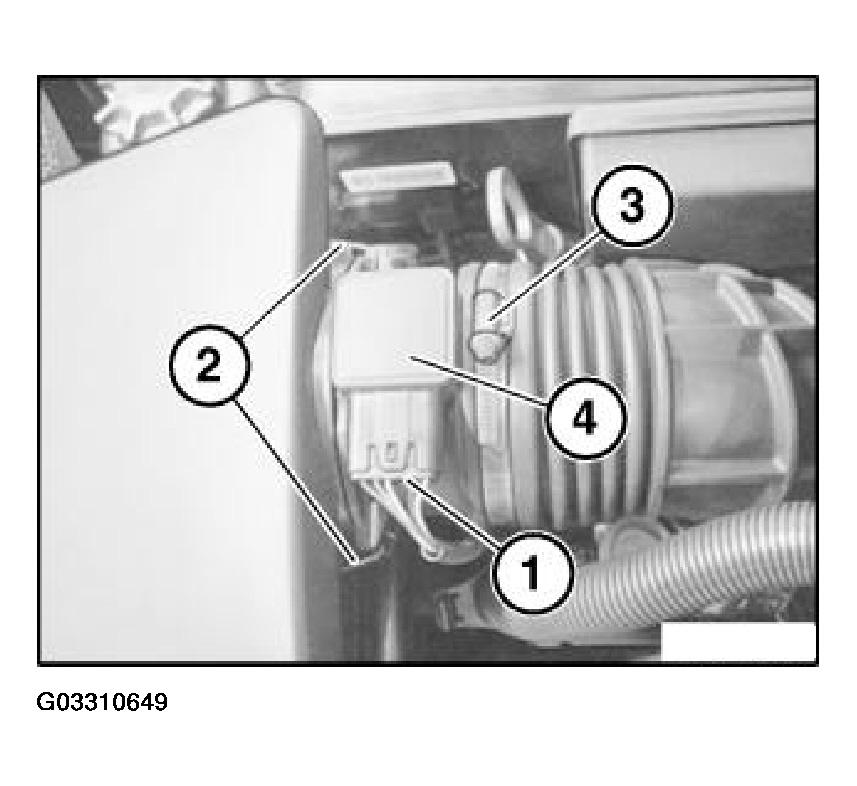

Fig 1: Removing Air-Mass Flow Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Release clips (2).

Release clamp (3).

Pull air-mass flow sensor (4) first out of top section of intake filter housing and then out of air intake hose.

Installation:

Check sealing ring (1) between air-mass flow sensor and intake filter housing for damage, replace if necessary.

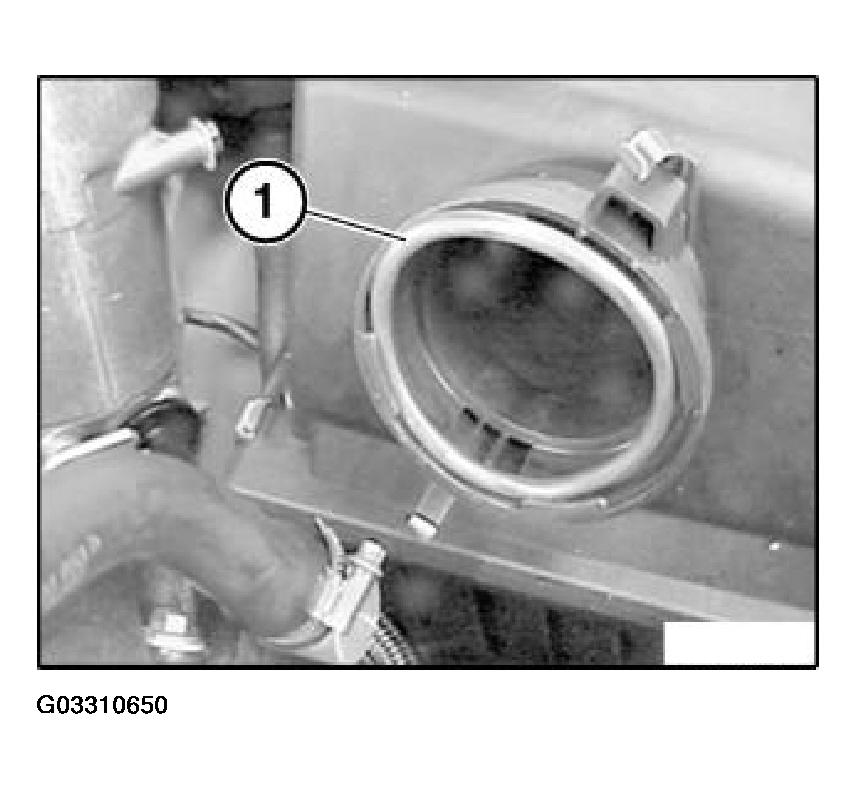

Fig 2: Checking Sealing Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Coat sealing ring (1) with suitable antiseize agent.

Installation:

Check stored fault messages.

Now clear the fault memory.
