13 62 511 Replacing intake air temperature sensor (M54)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Turn off ignition.

Remove cover from fuel injectors.

Disconnect plug connection (1) for temperature sensor.

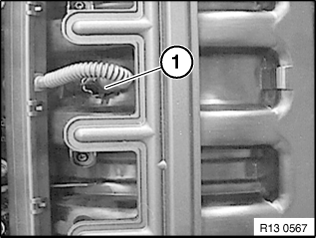

Fig 1: Locating Temperature Sensor Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Press catch and withdraw temperature sensor (1) from intake air manifold.

Installation:

Check sealing ring on temperature sensor for damage, replace if necessary.

Coat sealing ring with antiseize agent.

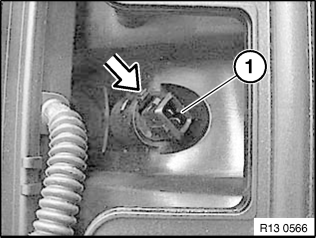

Fig 2: Identifying Temperature Sensor And Catch

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE:

Read out fault memory of DME control unit.

Check stored fault messages.

Rectify faults.

Then clear fault memory.
