13 51 630 Replacing fuel pressure regulator (M54)

FOLLOW INSTRUCTIONS FOR FUEL PRESSURE TESTING

Recycling

The fuel in the fuel lines is under pressure (approx. 3 to 5 bar)!

Fuel emerges from the fuel filter when the fuel pressure regulator is removed.

Catch and dispose of escaping fuel.

Observe country-specific waste-disposal regulations.

Removing fuel tank underbody protection on left:

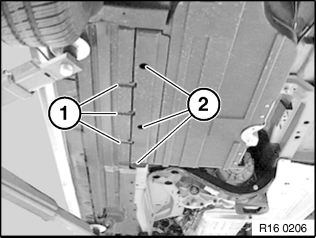

Release metal screws (1).

Release screws (2).

Fig 1: Identifying Screws And Metal Screws

Courtesy of BMW OF NORTH AMERICA, INC.

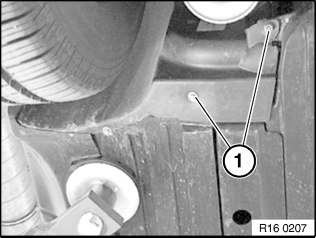

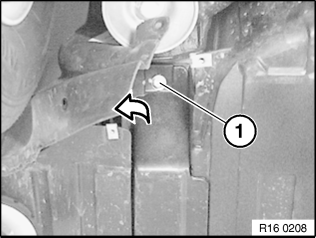

Release screws (1) on wheel arch trim, rear left.

Fig 2: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Bend wheel arch trim open.

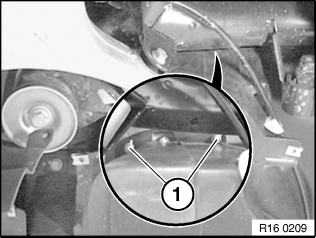

Release screw (1).

Fig 3: Identifying Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Fig 4: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

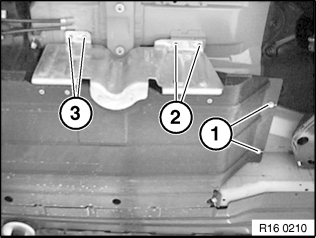

Release screws (1) and (2).

Release nuts (3).

Fig 5: Identifying Screws And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

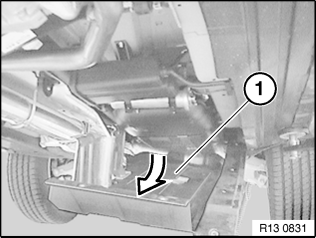

Lower fuel tank underbody protection (1) only until access to fuel filter/pressure regulator is unhindered.

Fig 6: Identifying Fuel Tank Underbody Protection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Check routing of handbrake cable on tank.

If necessary, clip handbrake cable into holders on tank.

Disconnect vacuum hose.

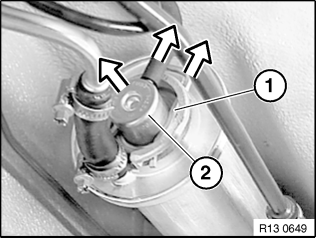

Pull out locking bracket (1) in direction of arrow.

Remove fuel pressure regulator (2).

Fig 7: Identifying Fuel Pressure Regulator And Locking Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replace O-rings on fuel pressure regulator (1).

To aid installation, apply a thin coat of petroleum jelly to O-rings (1).

Fig 8: Identifying O-Rings

Courtesy of BMW OF NORTH AMERICA, INC.
