Version with hose clamps:

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Release hose clamps.

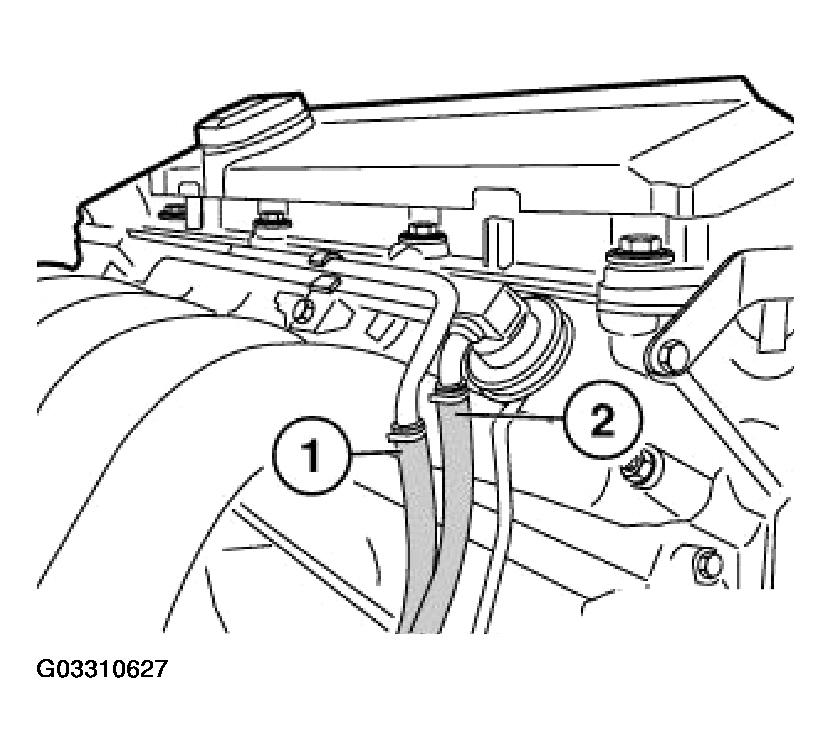

Fig 1: Removing Hoses

Courtesy of BMW OF NORTH AMERICA, INC.

Remove hoses (1) and (2).

Installation:

Fuel hoses and hose clamps must be replaced each time they are removed!
