13 31 029 Checking fuel pump delivery pressure (M54)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

13 3 010
13 5 220
61 3 050

Switch off ignition.

CAUTION: The fuel in the fuel lines is under pressure (approx. 3 bar)! Catch and dispose of escaping fuel.

Remove cover from fuel injectors.

Remove dust cap (1) from measuring valve on fuel rail.

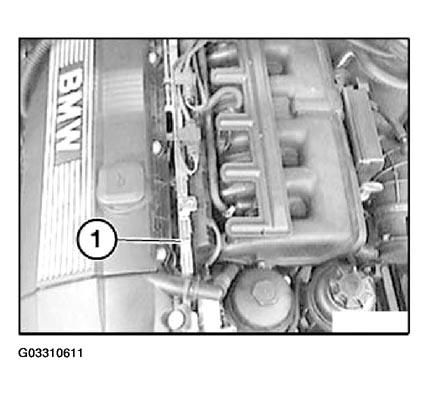

Fig 1: Removing Dust Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Prepare special took kit 13 5 220 (consisting of 13 5 221 and 13 5 222).

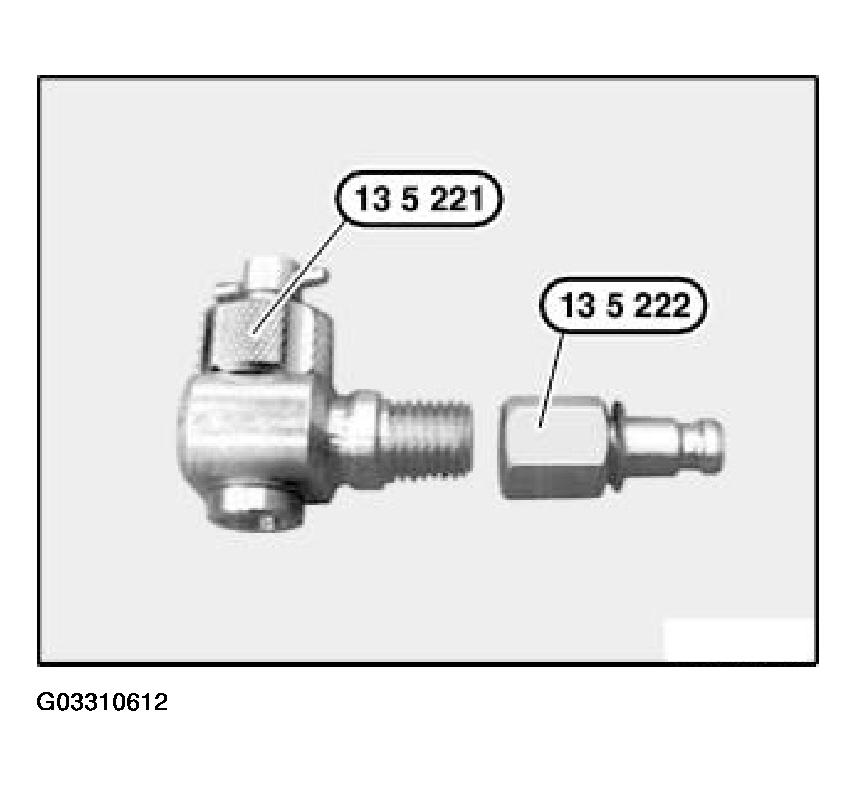

Fig 2: Identifying Special Took Kit

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew check valve (1) on special tool kit 13 5 220.

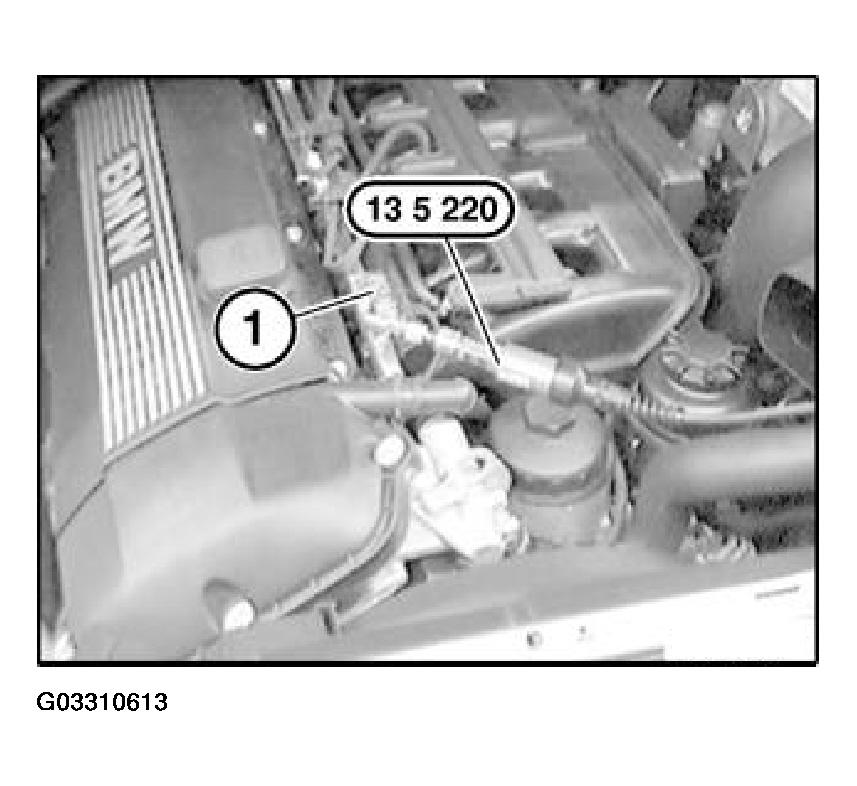

Fig 3: Fitting Special Tool On Measuring Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Fit special tool kit 13 5 220 on measuring valve and tighten knurled nut until hand-tight.

Start engine.

Screw in check valve (1) until a pressure reading is indicated on DIS Tester.

CAUTION: Do not under any circumstances screw in the check valve up to the mechanical stop. This could damage the valve in the pressure regulator housing.

Measuring fuel pressure:

Connect pressure sensor to DIS Tester
Start engine.
Select Measurement.
Multimeter function appears
Select Pressure test
Read off fuel pressure

Compare actual value of test pressure with specified value. Refer to FUEL SYSTEM - TECHNICAL DATA .

Switch off engine.

Checking fuel pump:

Detach fuel pump relay.

NOTE: Check whether fuel pump no longer starts up during engine starting procedure (engine fails to start).

Connect special tool 61 3 050 to terminal (87) and terminal (30). Press button and read off fuel pump delivery pressure on DIS Tester.

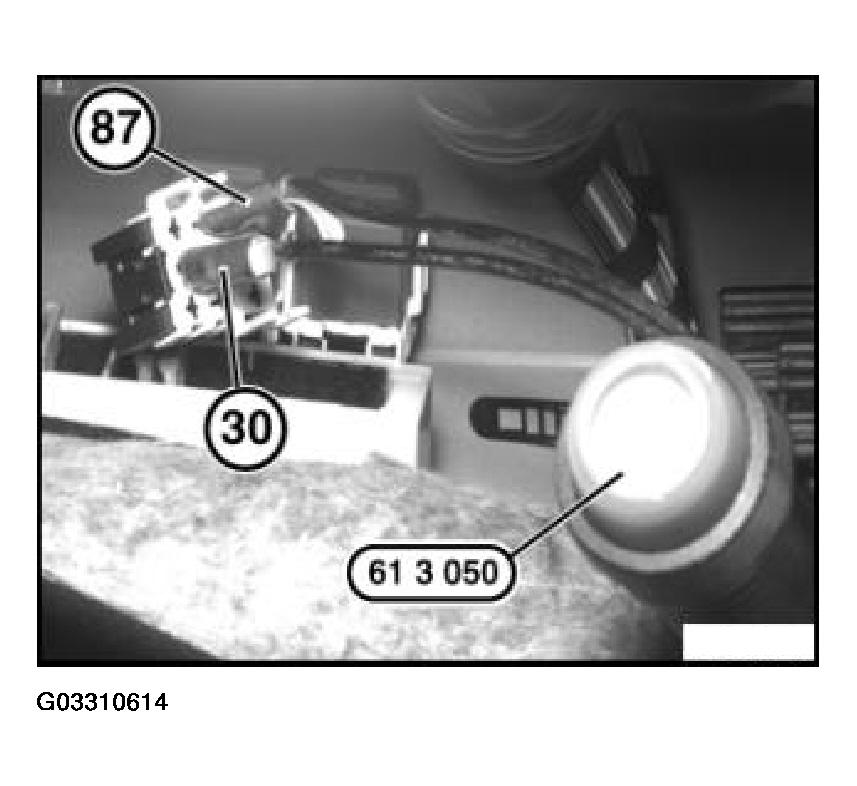

Fig 4: Connecting Special Tool To Terminal

Courtesy of BMW OF NORTH AMERICA, INC.

Compare actual value with specified value of delivery pressure.

Keep special tool 13 3 010 ready for further tests.

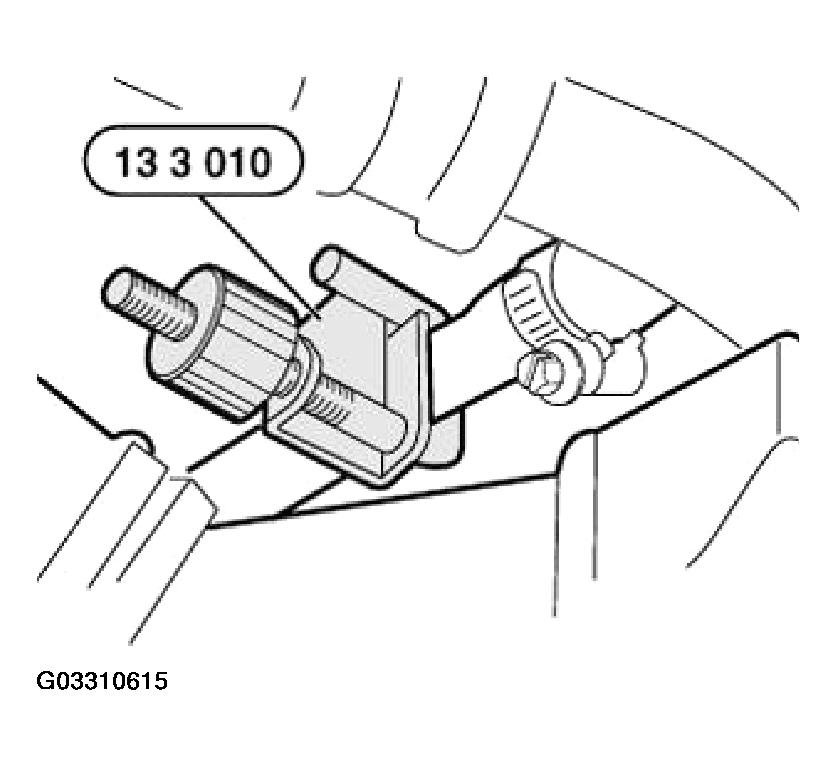

Fig 5: Identifying Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Further tests are described in the section "Fuel pressure check". Refer to NOTES ON FUEL PRESSURE CHECK (REFERENCE PRESSURE: ENVIRONMENT) .

NOTE: Interrogate fault memory of DME control unit.

Check stored fault messages.

Rectify faults.

Then clear fault memory.
