12 61 285 Replacing level switch for engine oil
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Switch off ignition.
- Unfasten cover on full-flow oil filter to enable engine oil in filter to flow back into the oil sump.
- Drain ENGINE OIL .

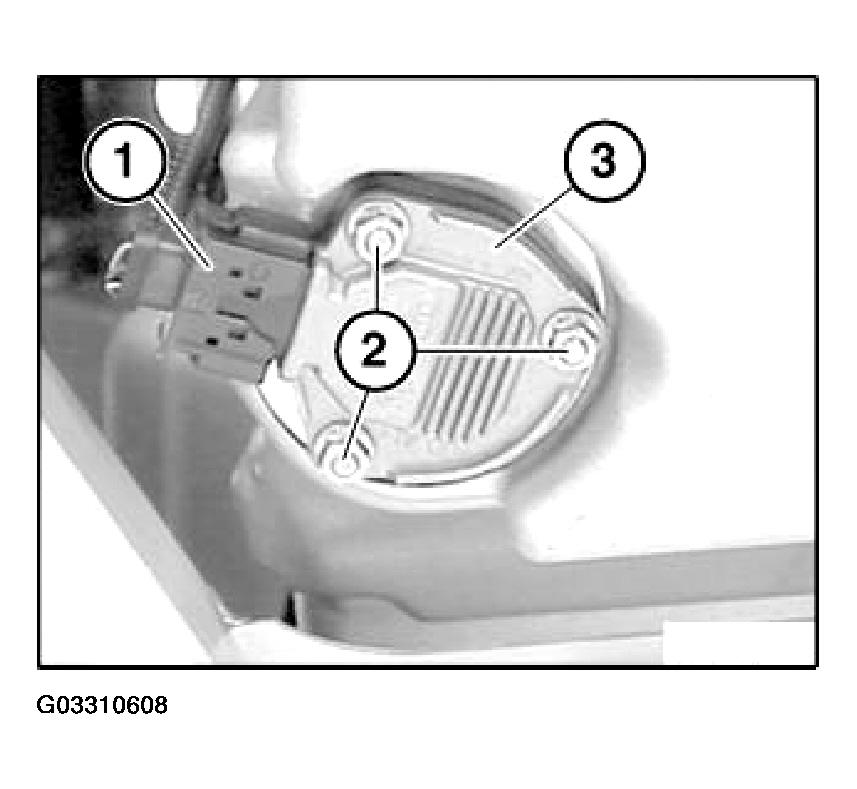

Disconnect plug connection (1).
Unscrew nuts (2).
Remove level switch (3).
Installation:
Clean sealing surface on oil sump and replace seal of level switch.
Installation:
Screw on oil-filter cover tightly.
Tightening torque 11 42 2AZ .
Top up ENGINE OIL .
