12 61 280 Removing and installing/replacing oil pressure sensor
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Switch off ignition
- Unfasten oil filter cap to enable engine oil in filter to flow back into the oil sump.
- Remove INTAKE FILTER HOUSING .

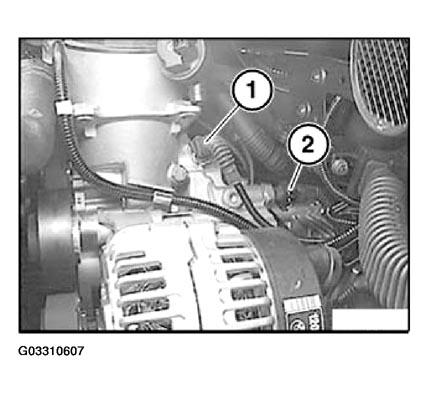

Installation location: at base of oil filter.
Disconnect plug connection (2).
Unscrew and remove oil-pressure switch.
IMPORTANT:
Engine oil may emerge when the oil pressure sensor is removed - have a cleaning cloth to hand.
Catch and dispose of emerging engine oil.
Tightening torque 12 61 1AZ .
Installation:
Screw on oil-filter cover tightly.
Check engine oil level, top up engine oil if necessary.
