12 12 011 Replacing all spark plugs

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

12 1 171
12 1 200

NOTE: This repair instruction is valid for the following engines:

M52 / M52TU / M54 / M56
S52/ S50US

Necessary preliminary tasks:

Remove IGNITION COILS .

Unscrew and remove spark plugs with special tool 12 1 171 in conjunction with special tool 12 1 200.

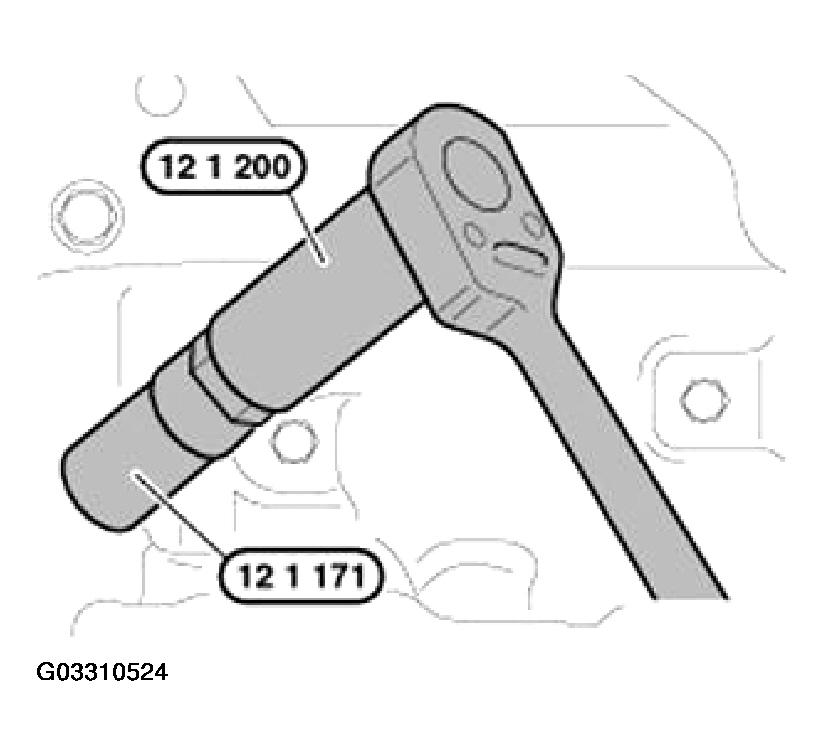

Fig 1: Identifying Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

If special tool 12 1 200 is not used,

Tightening torque 12 12 1AZ .
