12 13 520 Replacing a spark plug connector

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Switch off ignition.

Remove ignition coils.

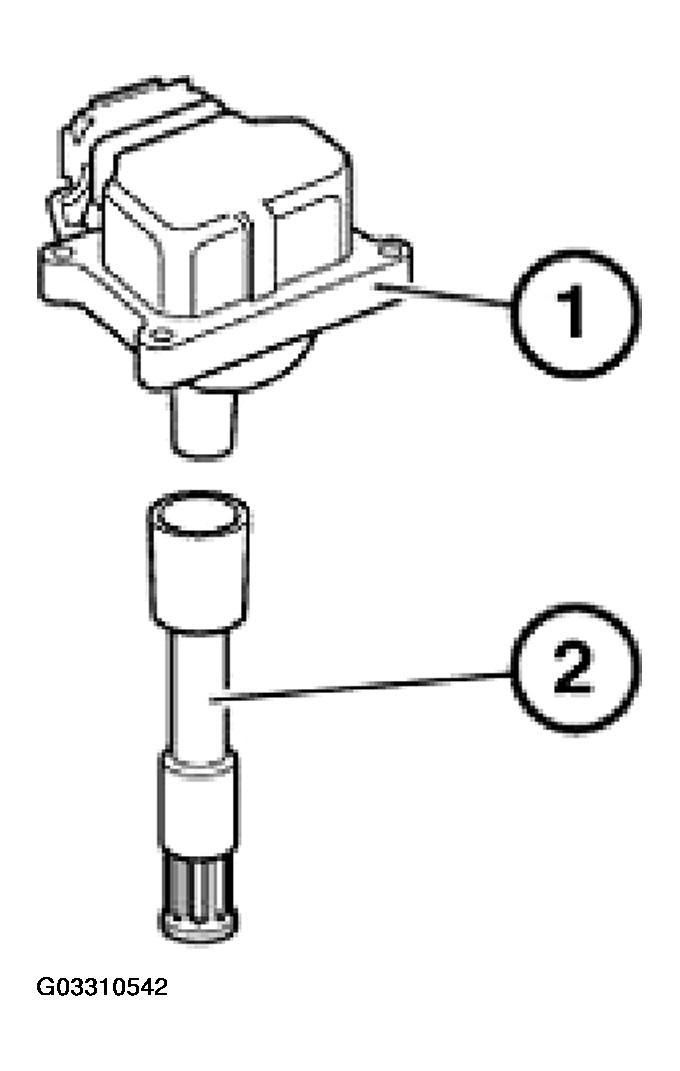

Detach ignition coil (1) from spark plug connector (2).

Fig 1: Detaching Ignition Coil From Spark Plug Connector

Courtesy of BMW OF NORTH AMERICA, INC.
