12 14 524 Replacing pulse generator on exhaust camshaft

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Check stored fault messages.
Switch off ignition.

Location:

On cylinder head at front on exhaust side.

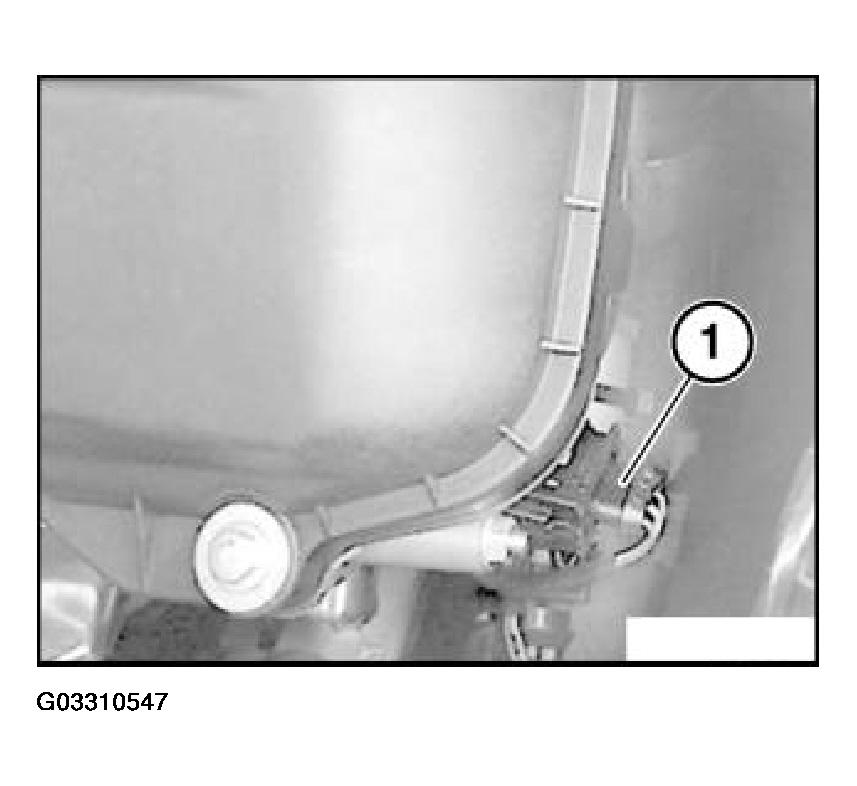

Unlock plug (1) and detach from pulse generator.

Fig 1: Unlocking Plug

Courtesy of BMW OF NORTH AMERICA, INC.

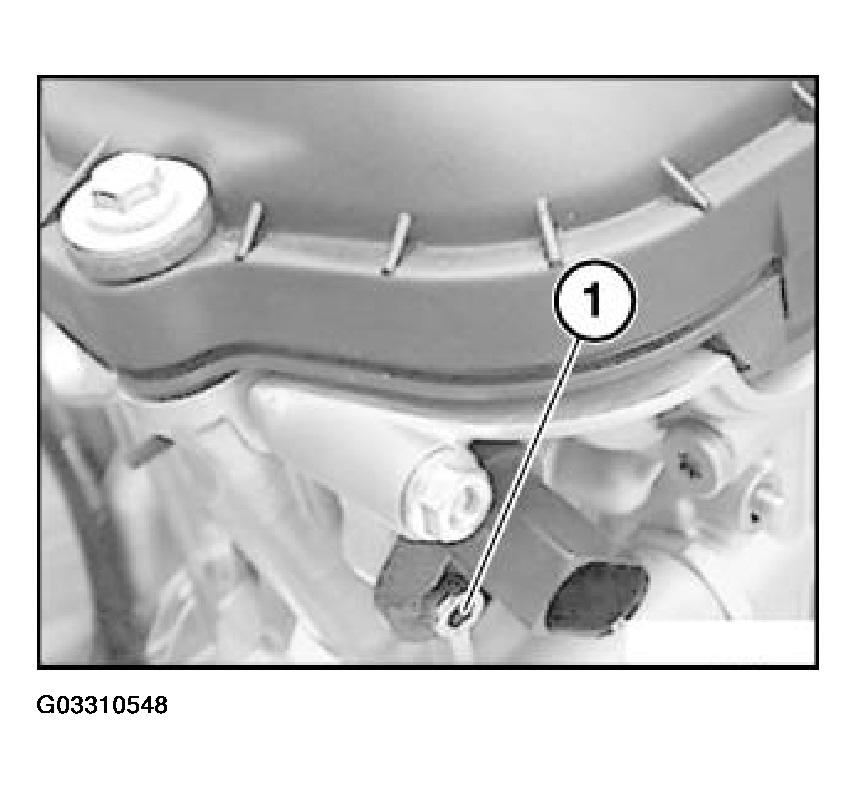

Release screw (1) on cylinder head.

Fig 2: Removing Pulse Generator

Courtesy of BMW OF NORTH AMERICA, INC.

Remove pulse generator.

Installation:

Check sealing ring for possible damage, replace if necessary.

NOTE: Interrogate fault memory of DME control unit.

Rectify faults.

Now clear the fault memory.
