11 36 575 Replacing solenoid valve for exhaust side on VANOS adjustment unit

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 6 420

Necessary preliminary tasks:

Read out fault memory of DME control unit
Check stored fault messages
Switch off ignition

E85 only:

Remove fluid tank for windshield washer system

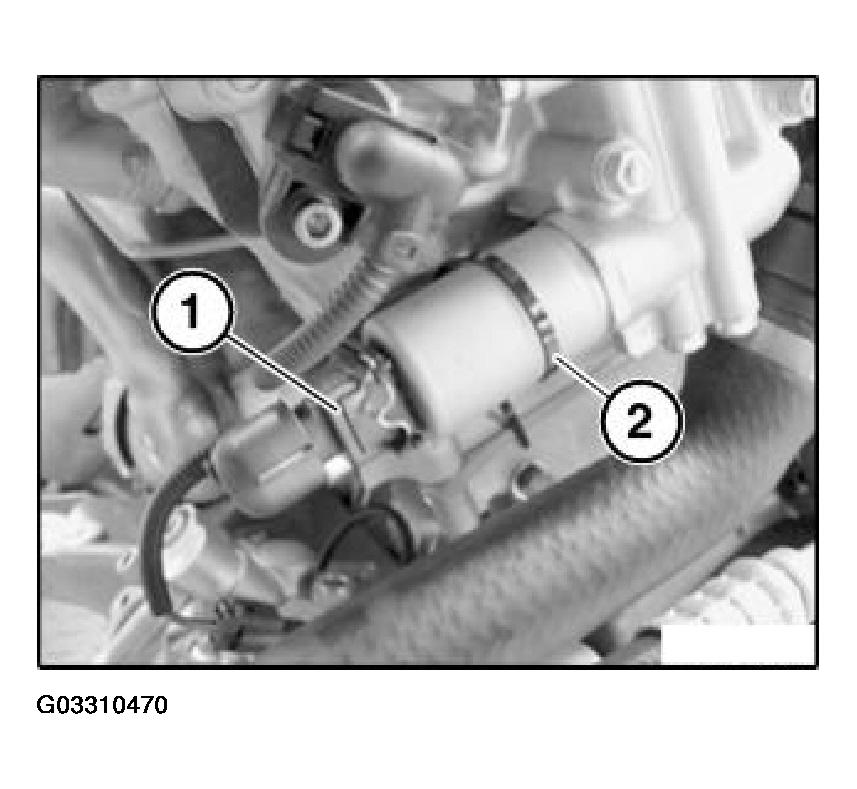

Unlock plug (1) and remove.

Fig 1: Removing Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Cut through cable tie (2).

NOTE: Once it has been removed, oil drips from the solenoid valve.
Have a cleaning cloth ready.
Make sure no oil drips onto the belt drive. Remove any remnants of oil immediately with cleaning cloth.

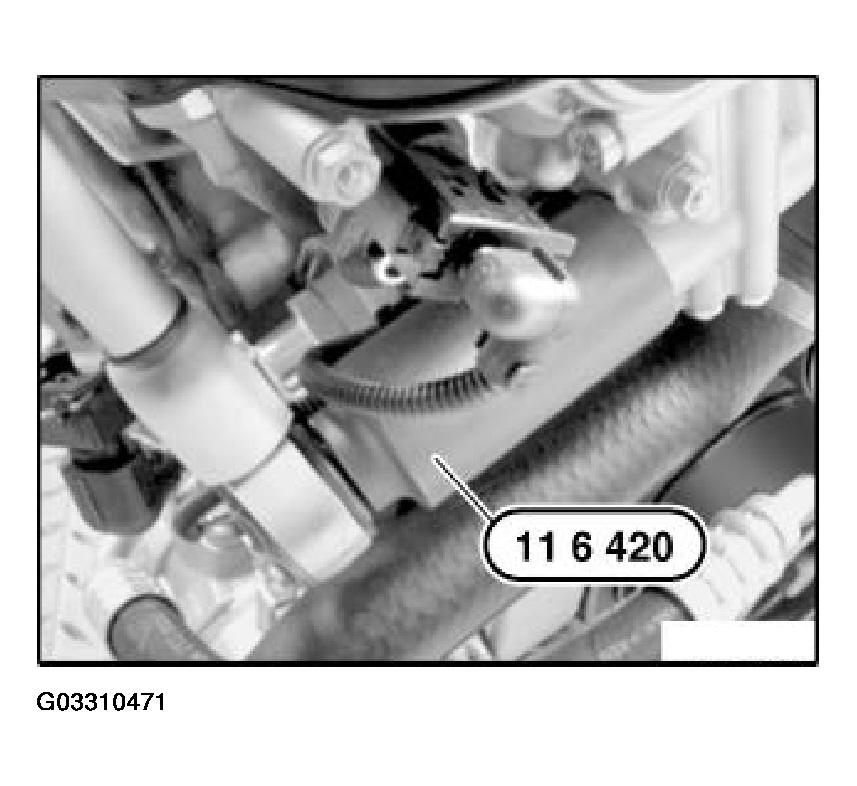

Release solenoid valve with special tool n 6 420.

Fig 2: Releasing Solenoid Valve With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque 11 36 1AZ. Refer to ENGINE - TIGHTENING TORQUES .

Now clear the fault memory.
