11 36 570 Replacing solenoid valve for inlet side on VANOS adjustment unit

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

32 2 110

Necessary preliminary tasks:

Read out fault memory of DME control unit
Check stored fault messages
Switch off ignition

Unlock hose (1) and detach.

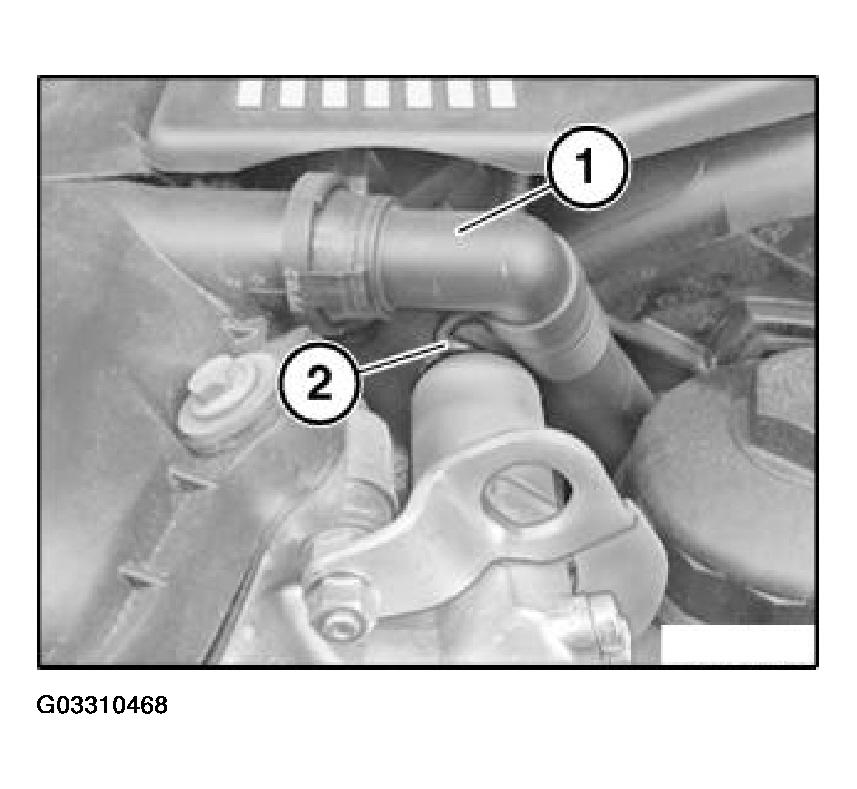

Fig 1: Unlocking Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug (2) and remove.

NOTE: Once it has been removed, oil drips from the solenoid valve.
Have a cleaning cloth ready.
Make sure no oil drips onto the belt drive. Remove any remnants of oil immediately with cleaning cloth.
Do not damage oil line when releasing solenoid valve. Release solenoid valve with special tool 32 2 110.

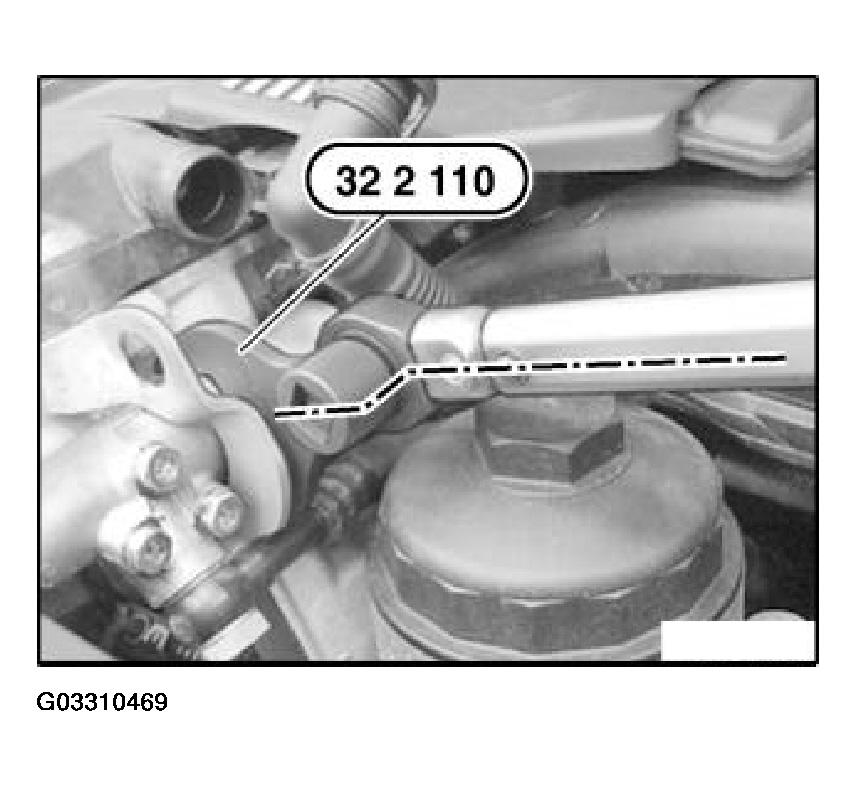

Fig 2: Releasing Solenoid Valve With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Tightening torque 11 36 1AZ. Refer to ENGINE - TIGHTENING TORQUES .

Now clear the fault memory.
