11 36 010 Removing and installing or replacing double VANOS adjustment unit (M52TU / M54 / M56): Removal:

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Removal of double VANOS adjustment unit is described separately from installation. Assembly sequence for removal and installation is different.

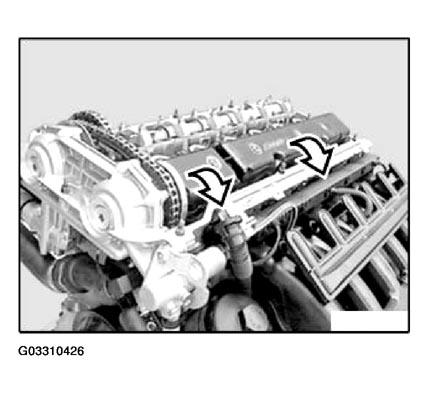

Detach plastic cover for inlet camshaft.

Fig 1: Detaching Plastic Cover For Inlet Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

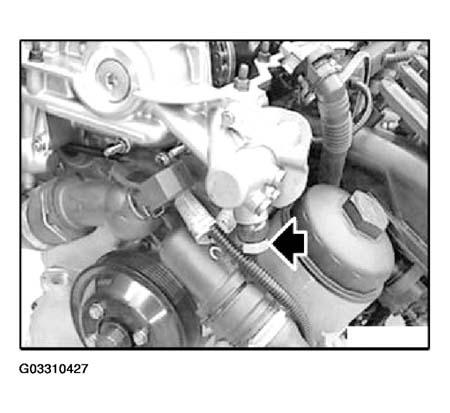

Unscrew oil pressure pipe.

Fig 2: Unscrewing Oil Pressure Pipe

Courtesy of BMW OF NORTH AMERICA, INC.

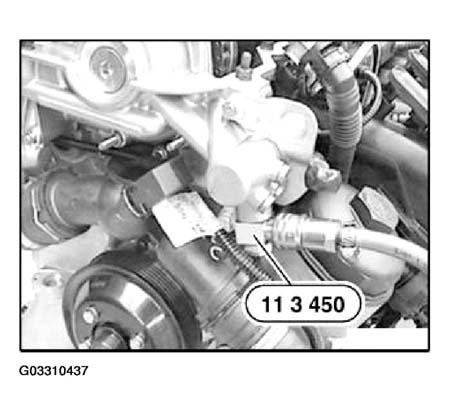

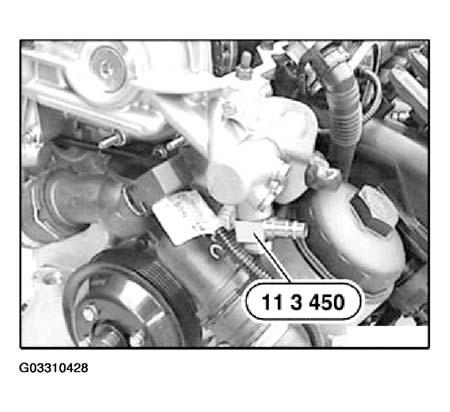

Mount special tool 11 3 450 with banjo bolt of oil pressure line.

Fig 3: Mounting Special Tool 11 With Banjo Bolt Of Oil Pressure Line

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Cover double VANOS adjustment unit.

When the compressed air supply is connected, several drops of oil are sprayed out of the bore.

Fig 4: Covering Double VANOS Adjustment Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Connect compressed air (2 to 8 bar).

Fig 5: Connecting Compressed Air

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: When the engine is switched off, it is possible that the camshafts are not in their initial positions. With the compressed air supply connected, rotate the engine to return the camshafts to their initial positions.

With compressed air supply connected, crank engine at least two revolutions in direction of rotation until cam tips on inlet and exhaust camshafts on 1st cylinder face each other.

Fig 6: Identifying Camshafts Positions

Courtesy of BMW OF NORTH AMERICA, INC.

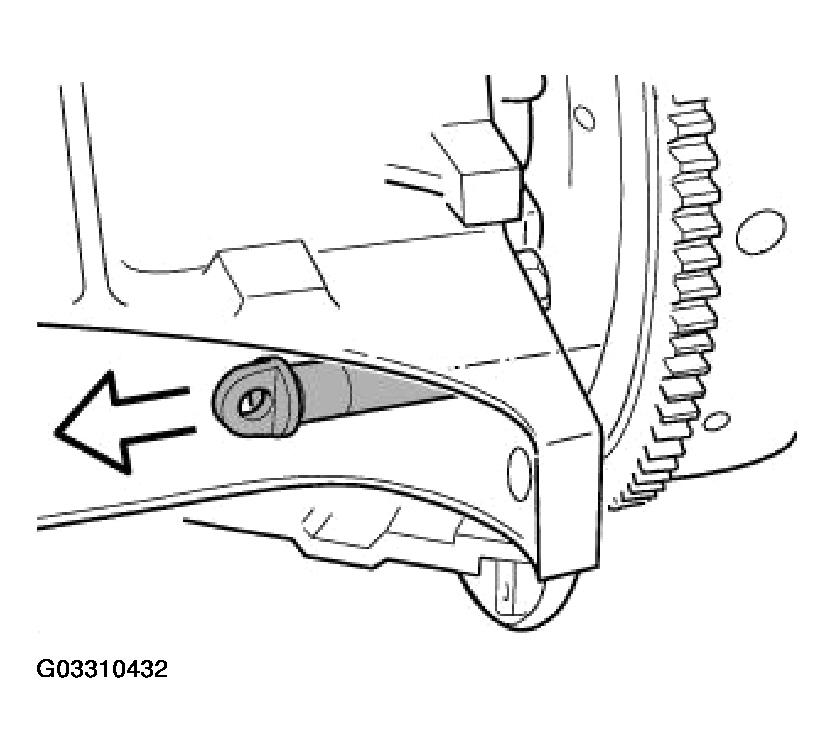

Pull dust guard out of the special tool bore.

Fig 7: Pulling Dust Guard Out Of Special Tool Bore

Courtesy of BMW OF NORTH AMERICA, INC.

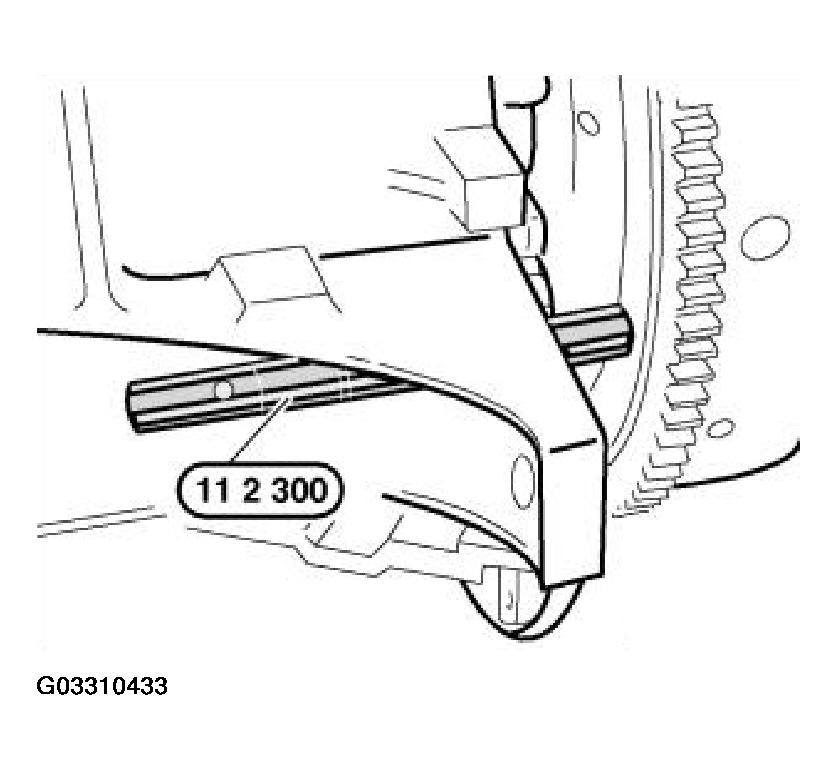

Secure crankshaft in firing TDC position with special tool 11 2 300.

Fig 8: Securing Crankshaft

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Remove special tool 11 2 300 before switching on the engine.

Automatic transmissions only:

Illustration does not show automatic transmission.

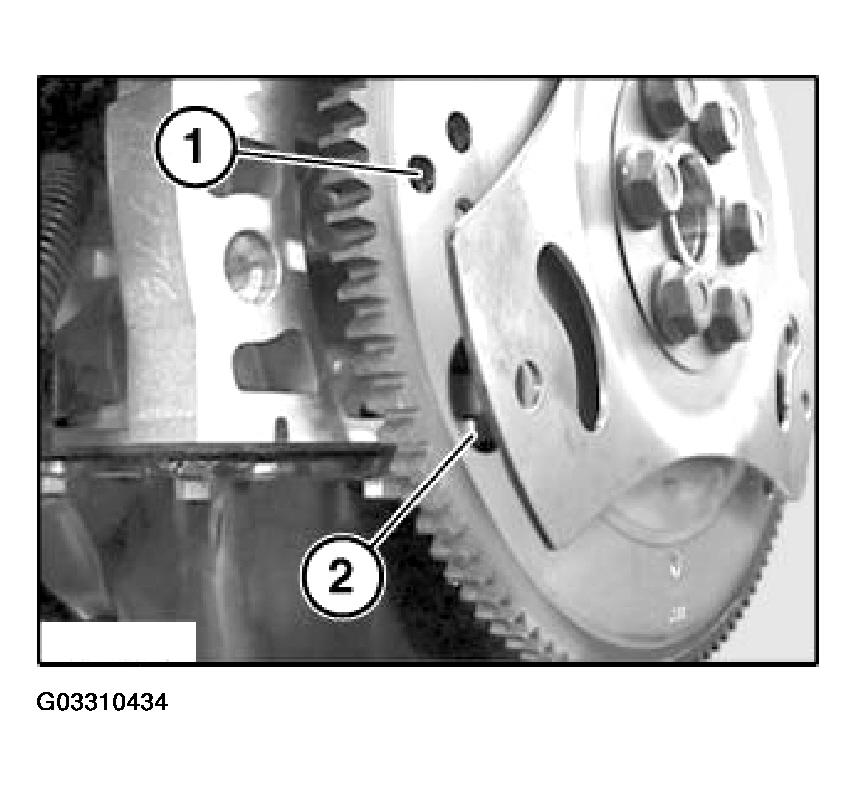

IMPORTANT: On engines with automatic transmissions, there is shortly before the special tool bore (1) a large bore (2) which can be confused with the special tool bore.

If special tool 11 2 300 is secured in the correct bore (1), the engine can no longer be cranked at the central bolt.

Fig 9: Identifying Correct Bore

Courtesy of BMW OF NORTH AMERICA, INC.

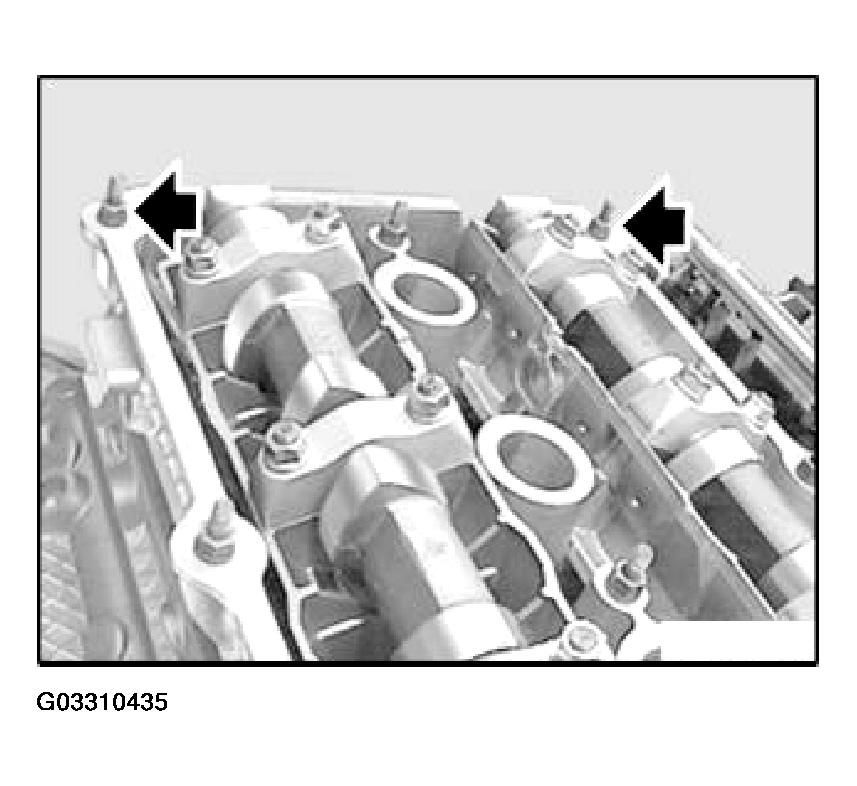

Unscrew studs.

Fig 10: Unscrewing Studs

Courtesy of BMW OF NORTH AMERICA, INC.

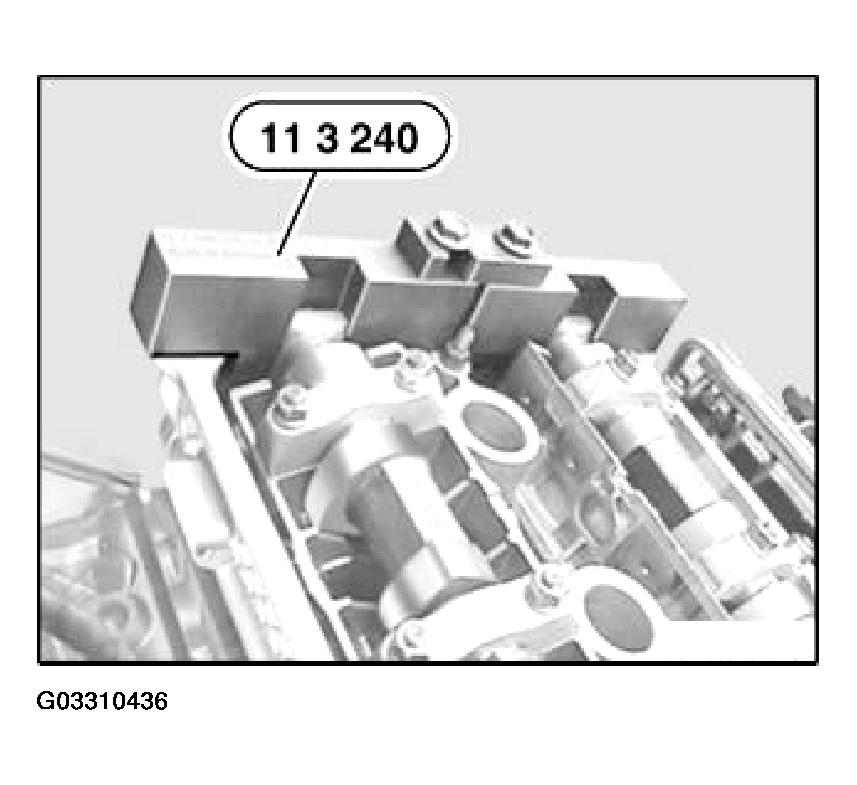

Secure camshafts with special tool 11 3 240.

Fig 11: Securing Camshafts With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Detach compressed air connection.

Fig 12: Detaching Compressed Air Connection

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: special tool 11 3 450 still remains fitted.

IMPORTANT: Oil escapes after screw plugs have been removed. Have cleaning cloths and container ready. Make sure no oil runs onto belt drive. Remove any remnants of oil immediately with cleaning cloth.

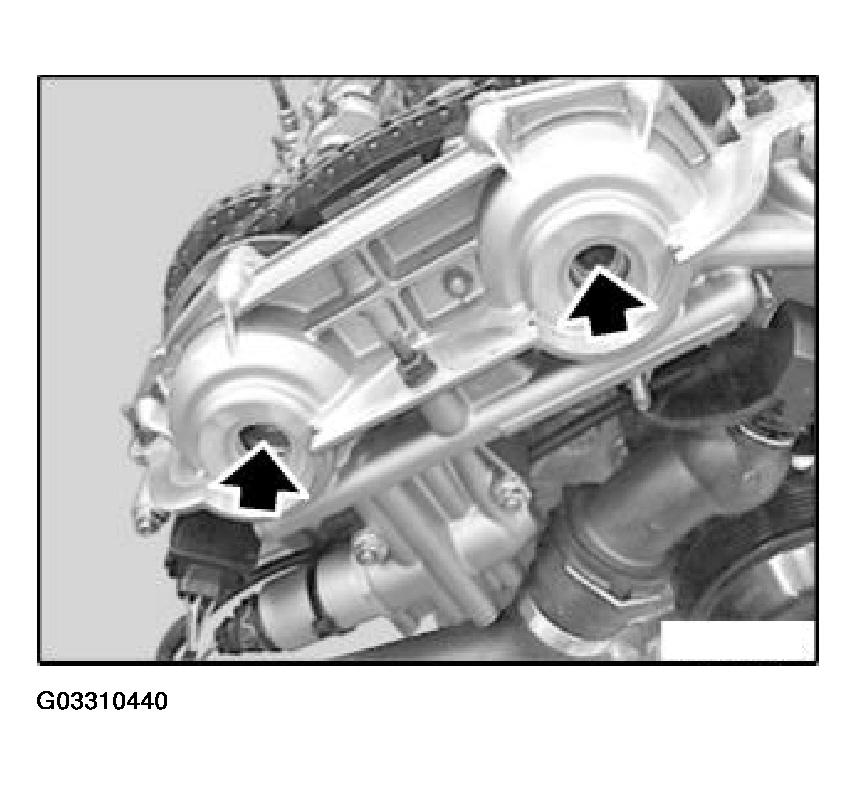

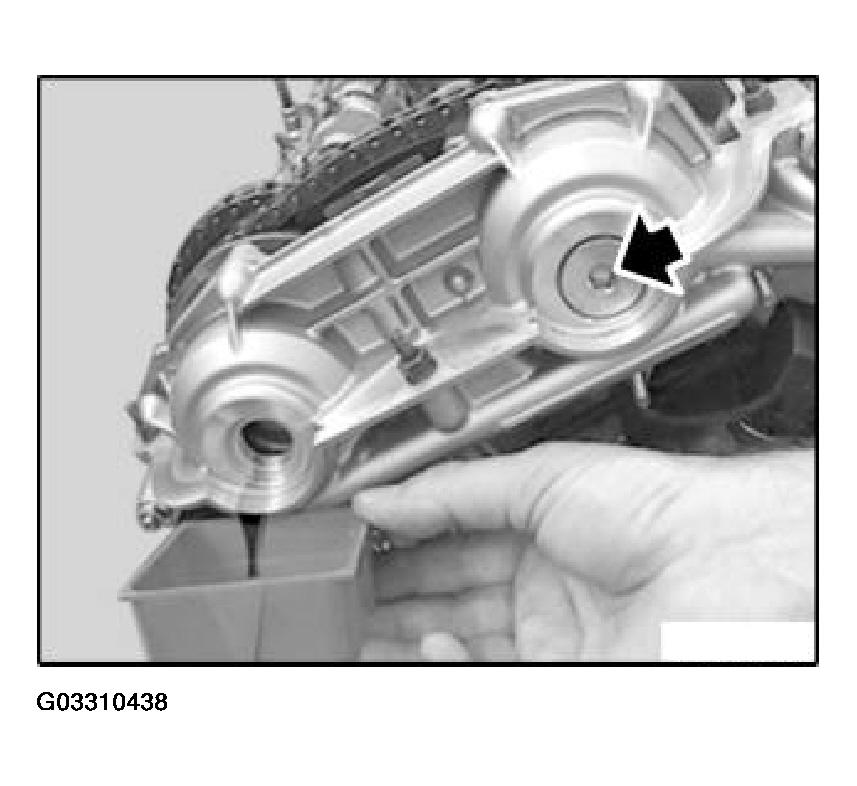

Remove screw plugs, catch escaping oil on inlet and exhaust sides.

Fig 13: Removing Screw Plugs

Courtesy of BMW OF NORTH AMERICA, INC.

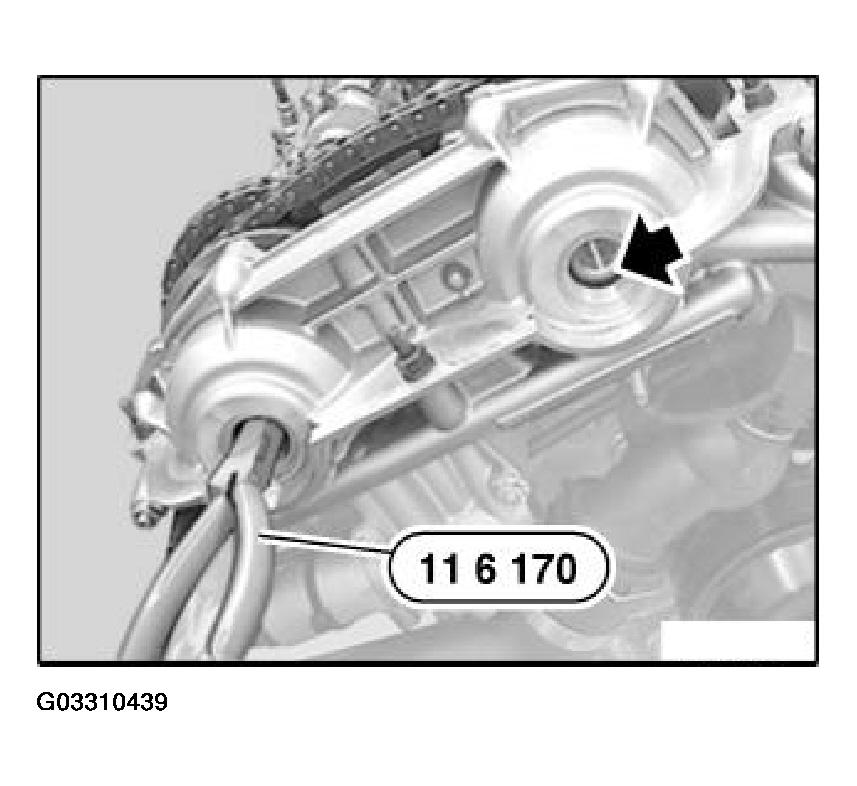

Remove sealing caps with special tool 11 6 170 or with commercially available short flat nose pliers.

Fig 14: Removing Sealing Caps

Courtesy of BMW OF NORTH AMERICA, INC.

E85:

Use commercially available offset flat nose pliers.

IMPORTANT: Left-hand threads.

Release fitting screws on inlet and exhaust sides.

Fig 15: Releasing Fitting Screws On Inlet And Exhaust Sides

Courtesy of BMW OF NORTH AMERICA, INC.

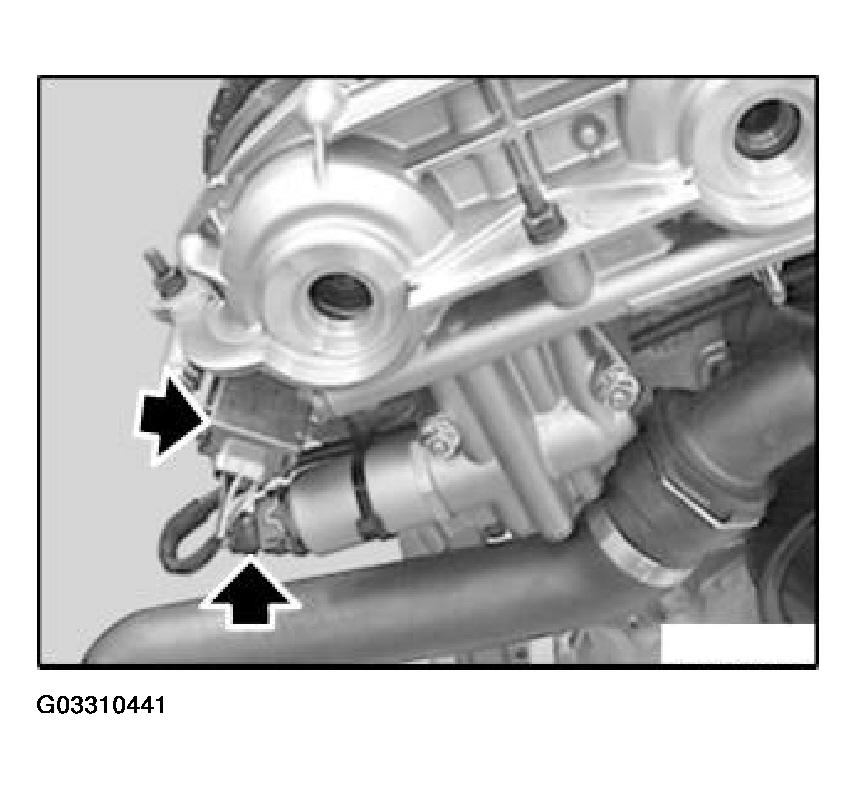

Detach plug connections from camshaft sensor and solenoid valves on exhaust and inlet sides.

Fig 16: Detaching Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.

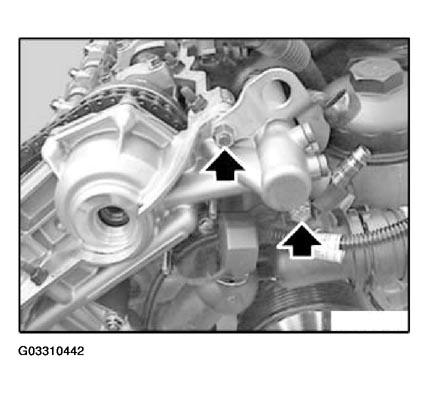

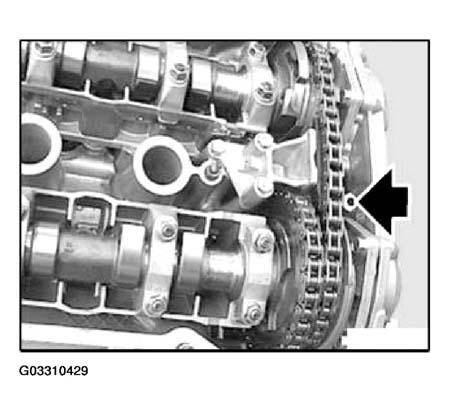

Unscrew suspension eye.

Fig 17: Unscrewing Suspension Eye

Courtesy of BMW OF NORTH AMERICA, INC.

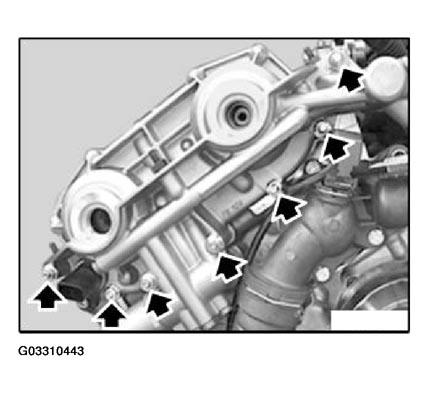

Release nuts and remove double VANOS adjustment unit.

Fig 18: Removing Double VANOS Adjustment Unit

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: With double VANOS adjustment unit removed: Do not crank engine.

The toothed shaft on the inlet side may move and slip out of the spline teeth, the inlet camshaft is thus no longer non-positively connected and the valves could rest on the piston.
