11 14 110 Removing and installing lower timing case cover (M52 / S52 / M52TU / M54)

Remove VANOS adjustment unit. Refer to 11 36 010 REMOVING AND INSTALLING OR REPLACING DOUBLE VANOS ADJUSTMENT UNIT (M52TU / M54 / M56) .

Remove coolant thermostat. Refer to 11 53 000 REMOVING AND INSTALLING/REPLACING COOLANT THERMOSTAT (M52TU / M54 / M56) .

Remove alternator drive belt and drive belt tensioner.

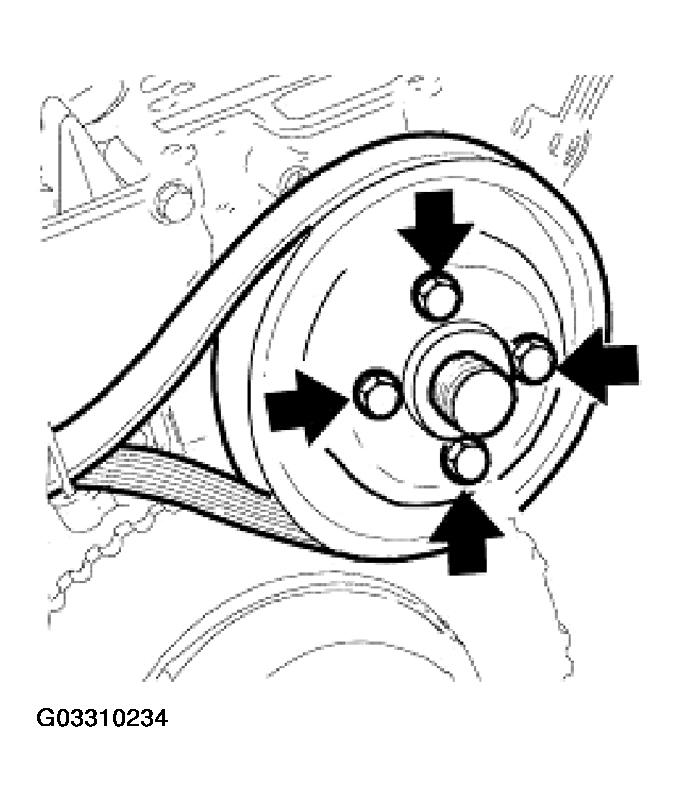

Brace pulley for water pump with drive belt and unfasten screws.

Fig 1: Locating Bolts For Water Pump Pulley

Courtesy of BMW OF NORTH AMERICA, INC.

M52/S52 only

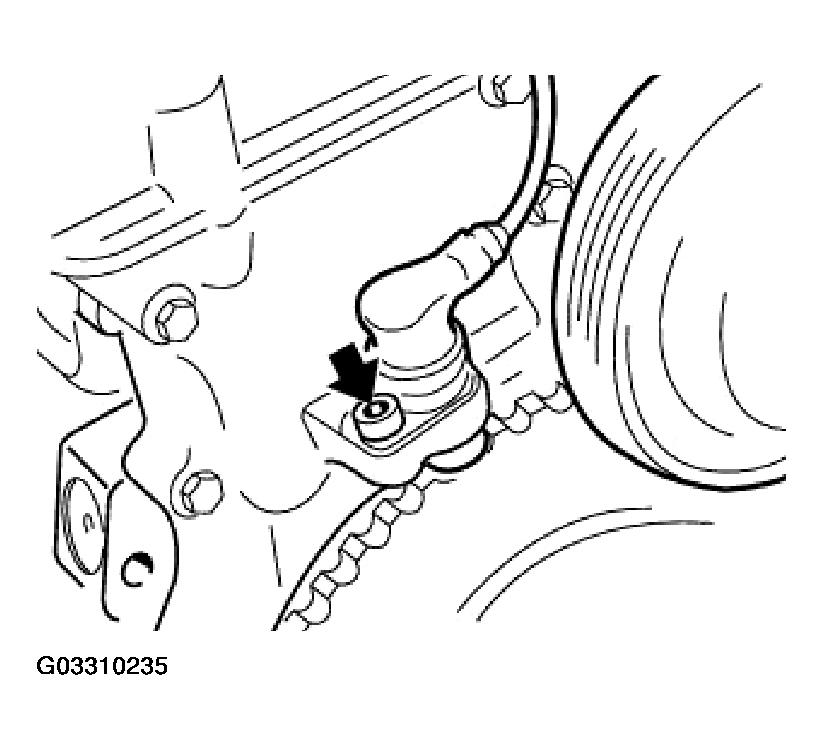

Unfasten engine speed sensor.

Fig 2: Identifying Engine Speed Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Remove vibration damper. Refer to 11 23 010 REMOVING AND INSTALLING OR REPLACING VIBRATION DAMPER (M52TU / M54 / M56) .

Version where vibration damper and hub are two parts: Remove hub for vibration damper.

Remove oil sump. Refer to 11 13 000 REMOVING AND INSTALLING, SEALING OR REPLACING OIL SUMP (M52TU / M54 / M56) .

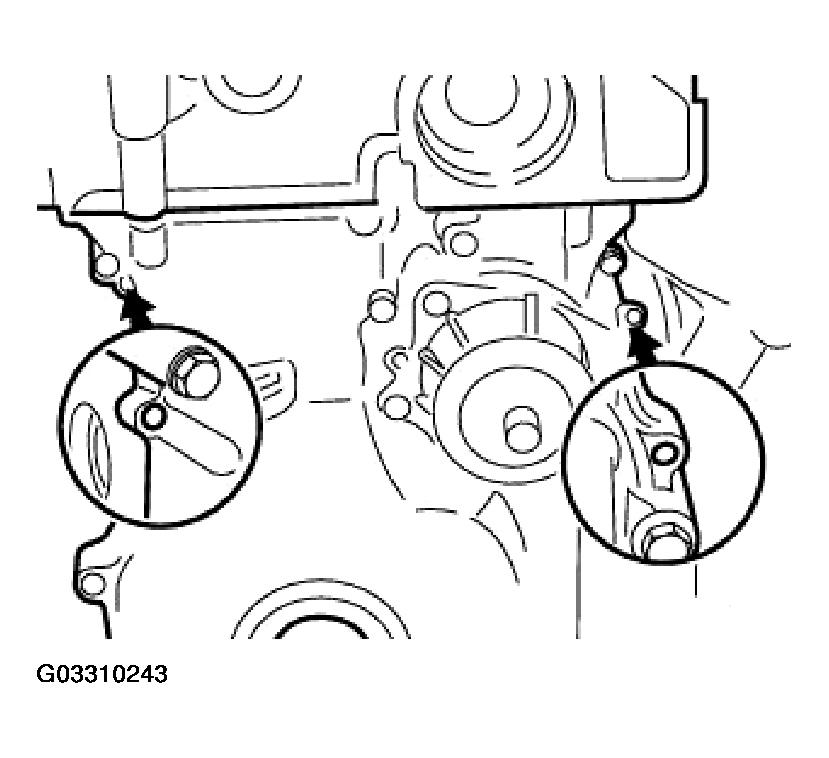

Drive out dowel pins from timing case cover towards rear. (Mandrel diameter less than 5 mm)

Fig 3: Driving Out Dowel Pins From Timing Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

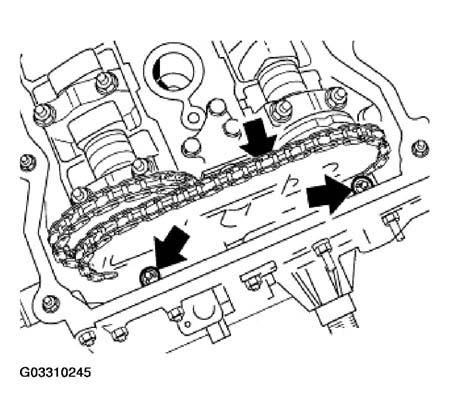

Unscrew timing case cover to cylinder head bolts.

Fig 4: Unscrewing Timing Case Cover To Cylinder Head Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

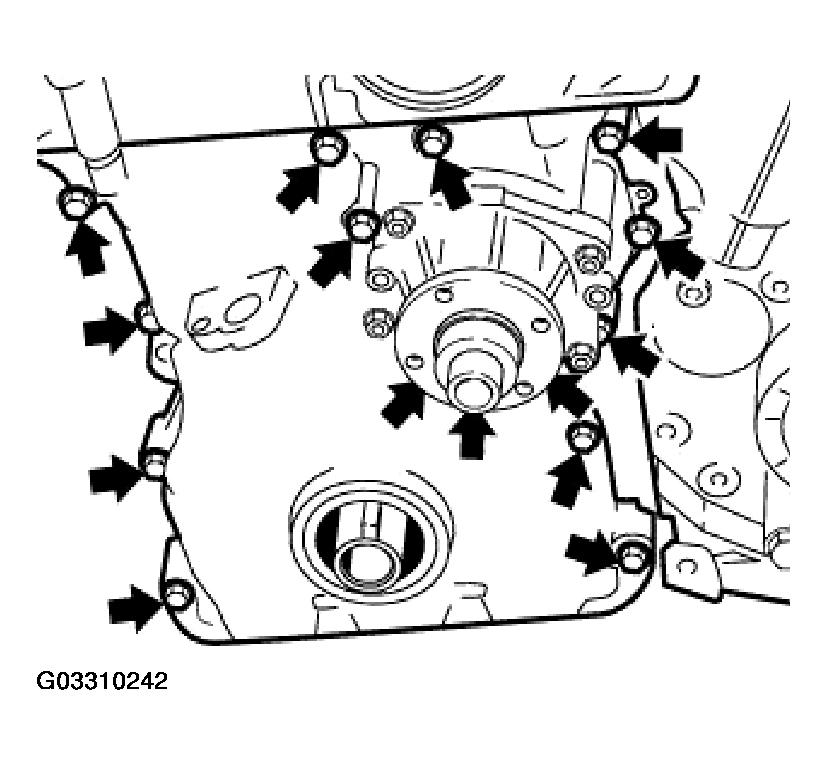

Unfasten screws and remove timing case cover.

Fig 5: Removing Timing Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

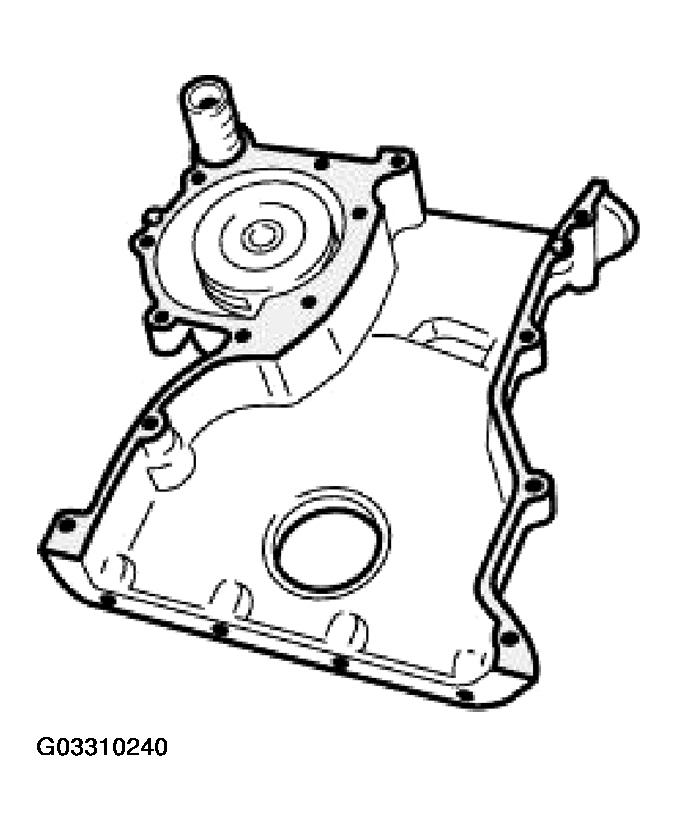

Clean sealing surfaces.

Fig 6: Identifying Sealing Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.

Drive alignment pins into timing case cover until they protrude approx. 2 to 3 mm.

Installation:

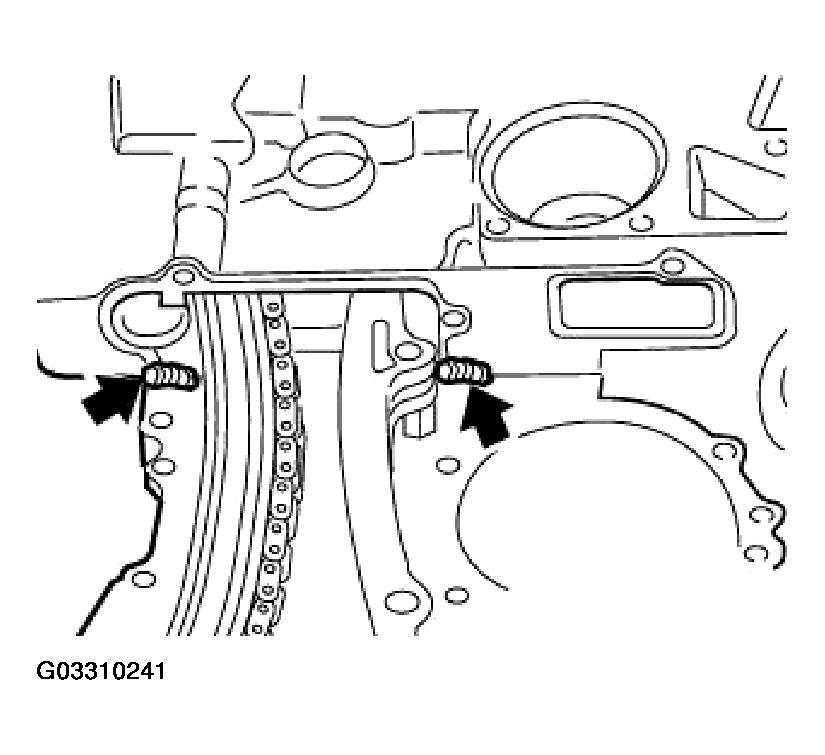

Secure new seals to timing case cover with a little grease.

Fig 7: Identifying Seals

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Sealing faces clean and free of seal debris.

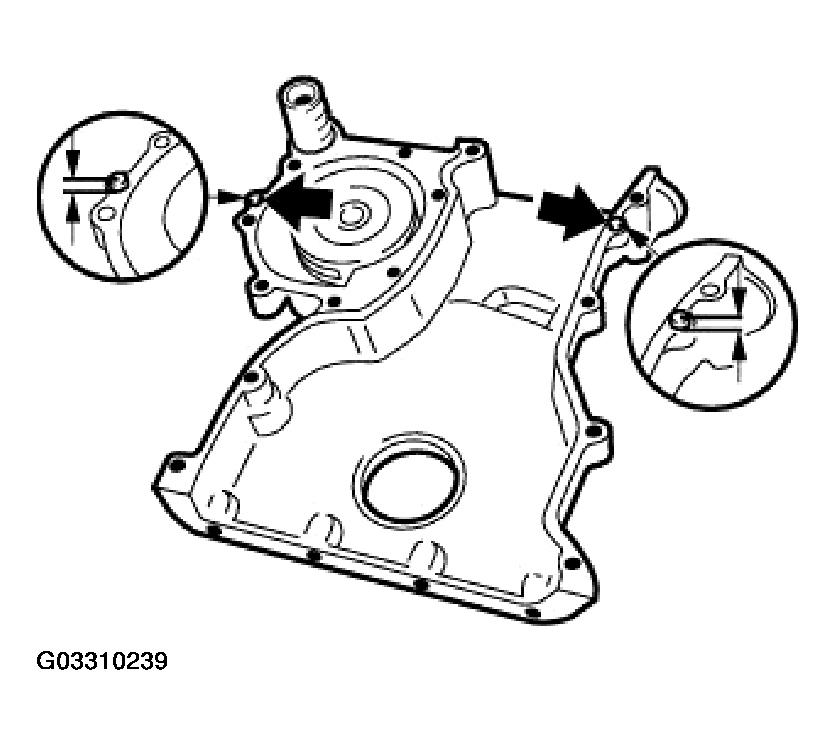

Apply Drei Bond 1209 sealing compound (refer to BMW Parts Service) at following points:

• A bead at the transitions to the cylinder head gasket on the left and right.
• Thinly and evenly to the entire sealing face of the timing case cover to the cylinder head gasket.
  Fig 8: Applying Drei Bond Sealing Compound

  Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install timing case cover, insert all screws and initially tighten to approx. 5 N.m.

Fig 9: Installing Timing Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Drive in dowel pins from front until flush.

Fig 10: Driving In Dowel Pins

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

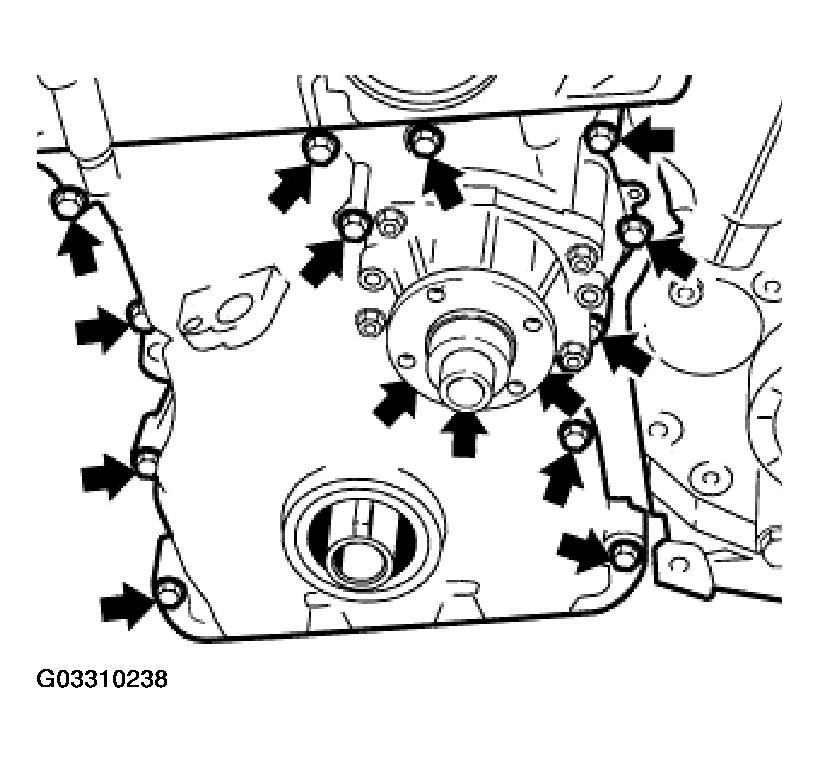

Fully tighten all screws in alternate sequence.

Fig 11: Tightening Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque, 11 14 1AZ. Refer to ENGINE - TIGHTENING TORQUES .

Insert screws, tighten screw connection for timing case cover to cylinder head.

Fig 12: Tightening Screw Connection For Timing Case Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Replace radial seal in lower timing case cover. Refer to 11 14 141 REPLACING RADIAL SEAL IN LOWER TIMING CASE COVER .

Assemble engine.
