11 22 513 Replacing roller bearing for dual-mass flywheel
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 21 2 051
- 21 2 052
NOTE:
Flywheel removed!

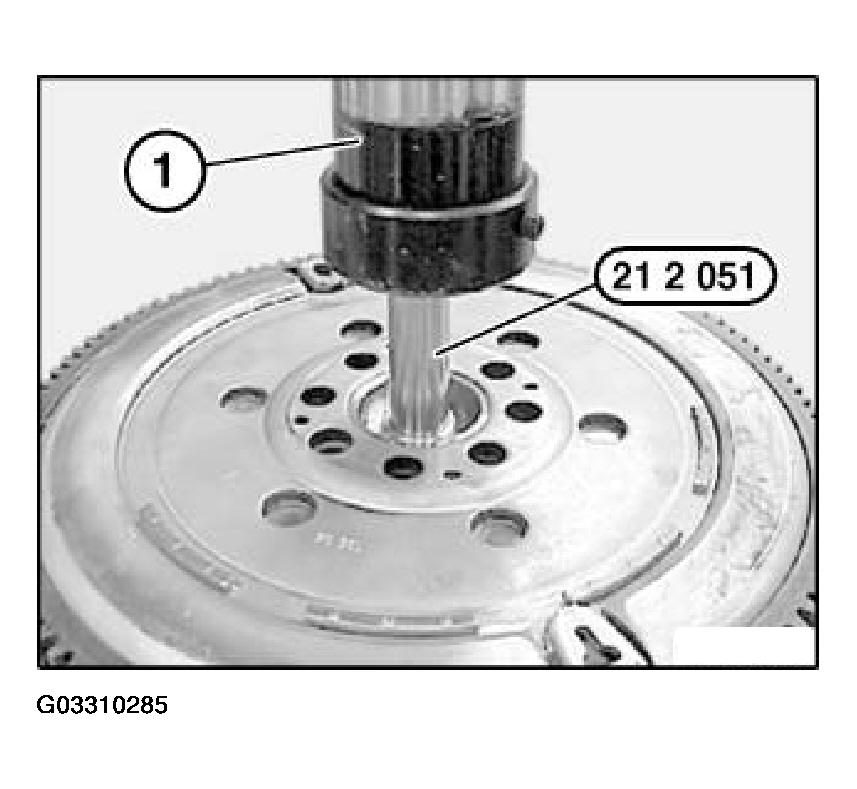

Using hydraulic press (1) and special tool 21 2 051, press out dual-mass flywheel downwards on engine side.
IMPORTANT:
Risk of damage:
Roller bearing must not be driven out.

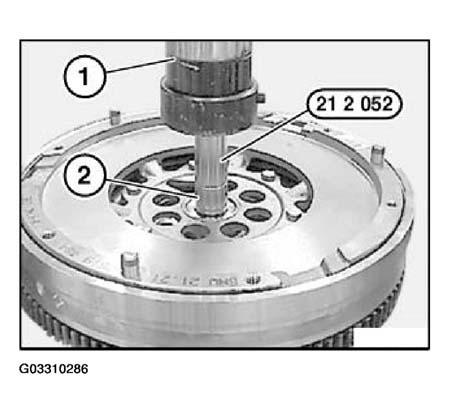

Push roller bearing (2) onto special tool 21 2 052.
Using hydraulic press (1), press roller bearing into dual-mass flywheel as far as it will go on clutch side.
IMPORTANT:
Risk of damage:
Observe press-in instruction:
- Roller bearing must not be driven in.
- Roller bearing mounting force/travel monitored:
Min. 2000N 1 mm before end of pressing in.
Max. 15000N during entire press-in procedure.
