11 00 039 Checking compression of all cylinders (M60 / M62 / M73 / S62 / M54)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW X5, 2006 BMW X3, 2005 BMW X5, 2005 BMW X3, and 2004 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

110 224
110 226

IMPORTANT: High tension - mortal danger!

Cut off power supply to ignition coils (disconnect plug connection at DME control unit).

Necessary preliminary tasks:

Connect charger or a second battery.
Read out fault memory of DME control unit
Pull fuel pump relay or fuel pump fuse.
Start engine and allow residual fuel to drain out (pressure reduction).
Remove all spark plugs.

IMPORTANT: Check Schrader valve on special tool 11 0 226 for tight fit.

Screw special tool 11 0 226 by hand into spark plug thread and connect special tool 11 0 0224.

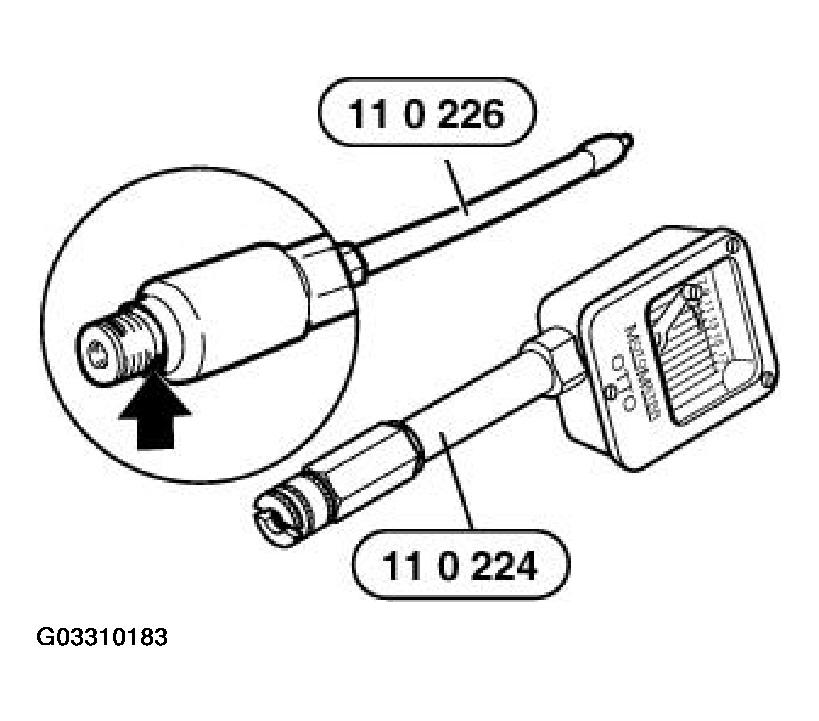

Fig 1: Identifying Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check that sealing ring is in perfect condition (see arrow).

Depress accelerator and actuate starter until compression stops rising.

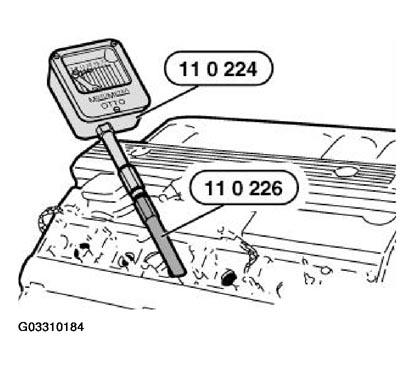

Fig 2: Checking Compression

Courtesy of BMW OF NORTH AMERICA, INC.

Compression pressure, refer to ENGINE - TECHNICAL DATA .

Assemble engine.

Now clear the fault memory.
